This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
Brand:
heritagetrucksolution.COMModel No.:
CL5251TQZZ5Minimum Order Quantity:
1 UnitPrice:
USD65500Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

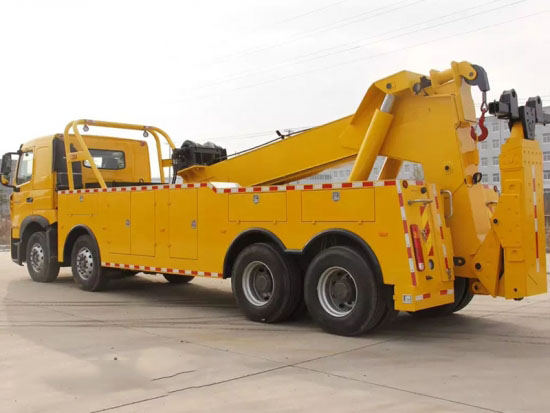

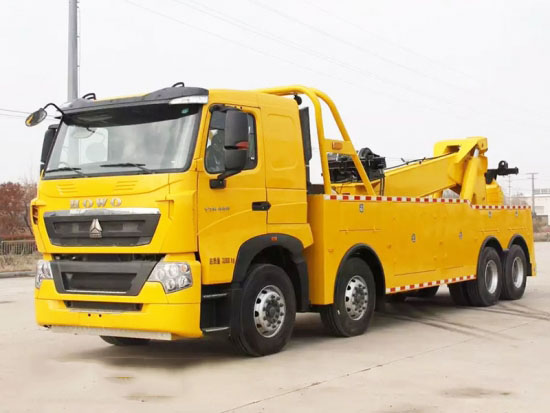

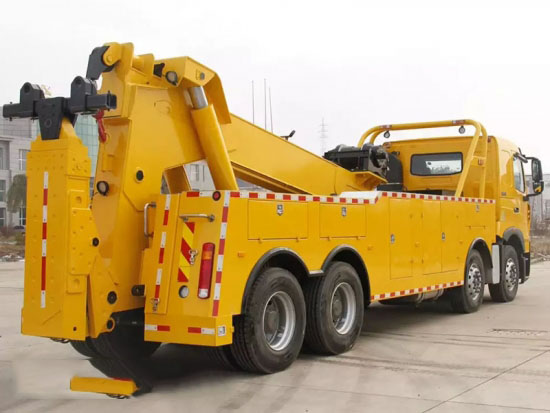

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc25 ton howo heavy duty integrated line of wrecker recovery truck
The tow truck wrecker is also called road wrecker truck, tow truck wrecker, wrecker towing truck, wrecker, road block removal truck, breakdown truck, tow truck, recovery truck, etc.
Our tow truck consists of the chassis, hoisting equipment,truck tow hook, tow truck winch, tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes.
Quick Details
| Chassis Brand | HOWO |
|
Max Lifting Capacity of Under Lift |
25000kg |
|
Max towing capacity of Under Lift |
60000kg |
|
Max Pulling Force of Winch |
25000kg |
|
Max Lifting Capacity of Boom |
25000kg |
Applications
Wrecker tow truck is used to move disabled, improperly parked, impounded, or otherwise indisposed motor vehicles. This may involve recovering a vehicle damaged in an accident, returning one to a drivable surface in a mishap or inclement weather, or towing or transporting one via flatbed to a repair shop or other location.
|
|
|
|
A pair of training wheels makes towing working easily when wheels are damaged |
Extra Strength Winch with 21 meters steel cable |
|
|
|
|
Manual joystick with instructions on side body of the truck makes control work easily |
The tire belt keep car stability on wrecker truck |
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Truck Specification |
||
|
Chassis model |
CL5251TQZZ5 |
|
|
Cab |
HOWO HW76cab, with power steering. Electronic flameout，left hand drive |
|
|
Driving Type |
8*4 left hand drive |
|
|
Max Speed (km/h) |
95 |
|
|
Overall dimension（mm） |
11120×2500×3695 |
|
|
Mass in working order（ kg） |
33235 |
|
|
GVW（ kg） |
43000 |
|
|
Tank Capacity (L) |
400 |
|
|
Wheelbase（mm） |
1850+4600+1350 |
|
|
F/R track base（mm） |
2022/1830 |
|
|
F/R overhang（mm） |
1500/1000 |
|
|
Approach/Departure Angel |
14/18 |
|
|
Tire |
80R22.5 |
|
|
Clutch |
Single-plate dry diaphragm spring clutch |
|
|
Steering |
Hydraulic steering with power assistance |
|
|
Gear box |
Manual Synchromesh HW19710, 10 SPEED FORWARD +2REVERSE |
|
|
Bridge |
Front axle |
HF7 |
|
Rear axle |
ST16 |
|
|
Enging |
Model |
WD615.47 |
|
Horse power |
370HP |
|
|
Displacement |
9726L |
|
|
Braking system |
Service Brake |
Compressed air brake |
|
Park Brake |
Spring energy |
|
|
Eletric system |
24v |
|
|
Upper-Body specification |
||
|

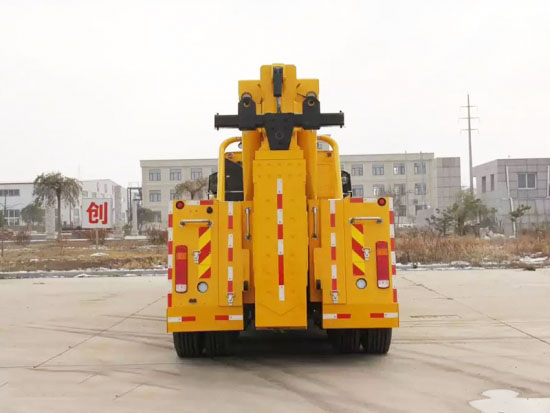

Hydraulic Under Lift at Rear |
||
|
Fully Retracted Lifting weight(kg) |
25000 |
|
|
Fully Extend Lifting Weight(kg) |
9500 |
|
|
Max. Rated towing weight(kg) |
60000 |
|
|
Max effective length of boom (mm) |
1460-3599 |
|
|
Extension traveling of boom (mm) |
1639 |
|
|
Boom structure |
||
|
Maximum lifting height(mm) |
6500 |
|
|
Fully Retracted Lifting weight(kg) |
25000 |
|
|
Fully Extended Lifting weight(kg) |
8000 |
|
|
Extension traveling of hoisting boom(mm) |
3300 |
|
|
Hydraulic winches & steel cables |
||
|
Type: |
Planetary type |
|
|
Quantity (set) |
2 |
|
|
Max. Pulling power of winch (kN) |
100 |
|
|
Length of steel cable(m) |
60 |
|
|
Speed of winch (m/min) |
5 |
|
|
Diameter of winch(cm) |
0.22 |
|
|
Hydraulic Outriggers |
||
|
Quantity |
2 |
|
|
type |
in-built with power elevation &extension |
|
|
Power take off |
||
|
Type |
PTO drive from transmission |
|
|
Wrecker Operation |
||
|
Description |
Panel board comprising joysticks and hydraulic meters installed in a suitable place out of crew cabin. |
|
|
Hydraulic System |
||
|
Description |
uitable capacity gear pumps for boom movement, telescoping cylinder, power steering and control valves & control system shall be with adequate size oil reservoir, integral oil cooler, valves etc. |
|
|
Safety Device |
||
|
Auto brake for winch |
Automatic safe brake in case winch / Engine fail. |
|
|
Hydraulic valves |
Necessary hydraulic pressure relief & lock valve/ valves |
|
Wrecker truck basically is refitted from the loading goods second class chassis, according to the wrecker truck's structure, it can bedivided into tow, loading, lifting, rescue (single arm type and arms type) wrecker truck.
Wrecker truck, full name is road wrecker truck, is also called road rescue wrecker truck or towing truck. It has multiple functions such as lifting, pulled and lift traction. Wrecker truck is mainly used in road, city of peccancy vehicles and rescue, etc.
Wrecker truck basically is refitted from the loading goods second class chassis, according to the wrecker truck's structure, it can be divided into towing, loading, lifting, rescue (single arm type and arms type) wrecker truck. It has multiple functions such as lifting, pulled and lift traction. Wrecker truck is mainly used in road, city of peccancy vehicles and rescue, etc.
The basic equipment includes automatic clamping arrangement for small truck, boom, winch, wheel lift devices, construction alarm, rear working lighting, box for washing hands, U shape device for holding tires, 5 sets supporting forks, supporting fork stand, 2 pcs chain and hook, accessory lightings assembly, imported hydraulic pressure components, multi parts compartment truck body, uniform control devices on both sides, etc.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
Hanging off the body type that is linked to the arm and arm into one, through the lifting, winch traction and other auxiliary operations.
