Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcHOWO 50 ton heavy duty wrecker towing truck
The tow truck wrecker is also called road wrecker truck, tow truck wrecker, wrecker towing truck, wrecker, road block removal truck, breakdown truck, tow truck, recovery truck, etc.
Our tow truck consists of the chassis, hoisting equipment,truck tow hook, tow truck winch, tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes.
Quick Details
|
Chassis Brand |
HOWO |
|
Max Lifting Capacity of Under Lift |
25000kg |
|
Max Towing capacity of under Lift |
50000kg |
|
Max Pulling Force of Winch |
50000kg |
| Max Lifting Capacity of Boom | 50000kg |
Applications
Wrecker tow truck is used to move disabled, improperly parked, impounded, or otherwise indisposed motor vehicles. This may involve recovering a vehicle damaged in an accident, returning one to a drivable surface in a mishap or inclement weather, or towing or transporting one via flatbed to a repair shop or other location.
Competitive Advantages
|
|
|
|
A pair of training wheels makes towing working easily when wheels are damaged |
Extra Strength Winch with 21 meters steel cable |
|
|
|
|
Manual joystick with instructions on side body of the truck makes control work easily |
The tire belt keep car stability on wrecker truck |
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Truck Specification |
|||
|
Truck model |
CLW5310TQZZ5 |
||
|
Cab |
Sinotruck HOWO HW76 cabin ,, with power steering., with a/c，right hand drive |
||
|
Driving Type |
8*4 |
||
|
Max Speed (km/h) |
90 |
||
|
Overall dimension（mm） |
10685*2500＊3460 |
||
|
Mass in working order（ kg） |
19525 |
||
|
GVW（ kg） |
31000 |
||
|
Wheelbase（mm） |
1800+4600+1350 |
||
|
F/R track base（mm） |
2022/1830 |
||
|
F/R overhang（mm） |
1500/880 |
||
|
Approach/Departure Angel |
16/10 |
||
|
Tire |
12.00R20(10+1) |
||
|
Clutch |
Single plate friction type with air booster system |
||
|
Steering |
Power assisted steering. |
||
|
Gear box |
Manual Synchromesh HW19710, 10 SPEED FORWARD +2REVERSE |
||
|
Bridge |
Front axle |
HF9 |
|
|
Rear axle |
HC16 |
||
|
Enging |
Model |
WD615.47 |
|
|
Type |
cylinder water cooled diesel engine to be fitted with diesel particulate filter in-built. |
||
|
Exhaust（ml） |
9726 |
||
|
Max output power/rotate speed (hp /rpm ) |
371/2200 |
||
|
Max torque/rotate speed(N.m/rpm) |
1500/1100-1600 |
||
|
Braking system |
Service Brake |
Air over hydraulic dual circuit system |
|
|
Park Brake |
Mechanical, internal expanding acting on transfer output shaf |
||
|
Eletric system |
24v |
||
|
Upper-Body specification |
|||
|
Wrecker Type |
Hydraulic operated 3 telescope boom |
||
|
Boom structure |
Retracted - 50,000 kg |
||
|
Extended - 6,500 kg |
|||
|
Lifting height：12230mm |
|||
|
power Elevation |
|||
|
Power Extension |
|||
|
Dual Hydraulic Pump |
|||
|
360 degree sheave heads |
|||
|
Hydraulic Under Lift at Rear |
Fully retracted 25000 kg |
||
|
Fully extended 125000 kg |
|||
|
Under Lift- 10° - 15 |
|||
|
Towing capacity :50000kgs |
|||
|
Hydraulic Outriggers |
4 in-built with power elevation & extension. |
||
|
Hydraulic winches & steel cables |
Dual, 25,000 kg x 2-Planetary type Cable Type: Steel cable 60m length ,20mm diameter, |
||
|
Power take off |
PTO drive from transmission |
||
|
Wrecker Operation |
Panel board comprising joysticks and hydraulic meters installed in a suitable place out of crew cabin. |
||
|
Hydraulic System |
Suitable capacity gear pumps for boom movement, telescoping cylinder, power steering and control valves & control system shall be with adequate size oil reservoir, integral oil cooler, valves etc. |
||
|
Safety Device |
|
||
|
Auto brake for winch |
Automatic safe brake in case winch / Engine fail. |
||
|
Hydraulic valves |
Necessary hydraulic pressure relief & lock valve/ valves |
||
Our tow truck consists of the chassis, hoisting equipment,truck tow hook, tow truck winch, tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.

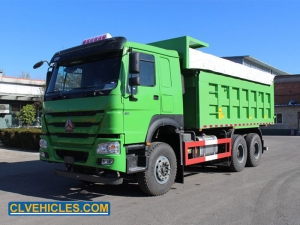

Dump truck is a truck used to convey loose materials like sands, pebbles, soils, building materials, coals, ores, crops, farm products, etc.
Road sweeper rear suction pipeline connect with suction plate

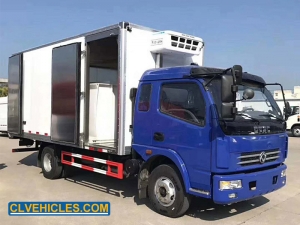

Refrigeration units: domestic or imported refrigeration units, the temperature of cargo box can be as low as -18 degrees.
