Dump truck is a truck used to convey loose materials like sands, pebbles, soils, building materials, coals, ores, crops, farm products, etc.
Brand:
heritagetrucksolution.COMModel No.:
CL3255JM389Minimum Order Quantity:
1 UnitPrice:
USD 54900Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

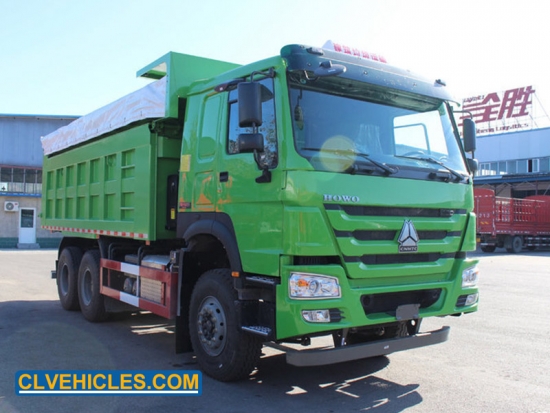

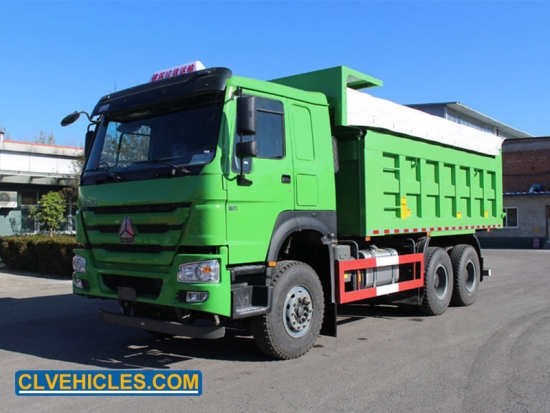

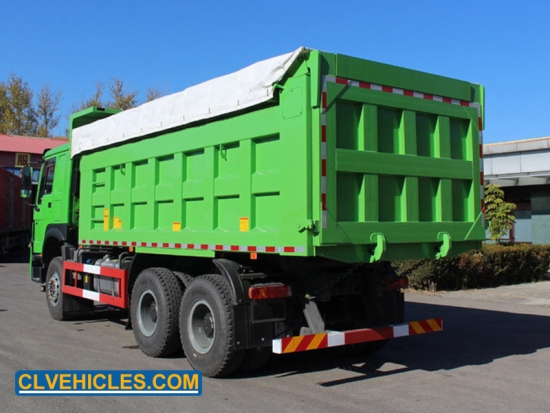

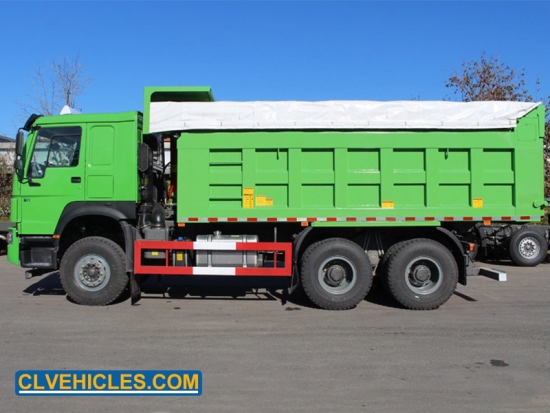

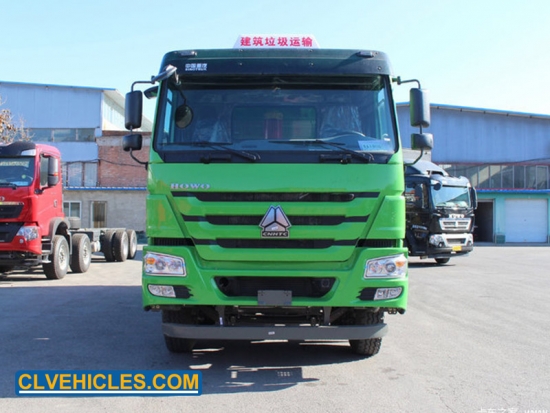

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcHOWO Euro2 6x4 Dump Truck Tipper
Dump truck is a vehicle that unloads goods by itself through hydraulic or mechanical lifting. Also known as dumper truck. It is composed of automobile chassis, hydraulic lifting mechanism, cargo compartment and force taking device.
The dump truck compartment is divided into two kinds: backward tipping and lateral tipping. The motion of piston rod is controlled by the control system. Backward tipping is more common, and the piston rod is pushed to make the compartment tipping, with a few two-way tipping.
Quick Details
|
Chassis Brand |
HOWO |
|
Payload Capacity |
25ton-40ton |
|
Material of Tank |
carbon steel |
|
Horsepower |
371hp
|
| Application |
Construction project, heavy duty transportation |

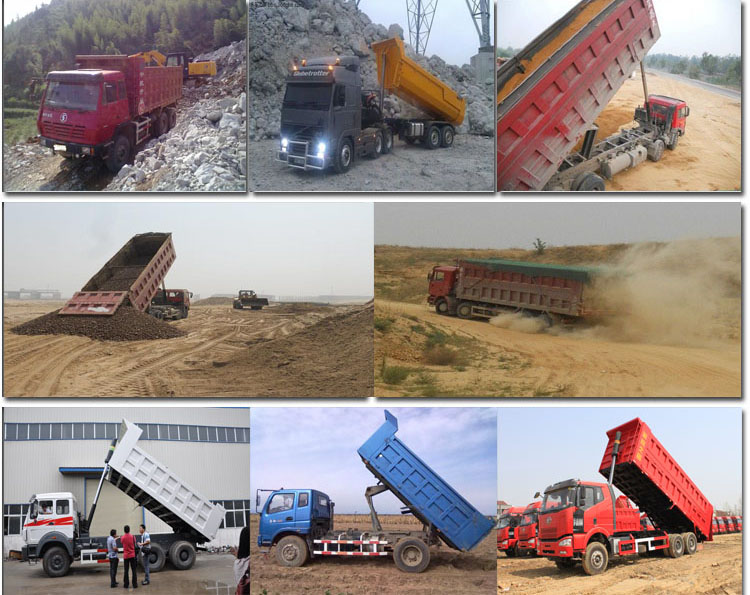

Applications
A transfer dump is a standard dump truck pulling a separate trailer with a movable cargo container, which can also be loaded with construction aggregate — gravel, sand, asphalt, klinkers, snow, wood chips, triple mix, etc.
|
|
|
|
Unique metal support ring welded structure allowing good cylinder stability and high cylinder expanding resistance. |
High strengthen steel compartment. |
|
|
|
| New & modern cab with big space and more comfort, all electrical equipment are controlled by ECO, can be left or right side. |
Driving axle has big loading capacity, each axle is good stability, high safety factor and ability to work under high level pressure |
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Vehicle Description |
|||||
|
Vehicle model |
Tipper truck |
Overall dimensions (mm) |
8500×2500×3500 |
||
|
GVW (t) |
≤50 |
Fact loading capacity(t) |
25-35 |
||
|
Curb weight (kg) |
Appro×12500 |
Max. Speed (km/h) |
75 |
||
|
Chassis Description |
|||||
|
Chassis Model |
SX3255 (F3000 series) |
||||
|
Cab |
One and half row with four-point hydraulic suspension, Electric controlled automatic constant temperature air conditioning, Hydraulic main seat, Right hand drive |
||||
|
Color |
Optional |
||||
|
Allowable person in cab |
3 |
||||
|
Wheel base (mm) |
3775+1400 |
||||
|
Front/Rear track base (mm) |
2000/1850 |
||||
|
Front/Rear overhang (mm) |
1520/1660 |
||||
|
Main frame (mm) |
850×300 (8+7) |
||||
|
Number of axles |
3 |
||||
|
Axle |
Front axle |
MAN 7.5T |
|||
|
Rear axle |
MAN 16T *2 |
||||
|
Traction system |
6*4 |
||||
|
Operation control system |
Power steering |
||||
|
Braking system |
Full air |
||||
|
Electric system (V) |
24 |
||||
|
Clutch |
Ф430 |
||||
|
Gear box + PTO |
10JSD140 + QH50 |
||||
|
Number of gears |
10 speeds + 1 reverse |
||||
|
Fuel tank (L) |
380 |
||||
|
Tire specification |
12.00R20 |
||||
|
Tire quantity |
10+1 |
||||
|
Engine Description |
|||||
|
Engine manufacture |
CHINA WEICHAI ENGINE CO., LTD |
||||
|
Engine model |
WD615.47 |
||||
|
Engine type |
Water cooling, four stroke, brake with exhaust valve, direct injection, supercharged and mid-cooling |
||||
|
Emission standard |
Euro 2 |
||||
|
Exhaust (ml) |
11596 |
||||
|
Max. output power (kw) |
273 |
||||
|
Max. horse power (hp) |
371 |
||||
|
Rated speed (rpm) |
2200 |
||||
|
Max. torque/ speed (N.m / rpm) |
1390 / 1000-1400 |
||||
|
Up-parts Description |
|||||
|

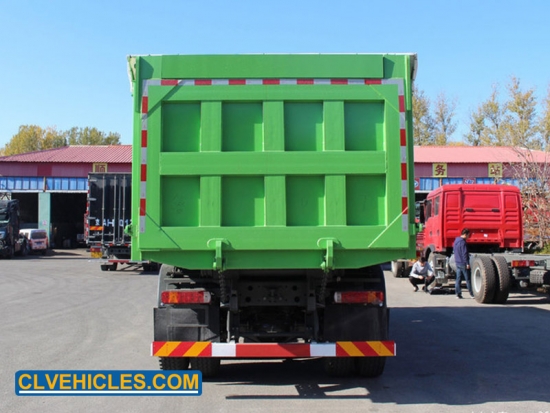

Tipper box dimension (mm) |
5600×2300×1600 |
||||
|
Tipper box type |
Rectangle type with reinforcing rib |
||||
|
Material |
Q345 carbon steel |
||||
|
Thickness of side/bottom plate (mm) |
8/ 10 |
||||
|
Door open way |
Rear single open |
||||
|
Hydraulic ram for dump |
Front set φ180mm |
||||
|
Dumping gear support |
4 |
||||
|
Rotating shaft |
Through type |
||||
|
Working Condition: |
1、Altitude: 0-4500m 2、Temperature: -350C~+450C 3、Relative humidity: 80% 4、Wind force: ≤8 degree |
||||
These trucks can be used in construction of large industrial structures and hydraulic facilities, in construction of highway systems as well as in technological departments of the enterprises of processing industry.
Greatly save time and labor for unloading. Shorten transportation cycle and improve production efficiency.
The advanced hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency,the whole truck structure has characteristics lower center of gravity,with higher security when lifting the cargo body.
Good cargo body structure, high rigidity, high loading capacity. Good sealing structure has the better sealing effect. Lower fuel consumption.
All parts are well-maintenance, original. can be inspected. Low working hours, original paint, cheap and high quality. Spare parts available, best working machine for you
Shacman designed mature dumper truck chassis, rebuilding dump special device, easy loading and fast unloading.High efficiency, low cost, new technique, low fuel consumption, enduring service life.
