This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
A dump truck is usually installed with a hydraulic motivated open-box bed hinged at the rear. The front of this open-box can be lifted up so that the materials are discharged on the ground behind the truck.
Brand:
heritagetrucksolution.COMModel No.:
CL3251JM385Minimum Order Quantity:
1 UnitPrice:
USD 53800Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

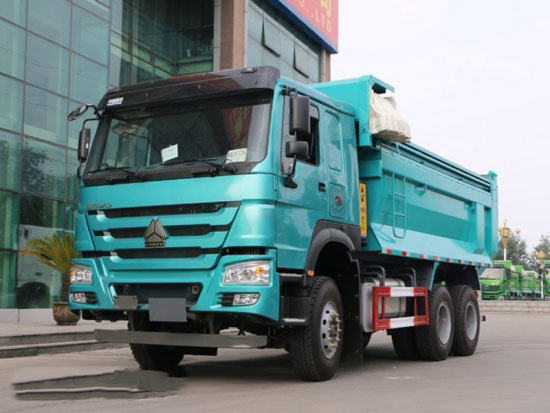

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcHowo 6x4 40ton 371hp U Shape Crago Box Dump Truck
New howo Sinotruk dump truck using the advanced technology ensure the quality.Dump truck has light weight, superior power performance, stable and reliable performance, and has a variety of personalized configuration options, beautiful cab, safe and comfortable.
There are certain advantages in fuel efficiency and sensing, so as to better ensure the production needs and operation safety.
Quick Details
|
Chassis Brand |
HOWO |
|
Payload Capacity |
25ton-40ton |
|
Material of Tank |
carbon steel |
|
Horsepower |
371hp
|
| Application |
Construction project, heavy duty transportation |
Applications
A transfer dump is a standard dump truck pulling a separate trailer with a movable cargo container, which can also be loaded with construction aggregate — gravel, sand, asphalt, klinkers, snow, wood chips, triple mix, etc.
|
|
|
|
Unique metal support ring welded structure allowing good cylinder stability and high cylinder expanding resistance. |
High strengthen steel compartment. |
|
|
|
| New & modern cab with big space and more comfort, all electrical equipment are controlled by ECO, can be left or right side. |
Driving axle has big loading capacity, each axle is good stability, high safety factor and ability to work under high level pressure |
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Vehicle Description |
|||||
|
Vehicle model |
Tipper truck |
Overall dimensions (mm) |
8500×2500×3500 |
||
|
GVW (t) |
≤50 |
Fact loading capacity(t) |
25-35 |
||
|
Curb weight (kg) |
Appro×12500 |
Max. Speed (km/h) |
75 |
||
|
Chassis Description |
|||||
|
Chassis Model |
SX3255 (F3000 series) |
||||
|
Cab |
One and half row with four-point hydraulic suspension, Electric controlled automatic constant temperature air conditioning, Hydraulic main seat, Right hand drive |
||||
|
Color |
Optional |
||||
|
Allowable person in cab |
3 |
||||
|
Wheel base (mm) |
3775+1400 |
||||
|
Front/Rear track base (mm) |
2000/1850 |
||||
|
Front/Rear overhang (mm) |
1520/1660 |
||||
|
Main frame (mm) |
850×300 (8+7) |
||||
|
Number of axles |
3 |
||||
|
Axle |
Front axle |
MAN 7.5T |
|||
|
Rear axle |
MAN 16T *2 |
||||
|
Traction system |
6*4 |
||||
|
Operation control system |
Power steering |
||||
|
Braking system |
Full air |
||||
|
Electric system (V) |
24 |
||||
|
Clutch |
Ф430 |
||||
|
Gear box + PTO |
10JSD140 + QH50 |
||||
|
Number of gears |
10 speeds + 1 reverse |
||||
|
Fuel tank (L) |
380 |
||||
|
Tire specification |
12.00R20 |
||||
|
Tire quantity |
10+1 |
||||
|
Engine Description |
|||||
|
Engine manufacture |
CHINA WEICHAI ENGINE CO., LTD |
||||
|
Engine model |
WD615.47 |
||||
|
Engine type |
Water cooling, four stroke, brake with exhaust valve, direct injection, supercharged and mid-cooling |
||||
|
Emission standard |
Euro 2 |
||||
|
Exhaust (ml) |
11596 |
||||
|
Max. output power (kw) |
273 |
||||
|
Max. horse power (hp) |
371 |
||||
|
Rated speed (rpm) |
2200 |
||||
|
Max. torque/ speed (N.m / rpm) |
1390 / 1000-1400 |
||||
|
Up-parts Description |
|||||
|
Tipper box dimension (mm) |
5600×2300×1600 |
||||
|
Tipper box type |
Rectangle type with reinforcing rib |
||||
|
Material |
Q345 carbon steel |
||||
|
Thickness of side/bottom plate (mm) |
8/ 10 |
||||
|
Door open way |
Rear single open |
||||
|
Hydraulic ram for dump |
Front set φ180mm |
||||
|
Dumping gear support |
4 |
||||
|
Rotating shaft |
Through type |
||||
|
Working Condition: |
1、Altitude: 0-4500m 2、Temperature: -350C~+450C 3、Relative humidity: 80% 4、Wind force: ≤8 degree |
||||
