HOWO 10ton Garbage Dump Tipper truck

This dump truck model could meet the requirements of different road conditions, and could satisfy your need of long distance highway transportation.



  • Brand:

    heritagetrucksolution.COM
  • Model No.:

    CL1070JM478
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 25900
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

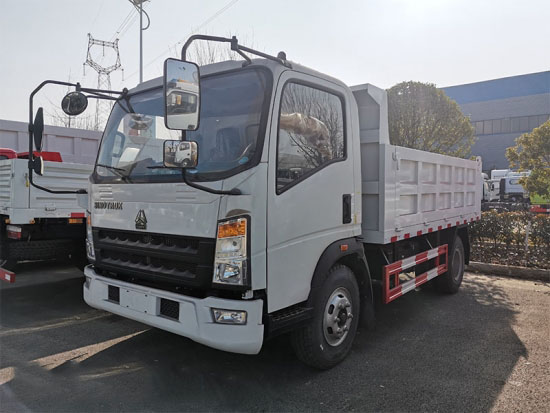

HOWO 10ton Garbage Dump Tipper truck


HOWO 10ton Garbage Dump Tipper truck is a vehicle that unloads goods by itself through hydraulic or mechanical lifting. Also known as dumper truck. It is composed of automobile chassis, hydraulic lifting mechanism, cargo compartment and force taking device. The dump truck compartment is divided into two kinds: backward tipping and lateral tipping. The motion of piston rod is controlledby the control system. Backward tipping is more common, and the piston rod is pushed to make the compartment tipping, with a few two-way tipping.


Quick Details


Chassis Brand

HOWO

Payload Capacity

10ton-12ton

Material of Tank

carbon steel

Horsepower

140hp

Application

Household waste project, light duty transportation


Applications



A transfer dump is a standard dump truck pulling a separate trailer with a movable cargo container, which can also be loaded with construction aggregate — gravel, sand, asphalt, klinkers, snow, wood chips, triple mix, etc.




Competitive Advantages


Unique metal support ring welded structure allowing good cylinder stability and high cylinder expanding resistance.

 High strengthen steel compartment.

New & modern cab with big space and more comfort, all electrical equipment are controlled by ECO, can be left or right side.

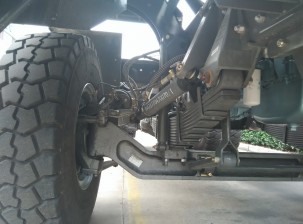

Driving axle has big loading capacity, each axle is good stability, high safety factor and ability to work under high level pressure

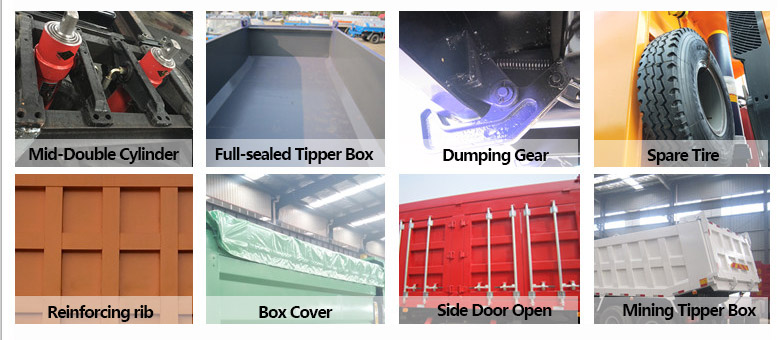

Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



Vehicle Description

Vehicle model

Dump truck

Overall dimensions (mm)

7705×2480×2940

GVW (kg)

≤12000

Fact loading capacity(t)

10

Curb weight (kg)

Appro×4000

Max. Speed (km/h)

90

Chassis Description

Chassis Model

HOWO

Cab

Forward control cab with A.C

Color

Optional

Allowable person in cab

2

Wheel base (mm)

4500

Front/Rear track base (mm)

1940/1845

Front/Rear overhang (mm)

1315/1890

Number of axles

2

Axle

Front axle

3200 kg

Rear axle

8000 kg

Traction system

4*2

Operation control system

Power steering

Braking system

Full air

Electric system (V)

24

Gear box

WLY6T51

Number of gears

6 speeds + 1 reverse

Tire specification

8.25R20

Tire quantity

6+1

Engine Description

Engine manufacture

YUCHAI ENGINE

Engine model

YC4E140-33

Engine type

Water cooling, four stroke, direct injection, supercharged and mid-cooling

Emission standard

Euro 3

Exhaust (ml)

4257

Max. output power (kw)

105

Max. horse power (hp)

140

Rated speed (rpm)

2800

Max. torque/ speed (N.m / rpm)

500 / 1600

Up-parts Description

Dump box dimension (mm)

4800×2100×1000mm

Dump box type

Rectangle type with reinforcing rib

Material

Carbon steel

Thickness of side/bottom plate (mm)

6/ 8

Door open way

Rear single open

Hydraulic ram for dump

Middle set φ200mm

Working Condition:

1、Altitude: 0-4500m

2、Temperature: -350C~+450C

3、Relative humidity: 80%

4、Wind force: ≤8 degree
