HOWO 40 ton boom and underlift separated tow truck

Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.

  • Brand:

    heritagetrucksolution.COM
  • Model No.:

    CL5310TQZZ4
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 100000
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

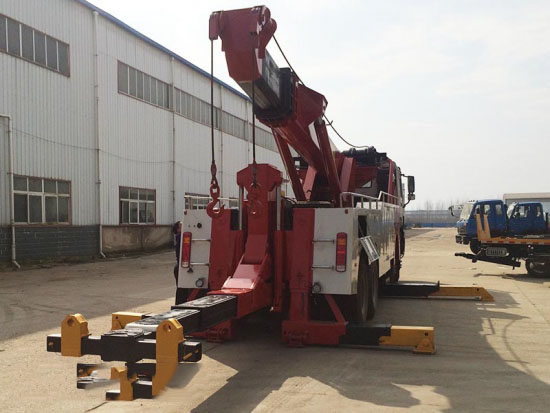

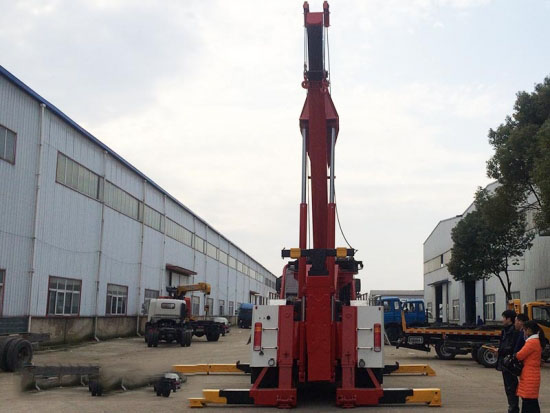

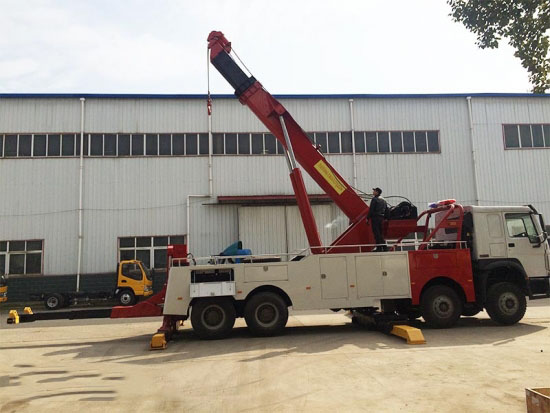

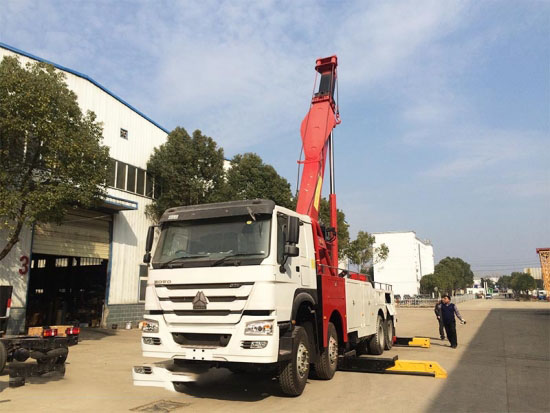

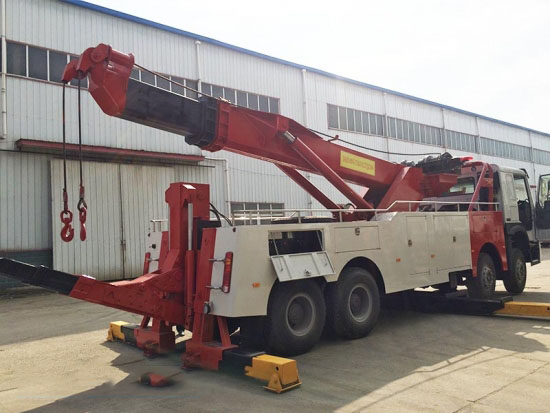

HOWO 40 ton boom and underlift seperated tow truck


The tow truck wrecker is also called road wrecker truck, tow truck wrecker, wrecker towing truck, wrecker, road block removal truck, breakdown truck, tow truck, recovery truck,  etc.
Our tow truck consists of the chassis, hoisting equipment,truck tow hook, tow truck winch, tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes.


Quick Details



Chassis Brand

HOWO

Max Lifting Capacity of Under Lift

20000kg

Max Towing capacity of under Lift

40000kg

Max Pulling Force of Winch

40000kg

Max Lifting Capacity of Boom 40000kg


Applications


Rear  towing wrecker truck  trucks are usually operated by private businesses, except for major highways and toll roads, where the road authority may operate the tow trucks for that stretch of road. Businesses who operate a large fleet of vehicles, such as school bus companies or package delivery services, often own one or several tow trucks for the purposes of towing their own vehicles. Government departments with large fleets (such as the police departments, fire departments, transportation authorities and departments of public works of major cities) may similarly own tow truck(s). Police department tow trucks may also be used to impound other vehicles.


Competitive Advantages




A pair of training wheels makes towing working easily when wheels are damaged

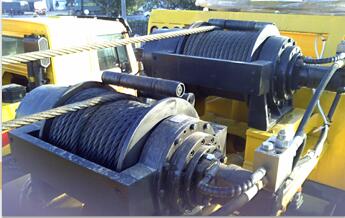

Extra Strength Winch with 21 meters steel cable

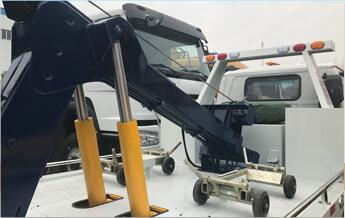

Manual joystick with instructions on side body of the truck makes control work easily

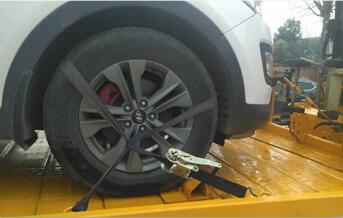

The tire belt keep car stability on wrecker truck

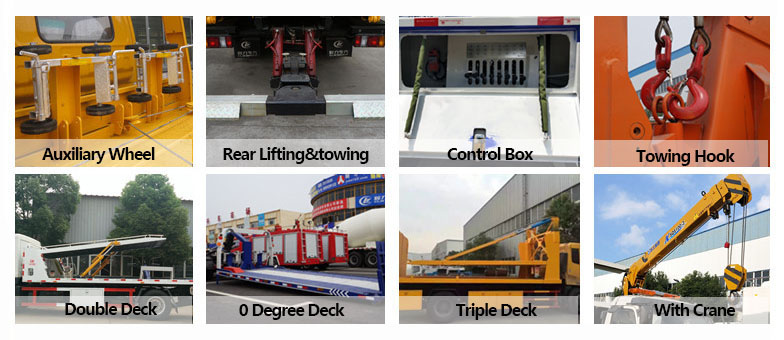

Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



Truck Specification

Truck model

CLW5310TQZZ4

Cab

Sinotruck HOWO HW76 cabin ,, with power steering., with a/c,right  hand drive

Driving Type

8*4

Max Speed (km/h)

90

Overall dimension(mm)

10685*2500*3460

Mass in working order( kg)

19525

GVW( kg)

31000

Wheelbase(mm)

1800+4600+1350

F/R track base(mm)

2022/1830

F/R overhang(mm)

1500/880

Approach/Departure Angel

16/10

Tire

12.00R20(10+1)

Clutch

Single plate friction type with air booster system

Steering

Power assisted steering.

Gear box

Manual Synchromesh

HW19710, 10 SPEED FORWARD +2REVERSE

Bridge

Front axle

HF9

Rear axle

HC16

Enging

Model

WD615.47

Type

cylinder water cooled diesel engine to be fitted with      diesel particulate filter in-built.

Exhaust(ml)

9726

Max output power/rotate speed (hp /rpm )

371/2200

Max torque/rotate speed(N.m/rpm)

1500/1100-1600

Braking  system

Service Brake

Air over hydraulic dual circuit system

Park Brake

Mechanical, internal expanding acting on transfer   output shaf

Eletric system

24v

Upper-Body  specification

Wrecker Type

 Hydraulic operated 3  telescope boom

Boom structure

Retracted - 40,000 kg

Extended - 6,500 kg

Lifting height :12250mm

power Elevation

Power Extension

Dual Hydraulic Pump

360 degree sheave heads

Hydraulic Outriggers

4 in-built with power elevation    & extension.

Hydraulic winches & steel cables

Dual,

20,000 kg x 2-Planetary type

Cable Type: Steel cable60m length , 20mm diameter

Power take off

PTO drive from transmission

Wrecker Operation

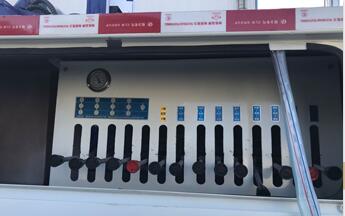

Panel board comprising joysticks and hydraulic meters installed in a suitable place out of crew cabin.

Hydraulic System

Suitable capacity gear pumps for boom movement, telescoping cylinder, power steering and control valves & control system shall be with adequate size oil reservoir, integral oil cooler, valves etc.

Hydraulic Under Lift at Rear

· Fully retracted 20000 kg

· Fully extended 9,000 kg

· Under Lift- 10° - 15

· Towing capacity : 40000kgs

Safety Device



Auto brake  for winch

Automatic safe brake in case winch / Engine fail.

Hydraulic valves

Necessary hydraulic pressure relief & lock valve/ valves




SEND A MESSAGE
heritagetrucksolution is one of the experienced truck manufacturer, export various special trucks, accept custom srevice, welcome to visit our factory and showroom to know more about us.
( This * is Required )
If you have questions or suggestions, please leave us a message,we will reply you as soon as we can!
Related Product
ratotors wrecker truck

HOWO 30 ton ratotors wrecker truck

Our tow truck consists of the chassis, hoisting equipment,truck tow hook, tow truck winch, tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes.

heavy duty ratotor towing truck

Howo 30 ton heavy duty ratotor towing truck

Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind

wrecker towing truck

HOWO 50 ton heavy duty wrecker towing truck

This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.

Runway Sweeper Truck

DFAC 6 Wheeler Water Cleaning Street Vacuum Airport Runway Sweeper Truck

Using ultra wide mouthpiece, inside have long row of high pressure water spray bar is near the ground, have a big water impact force, can be direct make the sewage to suction port, efficient.

Self-loading Concrete Mixer Truck

Multifunctional 3800L Self-loading Concrete Mixer Truck

Self-loading mixer truck multiple functions self-shoveling, cement mixing, material transportation, material loading and unloading.

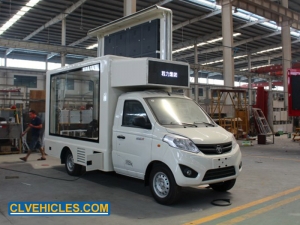

Led Display Screen Truck
