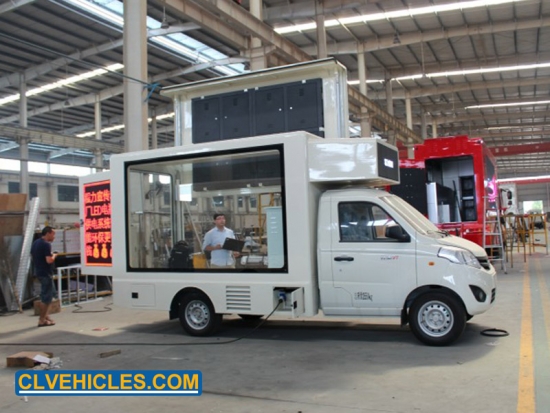

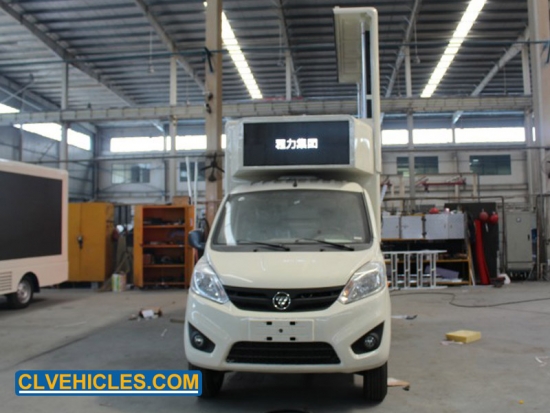

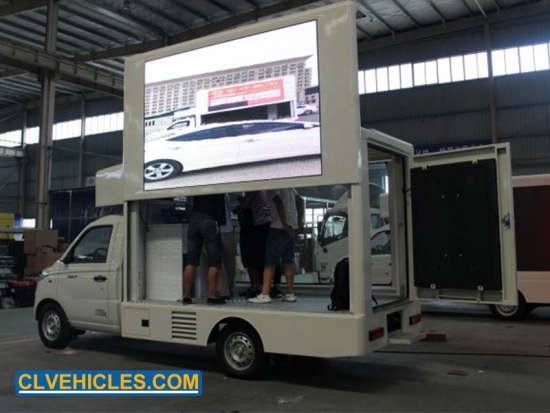

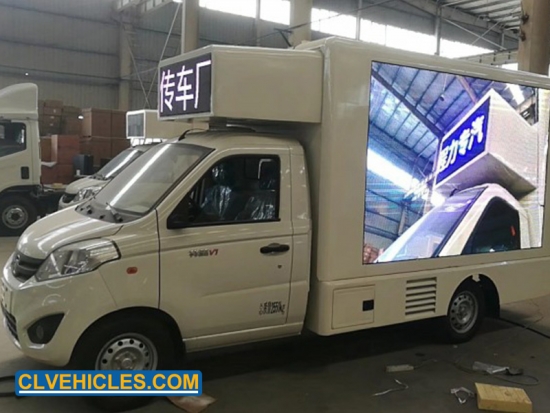

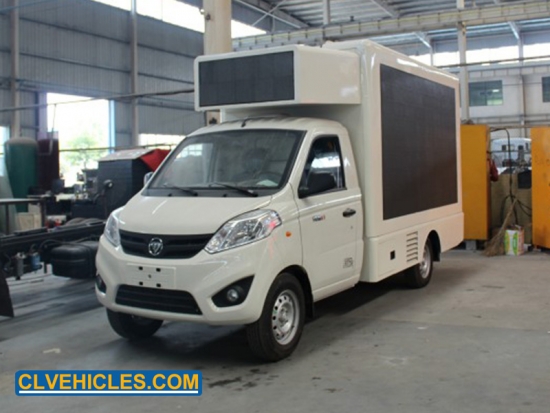

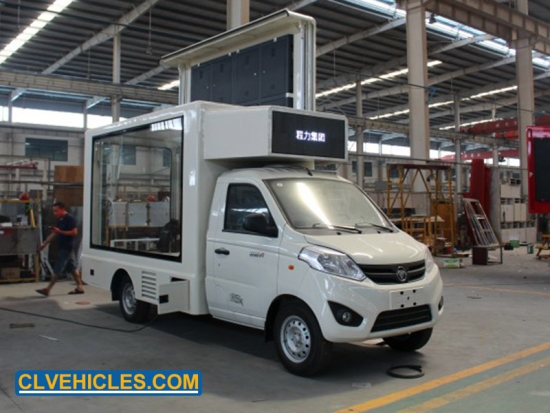

FAW P6 Outdoor Mobile LED Advertising Truck
Combined full color outdoor LED, monochrome screen, roller box, high-power stereo equipment, and other media show together, strengthen the system optimization makes the activity more convenient operation
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
Combined full color outdoor LED, monochrome screen, roller box, high-power stereo equipment, and other media show together, strengthen the system optimization makes the activity more convenient operation.
Brand:
heritagetrucksolution.COMModel No.:
CLW5046XXCB8Minimum Order Quantity:
1 UnitPrice:
USD26000Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcmini 6 wheelers mobile p6 outdoor water proof led screen truck
LED display, also called led screen, led video wall, or led sign, with its unique advantages, has gradually replaced the traditional billboards, light boxes, etc. LED display advertising has become a new force in the media industry.
Traditional advertising can only show pictures, But LED display/led video wall/led screen can perfect combine text, pictures, video, and sound with high resolution, high brightness and full colour!
LED display Advertising screen can easily attract the attention of pedestrians, and also are easy to remember, which can generate greater advertising effectiveness.Led display screen now are widely applied in media advertising, transportation, Security,Real estate and Stage show background.
Quick Details
| Chassis Brand | FOTON |
| LED Type | P5 |
| LED Screen Size | 3840*1760mm |
|
Generator power |
15Kw |
Applications
Widely used for outdoor commercial advertising, live broadcasting, live meeting, banquet, party, stage rental, traffic advertising, mobile truck advertising, sports stadium advertising etc.Shown by video, graphics, animation etc, connect with PC .And remote control with asynchronous system, Wifi control, 3G control .
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Vehicle Description |
|||||
|
Vehicle model |
LED screen truck |
Overall dimensions (mm) |
5995×2025×2995 |
||
|
GVW (kg) |
Appro×5495 |
Fact loading capacity(m3) |
- |
||
|
Mass in working order (kg) |
Appro×4300 |
Max. Speed (km/h) |
90 |
||
|
Chassis Description |
|||||
|
Chassis |
CA1047 |
||||
|
Cab |
Short cab withRight hand drive |
||||
|
Color |
Optional |
||||
|
Allowable person in cab |
3 |
||||
|
Wheel base (mm) |
3360 |
||||
|
Front/Rear track base (mm) |
1415/1485 |
||||
|
Front/Rear overhang (mm) |
1085/1550 |
||||
|
Number of axles |
2 |
||||
|
Axle |
Front axle |
2000 |
|||
|
Rear axle |
3500 |
||||
|
Traction system |
4*2 |
||||
|
Braking system |
Air brake |
||||
|
Electric system |
24V |
||||
|
Transmission |
5speed |
||||
|
Tire specification |
7.00R16 |
||||
|
Tire quantity |
6+1 |
||||
|
Engine Description |
|||||
|
Enginemodel |
4DW93-84 |
||||
|
Emission standard |
Euro3 |
||||
|
Exhaust/output |
2540ml/66kw |
||||
|
Horse power |
85hp |
||||
|
E Up-parts Description |
|||||
|
Left side LED screen |
P5 3840*1760 mm |
||||
|
Right side LED screen |
P5 3840*1760 mm |
||||
|
Rear LED screen |
P5 1280*1440 mm |
||||
|
Generator power |
15KW |
||||
|
Standard equipment |
1,Van box material:5cm composite steel frame 2,Wood floor and lighting system 3,Electrical source distribution box 4,Circulating ventilation cooling system 5,Control computer:1 SET 6,Waterproof speakers:4 PCS 7,Power amplifier: 1 SET 8,OUMA Silent generator: 1 SET 9,Operation desk 10.Media control system |
||||
Combined full color outdoor LED, monochrome screen, roller box, high-power stereo equipment, and other media show together, strengthen the system optimization makes the activity more convenient operation
Combined full color outdoor LED, monochrome screen, roller box, high-power stereo equipment, and other media show together, strengthen the system optimization makes the activity more convenient operation
Combined full color outdoor LED, monochrome screen, roller box, high-power stereo equipment, and other media show together, strengthen the system optimization makes the activity more convenient operation
Combined full color outdoor LED, monochrome screen, roller box, high-power stereo equipment, and other media show together, strengthen the system optimization makes the activity more convenient operation
Combined full color outdoor LED, monochrome screen, roller box, high-power stereo equipment, and other media show together, strengthen the system optimization makes the activity more convenient operation
Combined full color outdoor LED, monochrome screen, roller box, high-power stereo equipment, and other media show together, strengthen the system optimization makes the activity more convenient operation
