Multifunctional 2CBM Self-loading Concrete Mixer Truck
Self-loading mixer truck multiple functions self-shoveling, cement mixing, material transportation, material loading and unloading.
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
Brand:
heritagetrucksolution.COMModel No.:
CLZSJB38Minimum Order Quantity:
1 UnitPrice:
USD 27,600 FOB ShanghaiPayment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

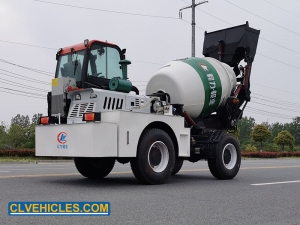

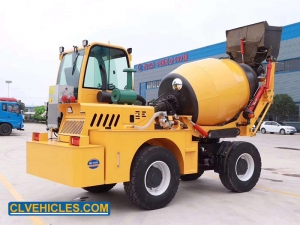

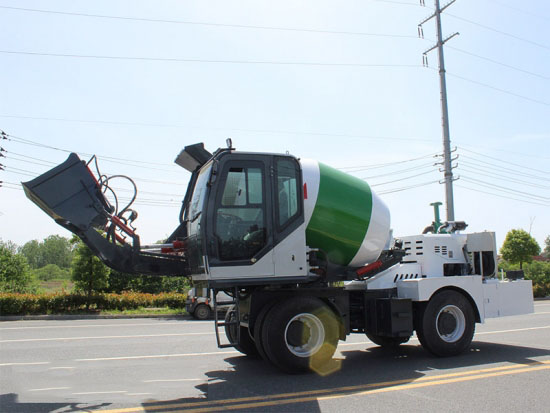

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcMultifunctional 3.8CBM Self-loading Transit Mixer Truck
The self-loading mixer truck integrates various functions into one. A vehicle
can complete the operations of concrete production, mixing, and transportation.
The body is equipped with an electronic scale. The specific values can be
clearly seen in the cab. The ratio can be adjusted at any time and added. Water
is not difficult, because it has a large-capacity water tank, the body is
equipped with Yuchai engine, and many terrains can easily handle it.
Quick Details
| Condition |
New |
|
Driving Wheels |
4*4 |
|
Overall size |
6300*3050*4250mm |
|
Wheelbase |
2600mm |
|
Mixing capacity |
3.8CBM |
|
Fuel Type |
Diesel |
Applications
Large mixer trucks have always been the main means of transporting concrete in urban and rural construction, with a single delivery volume between 10-20 square meters. The advent of self-loading cement mixer trucks, thus ending the past history of rural construction relying on manpower to mix concrete.
For the market value of self-loading cement mixers, the most important thing is to rely on its small size, convenience and flexibility, less labor and low construction costs. Therefore, its market is mainly concentrated in counties and township markets below the county, and the purchasers are mostly individuals. And for the local construction project small and medium boss, contractor.
Self-loading cement mixers will definitely occupy an important position in the construction of counties and towns. In the future, in the construction of streets, squares and workshop floors, self-loading cement mixers will be more and more used in the delivery of commercial concrete After the industry's market is subdivided, self-loading cement mixers are the superior products for the construction of concrete mixing operations in counties and towns.
1. This product solves a variety of problems, more flexible design, easier operation, simpler use and lower cost. It is a perfect combination of "four-in-one" which combines self-shoveling, cement mixing, material transportation, material loading and unloading.
2. Equipped with 12.00 type loader steel tire, the diameter is larger than that of similar products by nearly 30mm. It has strong climbing ability and walking stability. It is suitable for construction operations in various geographical environments in urban and rural areas. When running, it is more stable and safe.
3. Using a sealed gear slewing system, the advantage of this type of turntable is that it will not be worn due to dust and stones, and it has a long service life.
4. The vehicle is a full-time four-wheel drive with sufficient horsepower and good passability.
5. The engine has more brand advantages than similar products, with light weight, low noise, and high power.
6. If the vehicle is selected to be equipped with heating and cooling air conditioning, suction pump, high-pressure car wash pump, cement bucket, etc., it is more comfortable and convenient to use.
7. The vehicle adopts the advanced electronic operating system for the first time among similar products in the country, and is equipped with front and rear view mirrors, cameras, touch screens, etc., which makes the operation more convenient.
Product Details
Cab details:
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Boddy
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Suppy only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
|
Model |
CLZSJB38 |
|
Overall size (mm) |
6300*3050*4250 |
|
Wheelbase (mm) |
2600 |
|
Curb weight (kg) |
8400 |
|
Max. Speed (km/h) |
40 |
|
Driving type |
4*4 |
|
Engine model |
YC4105 Turbocharger |
|
Engine Power (kw) |
85 |
|
Gearbox |
315 component |
|
Rear axle (kg) |
2000 |
|
Tires |
12.00R20 |
|
Bucket capacity (CBM) |
0.7 |
|
Mixing capacity (CBM) |
3.8 |
|
Reduction ratio |
1:32 |
|
Rotating speed |
≥15 r/min |
Self-loading mixer truck multiple functions self-shoveling, cement mixing, material transportation, material loading and unloading.
Self-loading mixer truck multiple functions self-shoveling, cement mixing, material transportation, material loading and unloading.

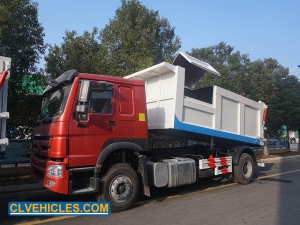

A dump truck is a truck used for transporting loose material (such as sand, gravel, or dirt) for construction.
High-pressure centrifugal fan has high wind power, strong suction, to ensure the efficient collection of ground waste.
Fire truck, also known as fire engines, refer to special vehicles used to perform fire fighting tasks. The fire department in most countries of the world will also use it for other emergency rescue purposes.

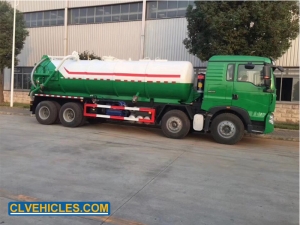

The 20cbm super vacuum cleaner truck is composed of power take-off, transmission shaft, vacuum sewage suction pump, pressure tanker, hydraulic system, pipe network system.
