This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
Brand:
heritagetrucksolution.COMModel No.:
CL5160TSL2Minimum Order Quantity:
1 UnitPrice:
USD 60000Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

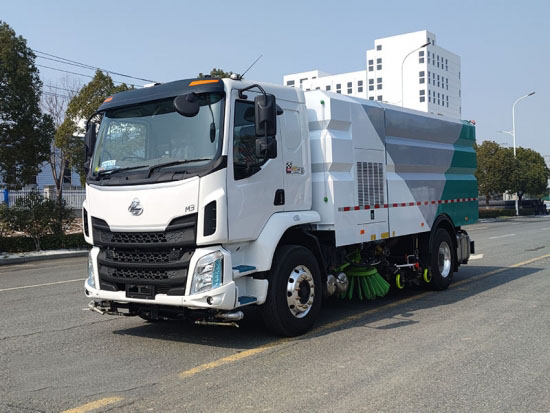

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcDONGFENG High-Pressure Washing 14CBM Road Sweeper Truck
Road Sweeper is heritagetrucksolution according to market needs, research and development production of a set of dust, suction, sweeping a combination of large-scale road cleaning equipment, mainly for urban roads, highways, municipal squares, large factories and mines, airports, terminals, tunnels, bridges and other road surfaces mechanized sweeping high pressure road cleaning and high pressure spraying dust cleaning operations.
Quick Details
| Product name |
Street Cleaning Truck |
|
Water Tank Capacity |
7000L |
|
Garbage Tank Capacity |
7000L |
|
Chassis Brand |
DONGFENG LIUZHOU |
|
Horsepower |
245hp |
|
Sweeping Width |
3.2m |
|
High Pressure Cleaning Width |
3.5m |
|
High Pressure Cleaning Speed |
3-20Km/h |
|
Maximum Cleaning Capacity |
70000M2/h |
|
Clean efficiency |
≥ 95% |
|
Maximum Suction Size |
120mm |
Applications
Washing and cleaning truck is widely used in brushing ,suction and transportation of dusts ,muds ,soil ,sand , stone chips ,gravels and other small particles on the ground of city roads and areas.
1.Our road sweeper truck has free maintenance fan which can reduce the maintenance cost and get long service life.
2.Water tank and garbage tank is made of stainless steel for better anti-corrosion performance and easy maintenance.
3.It is also with wear-resisting sweeper brush and oil –less rotating mechanism.
4.The parts is from famous brand such as Italian motor ,Schneider witch control ,Taiwanese multifold solenoid valve.
5.It is with ISUZU chassis ,perfect performance!
Other Types of Road Washing Truck:
Water Tank: 12000 L Water Tank: 9000 L
Garbage Tank: 10000 L Garbage Tank: 7000 L
Customer Services
|
Vehicle performance and parameters |
|||
|
Item |
Parameter |
Unit |
|
|
Working Performance |
Max sweep width |
3.5 |
m |
|
Low pressure flushing width |
24 |
m |
|
|
Sweep speed |
3—20 |
km/h |
|
|
Max sweep capacity |
70000 |
m2/h |
|
|
Max inhalation of granularity |
≥110 |
mm |
|
|
Angle of unloading |
≥48 |
。 |
|
|
Volume of water tank |
7000 |
L |
|
|
Volume of garbage tank |
7000 |
L |
|
|
Driving Performance |
Max speed |
98 |
km/h |
|
Max gradeability |
30 |
% |
|
|
Braking distance |
≤10 |
m |
|
|
Min turning diameter |
≤13.6 |
m |
|
|
Fuel Performance |
Fuel consumption(Driving) |
≤12 |
L/100km |
|
Fuel consumption(Sweep working at 8km/h) |
6.5 |
L/h |
|
|
2.7 |
L/10000m2 |
||
|
Quality Parameters |
Curb weight |
9045 |
kg |
|
Rated capacity |
7055 |
kg |
|
|
GVW |
16000 |
kg |
|
|
Dimension Parameter |
Overall dimensions |
8900*2200*2900 |
mm |
|
Wheelbase |
4500 |
mm |
|
|
Track front |
1770 |
mm |
|
|
Track rear |
1886 |
mm |
|
|
Front suspension |
1550 |
mm |
|
|
Rear suspension |
1690 |
mm |
|
|
Approach angle |
24 |
。 |
|
|
Departure angle |
16 |
。 |
|
|
Main parts and parameters |
||
|
Chassis |
Chassis model |
DONGFENG M3 |
|
Engine model |
YC6J245-30 |
|
|
Engine power |
180kw/ 245hp |
|
|
Clutch system |
single disc, dry type, diaphragm spring clutch |
|
|
Gearbox |
6speed +1reverse |
|
|
Driving axle |
5.5T/10T |
|
|
Cabin |
Dongfeng single row, with A/C |
|
|
Tire |
11R22.5 |
|
|
Vice-fan Engine |
Brand |
Cummins |
|
Rated power |
125 kw/170hp |
|
|
Fuel type |
Diesel, share with chassis fuel tank |
|
|
Draught Fan |
Type |
high pressure centrifugal specialized draught fan |
|
Rated speed |
2600—2900r/min |
|
|
Actuator type |
Driveby vice-fan engine through transmission shaft, automatic clutch, narrow V type belt transmission |
|
|
Hydraulic System |
Type |
open type and electrohydraulic control system |
|
Main part |
gear pump, cycloid motor, hydrocylinder, magnetic valve, hydraulic hand pump |
|
|
Hydraulic relief pressure |
15Mpa |
|
|
Hydraulic oil tank |
60L |
|
|
Spray Watering |
Main part |
electric water pump, water filtration system, spray nozzle, water tank |
|
Electric System |
Composition |
Madeof chassis electric system and vice-fan engine with other work operating system |
|
Systemvoltage |
12V |
|
|
Battery model |
12-80A.H |
|
|
High pressure flushing system |
High pressure pump |
Germany plunger pump |
|
Rated pressure |
20MPa |
|
|
Working pressure |
10Mpa |
|
|
Rated flow |
106L/min |
|
|
Rated speed |
1000r/min |
|
|
Control type |
Cylinder driving electric control |
|
|
Low pressure flushing system |
Low pressure pump |
80QZB60/90 |
|
Rated flow |
1000L/min |
|
|
Head of delivery |
90m |
|
|
Flushing width |
24m |
|
|
Sweeping Device |
Type |
Two sweeping devices between two axle in the middle, symmetric distribution on both side, drive by hydraulic motor, three speed level control, independent control |
|
Diameter |
f900m |
|
|
Rotate speed |
Three level :110r/min 80r/min 60r/min |
|
|
Dip angle |
Forerake 4o—6o ,Out incline 2o—4o |
|
|
Suction Nozzle |
Type |
U-shaped, Free to move |
|
Diameter |
f200mm |
|
|
Ground clearance in working |
5—10mm |
|
|
Accessories |
LED arrows lamp Schneider Control switch Draught fan（maintenance-free） Manual pump emergency system Anti-overflow alarm device on water and dust tank Low level alarm device on water and dust tank Working and parking monitor in cabin |
|
