Isuzu 700P street cleaning truck

Street cleaning truck is suitable for the cleaning on highway,ring road,urban main road,airport,mechanized cleaning of the wharf.
  • Brand:

    heritagetrucksolution.COM
  • Model No.:

    CL5120TSL1
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD57700
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

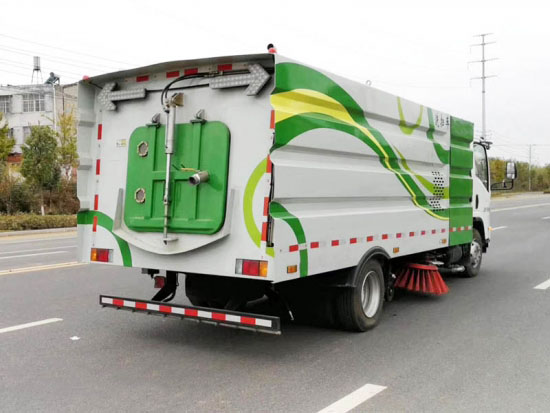

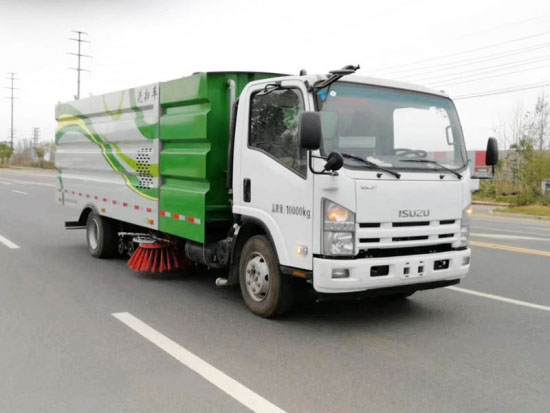

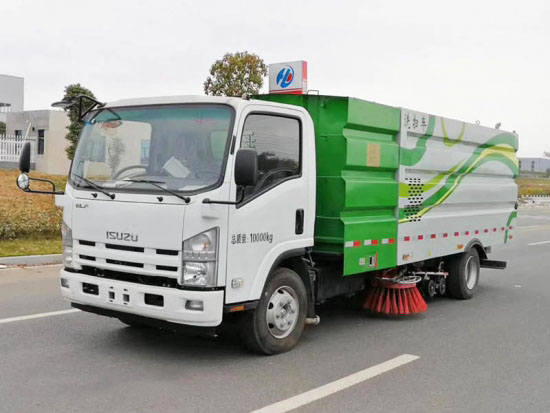

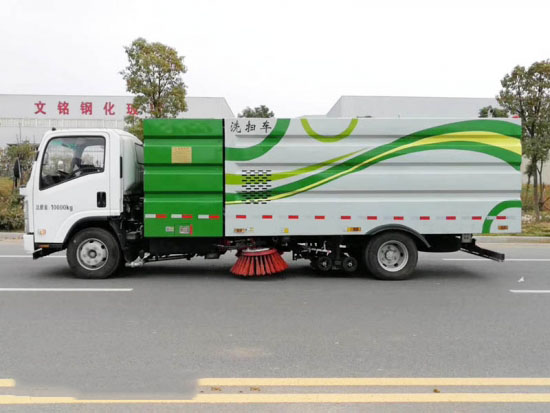

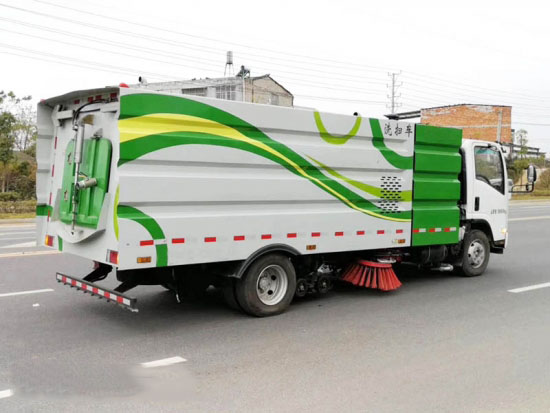

Isuzu 700P street cleaning  truck


Street cleaning truck have been employed in cities since sanitation and waste removal became a priority. A street-sweeping person would use a broom and shovel to clean off litter, animal waste and filth that accumulated on streets. Later, water hoses were used to wash the streets.
Machines were created in the 19th century to do the job more efficiently. Today, modern street sweepers are mounted on truck bodies and can vacuum debris that accumulates in streets.


Quick Details


Product name Street Cleaning Truck

Water Tank Capacity

5000L

Garbage Tank Capacity

5000L

Chassis Brand

ISUZU 700P

Horsepower

190hp

Sweeping Width

3.2m

High Pressure Cleaning Width

3.5m

High Pressure Cleaning Speed

3-20Km/h

Maximum Cleaning Capacity

70000M2/h

Clean efficiency

≥ 95%

Maximum Suction Size

120mm


Applications


Washing and cleaning truck is widely used in brushing ,suction and transportation of dusts ,muds ,soil ,sand , stone chips ,gravels and other small particles on the ground of city roads and areas.

High Pressure Road Washing Truck


Competitive Advantages

1.Our road sweeper truck has free maintenance fan which can reduce the maintenance cost and get long service life.

2.Water tank and garbage tank is made of stainless steel for better anti-corrosion performance and easy maintenance.

3.It is also with wear-resisting sweeper brush and oil –less rotating mechanism.

4.The parts is from famous brand such as Italian motor ,Schneider witch control ,Taiwanese multifold solenoid valve.

5.It is with ISUZU chassis ,perfect performance!


High Pressure Road Washing Truck


Product Details

 High Pressure Road Washing Truck

Other Types of Road Washing Truck:




                      Water Tank: 12000 L                                                         Water Tank: 9000 L

                      Garbage Tank: 10000 L                                                      Garbage Tank: 7000 L


Customer Services





Product Parameters

Vehicle performance and parameters

Item

Parameter

Unit

Working Performance

Max sweep width

3.5

m

Low pressure flushing width

24

m

Sweep speed

3—20

km/h

Max sweep capacity

70000

m2/h

Max inhalation of granularity

≥110

mm

Angle of unloading

≥48

Volume of water tank

5000

L

Volume of garbage tank

5000

L

Driving Performance

Max speed

98

km/h

Max gradeability

30

%

Braking distance

≤10

m

Min turning diameter

≤13.6

m

Fuel Performance

Fuel consumption(Driving)

≤12

L/100km

Fuel consumption(Sweep working at 8km/h)

6.5

L/h

2.7

L/10000m2

Quality Parameters

Curb weight

7045

kg

Rated capacity

4255

kg

GVW

10000

kg

Dimension Parameter

Overall dimensions

6900*2200*2700

mm

Wheelbase

3800

mm

Track front

1770

mm

Track rear

1586

mm

Front suspension

1250

mm

Rear suspension

1690

mm

Approach angle

24

Departure angle

16


Main parts and parameters

Chassis

Chassis model

DFL1080

Engine model

4KH1-TC51

Engine power

139kw/ 190hp

Clutch system

single disc, dry type, diaphragm spring clutch

Gearbox

6speed +1reverse

Driving axle

4T/7T

Cabin

Dongfeng single row, with A/C

Tire

8.25R20

Vice-fan Engine

Brand

JMC

Rated power

64 kw/87hp

Fuel type

Diesel, share with chassis fuel tank

Draught Fan

Type

high pressure centrifugal specialized draught fan

Rated speed

2600—2900r/min

Actuator type

Driveby vice-fan engine through transmission shaft, automatic clutch, narrow V type belt transmission

Hydraulic System

Type

open type and electrohydraulic control system

Main part

gear pump, cycloid motor, hydrocylinder, magnetic valve, hydraulic hand pump

Hydraulic relief pressure

15Mpa

Hydraulic oil tank

60L

Spray Watering

Main part

electric water pump, water filtration system, spray nozzle, water tank



Electric System

Composition

Madeof chassis electric system and vice-fan engine with other work operating system

Systemvoltage

12V

Battery model

12-80A.H

High pressure flushing system

High pressure pump

Germany plunger pump

Rated pressure

20MPa

Working pressure

10Mpa

Rated flow

106L/min

Rated speed

1000r/min

Control type

Cylinder driving electric control

Low pressure flushing system

Low pressure pump

80QZB60/90

Rated flow

1000L/min

Head of delivery

90m

Flushing width

24m

Sweeping Device

Type

Two sweeping devices between two axle in the middle, symmetric distribution on both side, drive by hydraulic motor, three speed level control, independent control

Diameter

f900m

Rotate speed

Three level :110r/min 80r/min  60r/min

Dip angle

Forerake 4o—6o  ,Out incline 2o—4o

Suction Nozzle

Type

U-shaped, Free to move

Diameter

f200mm

Ground clearance in working

5—10mm

Accessories

LED arrows lamp

Schneider Control switch

Draught fan(maintenance-free)

Manual pump emergency system

Anti-overflow alarm device on water and dust tank

Low level alarm device on water and dust tank

Working and parking monitor in cabin
