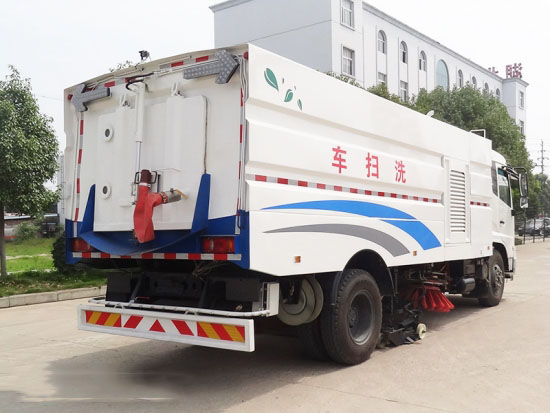

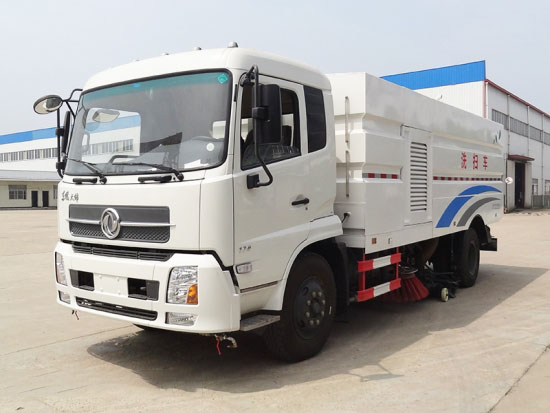

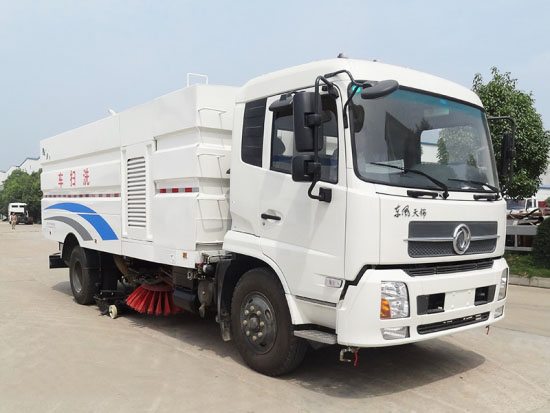

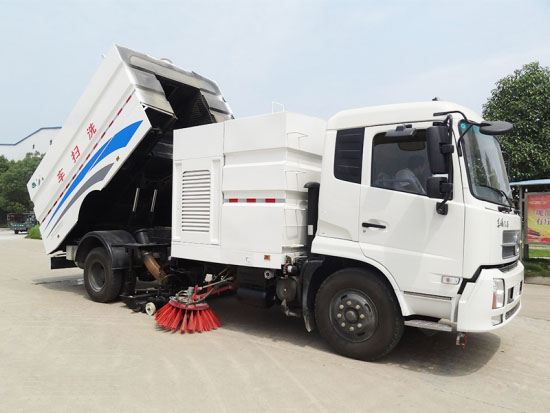

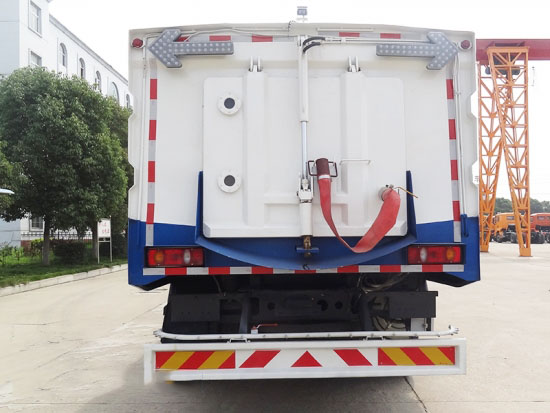

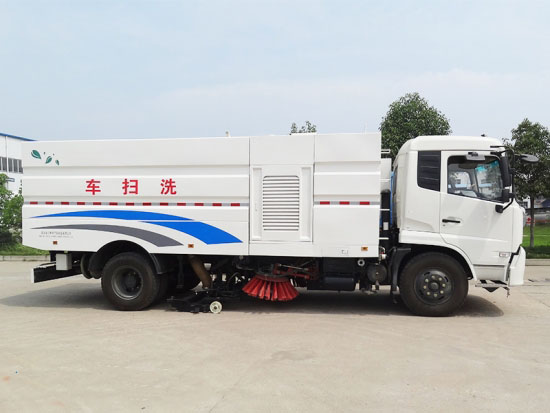

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcDongFeng KINGRUN High Pressure Road Washing Truck
The high pressure washing truck is refitted on DongFeng chassis and installs with auxiliary engines, fans, high-pressure pumps, clean water tanks, dustbins, left and right sweeping plates, wide suction with spray bars, low-pressure flushing system, sweeper dust-reducing system, hydraulic system, and electronic control system.There are nine kinds of working modes are available for selection.
Quick Details
| Product name |
High Pressure Road Washing Truck |
|
Water Tank Capacity |
9000L |
|
Garbage Tank Capacity |
7000L |
|
Chassis Brand |
DONGFENG KINGRUN KR |
|
Horsepower |
170hp |
|
Sweeping Width |
3.2m |
|
High Pressure Cleaning Width |
3.5m |
|
High Pressure Cleaning Speed |
3-20Km/h |
|
Maximum Cleaning Capacity |
70000M2/h |
|
Clean efficiency |
≥ 95% |
|
Maximum Suction Size |
120mm |
Applications
Washing and cleaning truck is widely used in brushing ,suction and transportation of dusts ,muds ,soil ,sand , stone chips ,gravels and other small particles on the ground of city roads and areas.
1.Our road sweeper truck has free maintenance fan which can reduce the maintenance cost and get long service life.
2.Water tank and garbage tank is made of stainless steel for better anti-corrosion performance and easy maintenance.
3.It is also with wear-resisting sweeper brush and oil –less rotating mechanism.
4.The parts is from famous brand such as Italian motor ,Schneider witch control ,Taiwanese multifold solenoid valve.
5.It is with DongFeng chassis ,perfect performance!
Customer Services
|
Vehicle performance and parameters |
|||
|
Item |
Parameter |
Unit |
|
|
Working Performance |
Max sweep width |
3.5 |
m |
|
Low pressure flushing width |
24 |
m |
|
|
Sweep speed |
3—20 |
km/h |
|
|
Max sweep capacity |
70000 |
m2/h |
|
|
Max inhalation of granularity |
≥110 |
mm |
|
|
Angle of unloading |
≥48 |
。 |
|
|
Volume of water tank |
9000 |
L |
|
|
Volume of garbage tank |
7000 |
L |
|
|
Driving Performance |
Max speed |
98 |
km/h |
|
Max gradeability |
30 |
% |
|
|
Braking distance |
≤10 |
m |
|
|
Min turning diameter |
≤13.6 |
m |
|
|
Fuel Performance |
Fuel consumption(Driving) |
≤12 |
L/100km |
|
Fuel consumption(Sweep working at 8km/h) |
6.5 |
L/h |
|
|
2.7 |
L/10000m2 |
||
|
Quality Parameters |
Curb weight |
11350 |
kg |
|
Rated capacity |
4255 |
kg |
|
|
GVW |
16000 |
kg |
|
|
Dimension Parameter |
Overall dimensions |
8280*2490*3100 |
mm |
|
Wheelbase |
4700 |
mm |
|
|
Track front |
1880 |
mm |
|
|
Track rear |
1800 |
mm |
|
|
Front suspension |
1430 |
mm |
|
|
Rear suspension |
2150 |
mm |
|
|
Approach angle |
20 |
。 |
|
|
Departure angle |
13 |
。 |
|
|
Main parts and parameters |
||
|
Chassis |
Chassis model |
DFL1160 |
|
Engine model |
Cummins B170-33 |
|
|
Engine power |
125kw/ 170hp |
|
|
Clutch system |
single disc, dry type, diaphragm spring clutch |
|
|
Gearbox |
Fast 8JS85E 8speed +2reverse |
|
|
Driving axle |
5T/10T |
|
|
Cabin |
153G type one and half row, with A/C |
|
|
Tire |
10.00R20 |
|
|
Vice-fan Engine |
Brand |
Cummins |
|
Rated power |
125kw/170hp |
|
|
Fuel type |
Diesel, share with chassis fuel tank |
|
|
Draught Fan |
Type |
high pressure centrifugal specialized draught fan |
|
Rated speed |
2600—2900r/min |
|
|
Actuator type |
Driveby vice-fan engine through transmission shaft, automatic clutch, narrow V type belt transmission |
|
|
Hydraulic System |
Type |
open type and electrohydraulic control system |
|
Main part |
gear pump, cycloid motor, hydrocylinder, magnetic valve, hydraulic hand pump |
|
|
Hydraulic relief pressure |
15Mpa |
|
|
Hydraulic oil tank |
60L |
|
|
Spray Watering |
Main part |
electric water pump, water filtration system, spray nozzle, water tank |
|
Electric System |
Composition |
Madeof chassis electric system and vice-fan engine with other work operating system |
|
Systemvoltage |
12V |
|
|
Battery model |
12-80A.H |
|
|
High pressure flushing system |
High pressure pump |
Germany plunger pump |
|
Rated pressure |
20MPa |
|
|
Working pressure |
10Mpa |
|
|
Rated flow |
106L/min |
|
|
Rated speed |
1000r/min |
|
|
Control type |
Cylinder driving electric control |
|
|
Low pressure flushing system |
Low pressure pump |
80QZB60/90 |
|
Rated flow |
1000L/min |
|
|
Head of delivery |
90m |
|
|
Flushing width |
24m |
|
|
Sweeping Device |
Type |
Two sweeping devices between two axle in the middle, symmetric distribution on both side, drive by hydraulic motor, three speed level control, independent control |
|
Diameter |
f900m |
|
|
Rotate speed |
Three level :110r/min 80r/min 60r/min |
|
|
Dip angle |
Forerake 4o—6o ,Out incline 2o—4o |
|
|
Suction Nozzle |
Type |
U-shaped, Free to move |
|
Diameter |
f200mm |
|
|
Ground clearance in working |
5—10mm |
|
|
Accessories |
LED arrows lamp Schneider Control switch Draught fan（maintenance-free） Manual pump emergency system Anti-overflow alarm device on water and dust tank Low level alarm device on water and dust tank Working and parking monitor in cabin |
|
6x4 type washing vehicle is equipped with 12CBM water tank and 10CBM dustbin, large size will extend working time and improve work efficiency.
Street cleaning truck is suitable for the cleaning on highway,ring road,urban main road,airport,mechanized cleaning of the wharf.
High Pressure Road Washing Truck equipped with 9000 liter water tank and German high-pressure water pump.Maximum pressure of washing up to 16MPa.
The Road Sweeper Truck is using cleaning and high-pressure wash working together, Garbage collection, Sewage recovery to wash and sweep the road.
It is suitable for cleaning operations in various climates and different dry roads, and is more suitable for cleaning in squares, highways, residential quarters, parking lots, docks, airports, stations, cement plants, power plants, underground garages, parks, factories, industrial parks, etc. dust
In the middle of two legislation sweep, in the middle of Ultra wide mouthpiece, inside have high pressure water spray bar and the high pressure spray bar in left and right side.
