Our factory is a professional LPG tank manufacturer in China, our products fully passed ISO9001-2000 international quality system and 3C authentication.We have the biggest LPG trailer in the world, the valid volume is 58.5cbm, low transport costs, more profit.
Brand:
heritagetrucksolution.COMModel No.:
100000 liter LPG TANKMinimum Order Quantity:
1 UnitPrice:
USD29000Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc1000000 liter lpg storage tanks

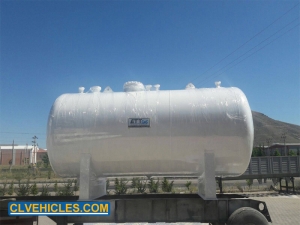

Liquefied petroleum gas storage tanks can be divided into fixed volume storage tanks and active volume storage tanks according to the volume change of containers. Large fixed volume LPG storage tanks It is made into a spherical shape, and the small one is made into a cylindrical shape.
Storage tank is a double cylinder structure, tube and pipe were used austenitic stainless steel manufacturing, outer cylinder with Q235-B/Q345R manufacturing, sandwich filled with perlite, and vacuum pumping, and setting the after special treatment of the adsorbent to extend the life of vacuum tank.
Quick Details
| LPG tank size | 13016*3236*3868mm |
|
Propane tank capacity |
100000 liter |
|
Design temperature |
50℃ |
|
Design pressure |
1.77Mpa |
|
Leak test pressure |
1.77Mpa |
|
Hydraulic test pressure |
2.3Mpa |
Applications
LPG storage tank is widely used in the gas industry, hospitals, metal smelting,filling stations and liquefaction plants and other large gas users, is to achieve the best central air supply products.
|
|
|
|

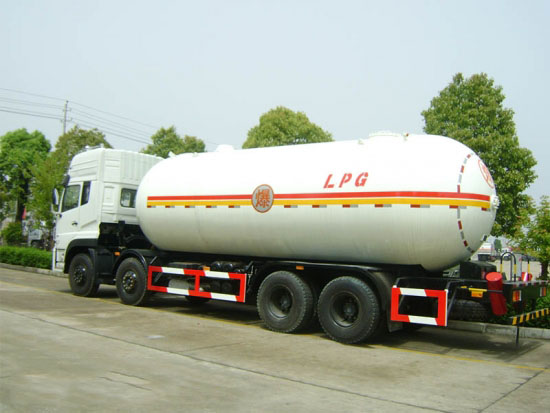

Our LPG tanker trailer is made of Q345R steel which is specialized for pressure vessel 100% X-ray inspection |

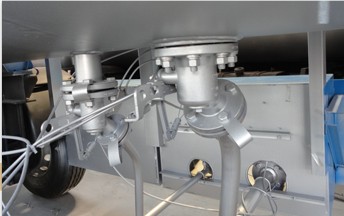

Emergency shut off valve fore safety |
|
|
|
|

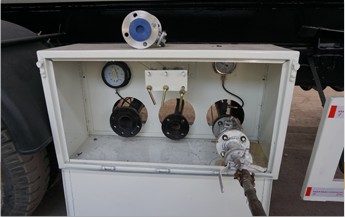

Double side for discharge and loading ,double tool box and valve box |

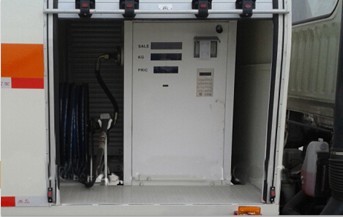

LPG dispenser optional with automatic fault detection and overload protection |
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
39.9T（100M3）LPG storage tank |
||||
|
Filling gas |
LPG (propane) |
|||
|
Design Specific Gravity |
0.42 Kg/L |
|||
|
capacity |
100M3 |
|||
|
External Dimensions (length*width*height) |
13016*3236*3868mm |
|||
|
Tank dimension (length*diameter) |
L13016*D3200mm |
|||
|
tank weight (nominal) |
21800kg |
|||
|
max payload weight |
39900kg |
|||
|
tank material |
Q345R |
|||
|
Tank body design thickness |
16.38mm |
|||
|
End cover design thickness |
16.34mm |
|||
|
design temperature |
500C |
|||
|
working temperature |
-20~500C |
|||
|
Corrosion allowance |
1.0 mm |
|||
|
design pressure |
1.77 MPa |
|||
|
Hydraulic test pressure |
2.22MPa |
|||
|
leak test pressure |
1.77 MPa |
|||
|
Heat treatment type |
Wholly get rid of tress |
|||
|

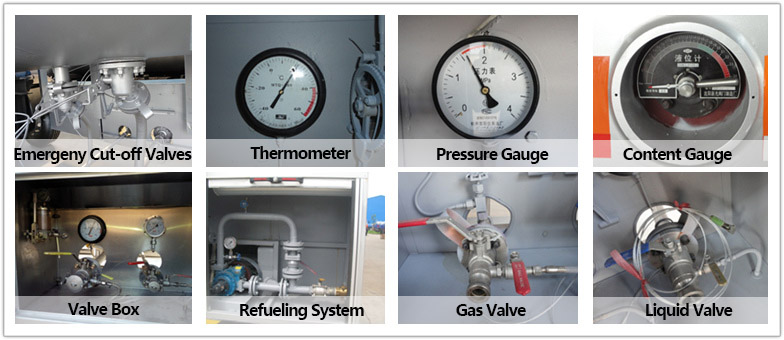

Main partsspecification |
||||
|
Liquid level meter |
Type |
UZFAL-2.5FM |
||
|
Model |
Magnetic level gauge |
|||
|
Nominal pressure |
PN2.5Mpa |
|||
|
Surveying range |
50~2300mm |
|||
|
Precision |
2.5Grade |
|||
|
Safe valve |
Type |
A42F-2.5-100 |
||
|
Model |
Inner full lift |
|||
|
Nominal pressure |
PN2.5 MPa |
|||
|
Nominal diameter |
DN100mm |
|||
|
Opening pressure |
1.68-1.76 MPa |
|||
|
Closing pressure |
1.51~1.59MPa |
|||
|
Complete opening pressure |
<2.12 MPa |
|||
|
Loading and unloading device |
Model |
Quick tie-in |
||
|
Nominal Diameter |
Inlet Gas phase |
DN50mm |
||
|
Outlet gas phase |
DN50mm |
|||
|
Drain outlet phase |
DN50mm |
|||
|
Inlet Liquid phase |
DN80mm |
|||
|
outlet Liquid phase |
DN80mm |
|||
|
Pressure meter |
YN-100T |
|||
|
Temperature gauge |
WTQ-280 |
|||

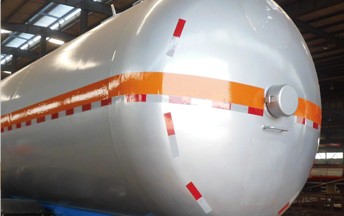

Tank shaped use the advanced welding technology, end socket arc butt welding, and the once-forming of composite steel-plastic technology. Equipped with active and passive safety devices to meet an emergency and can load and unload the material in long distance and completely close condition.

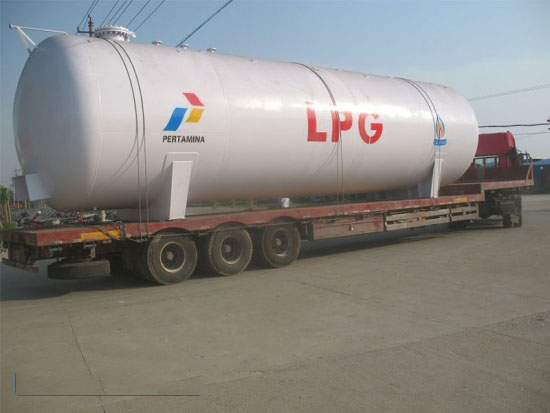

The lpg storage tank is made of special material Q345R. As a professional lpg storage tank manufacturer in China, we have the aptitude to design and manufacture A2 type of pressure vessel,the manufacturing processing of lpg storage tank is complex and strict. All the lpg gas tanks must do nondestructive examination, air tight test, hydrostatic test and any other inspections.
The lpg storage tank is also called LPG gas tank for sale, lpg tank, lpg gas tank, lpg gas storage tank,bulk lpg storage tanks, etc. The lpg storage tank is belong to pressure vessel.It mainly used to store up liquid petrolum gas, propane.
heritagetrucksolution has the design and fabrication capability of household storage tank and stationary storage tank, including above-ground storage tank, underground storage tank, horizontal storage tank, and vertical storage tank etc., which is customized according to the customers' requirement.
LPG storage tank is a professional product for storing liquefied petroleum gas (LPG). It is a special equipment, a type of pressure vessel, Q345R material.
LPG storage tank it`s used to storage the liquefied petroleum gas, and it can set up the LPG skid filling station.
