ISUZU GIGA VC61 460hp 10wheeler Euro5 Tractor Head
Tractor truck head VC61 GIGA heavy trucks isuzu engine with great price
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
According to your needs, we can use the engine with different horsepower.Suah as 290 hp,336hp 371h,etc. which is denpending on the road condition and loading capacity.
Brand:
heritagetrucksolution.COMModel No.:
CL20200405Minimum Order Quantity:
1 UnitPrice:
USD 37,800 FOB ShanghaiPayment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc

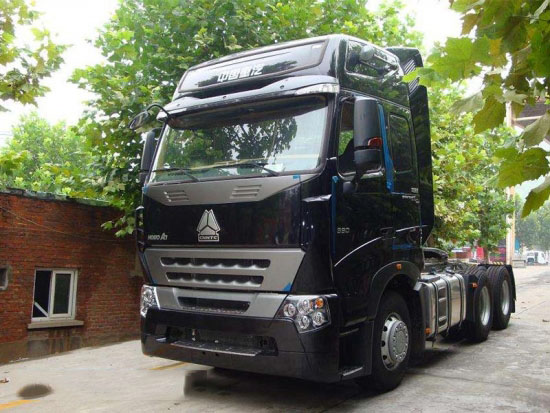

SINOTRUK HOWO 6X4 380HP 45Ton Tractor Truck For Sales
This model is the proven product of SINITRUK, which features reliable structure, great loading capacity, excellent power from 266-420HP, reliable performance. This model can meet the requirements of different road conditions. This model can satisfy your need of long distance highway transportation.
Quick Details
| Condition | NEW |
| Driving Wheels | 6x4 |
|
Emission Standard |
EURO II |
|
Chassis Brand |
HOWO |
| Transmission TypeManual | Manual |
|
Fuel Type |
Diesel |
|
Engine |
D12 380 |
Applications
A tractor is a general large truck or semi-trailer that is towed by a tool between the front and the car. That is, the front of the car can be pulled out of the original car and pulled out of other cars. The car can also be pulled away from the original head by other fronts. . The front of the car with the driving ability is called the tractor, and the car without the traction drive capability is called the trailer. The trailer is towed by the tractor. There are two ways to connect the tractor to the trailer: the first is that the front half of the trailer is placed on the traction saddle above the rear section of the tractor, and the bridge behind the tractor is subjected to a part of the weight of the trailer, which is half-hook; The front end of the trailer is connected to the rear end of the tractor. The tractor only provides the forward pulling force and drags the trailer to go, but does not bear the downward weight of the trailer. This is the full hanging.
Competitive Advantage
This truck is the new generation of sinotruk, with high-level configuration and world-class technology, its performance is excellent. It’s generally used for long-haul transportation; Combined with different semitrailer, it can used to load different bulk cargo on the premise of good road condition. Tire: Tubeless tire,heat dispersion design ,suit to long -haul transportation, nylon tire is available for option, elastic, Suit to mining and construction condition. Transmission: HW19712, 14 gears, 12 forward gears, 2 backward gears.
Production line
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Configuration |
||
|
Production Information |
SINOTRUK HOWO 6X4 380HP Tractor Truck (LHD/RHD) |
|
|
Dimension (L*W*H）(mm) |
6800*2500*3660 |
|
|
Curb weight (kg) |
8730 |
|
|
Total Weight (kg) |
25000 |
|
|
Traction Mass (kg) |
50000 |
|
|
Wheel base (mm) |
3225+1350 |
|
|
Appro. / depar. angle(°) |
16 / 70 |
|
|
Overhang front/rear(mm) |
1500 / 725 |
|
|
Front/Rear track(mm) |
2022 / 1830 |
|
|
Maximum speed(km/h) |
90 |
|
|
Engine |
D12.38 |
|
|
Brand |
SINOTRUK |
|
|
Emission Standard |
Euro 2 |
|
|
Horsepower (hp) |
380 |
|
|
Maximum output (kw) |
279 |
|
|
Model |
4-stroke direct injection , 6-cylinder in-line with water cooling,turbo-charging and inter-cooling |
|
|
Displacement (ml) |
11596 |
|
|
Gearbox |
HW19712CL.10 forward & 2 reverse manual gearbox |
|
|
Steering |
ZF8098, power steering, hydraulic steering with power assistance |
|
|
Cab |
HW7high roof cabwith 1-sleeper, 2 seats and air conditioning |
|
|
Axle |
1 x 7000 |
|
|
Rear Capacity (kg) |
1 x 16000 |
|
|
Traction Kingpin |
3.5 inch (#90) or 2 inch ((#50) |
|
|
Tire |
295/80R22.5 with one spare tire (11 Pcs) |
|
|
Fuel tank |
400L aluminium alloy tank |
|
|
Brakes |
Service brake: dual circuit compressed air brake Auxiliary brake: engine exhaust valve brake |
|
Tractor truck head VC61 GIGA heavy trucks isuzu engine with great price
12 forward gears and two reverse gears. Max output torque 2,000 Nm. Rear auxiliary transmission introduces the planetary gear train with even loads.
The short-stroke synchronizer ensures smooth and convenient gearshift. The integrated gearshift mechanism plus the precise control achieves smooth gear shifting.
On snow or muddy roads, the traction control system can ensure smooth acceleration performance and prevent the vehicle from transverse movement or tail flick due to the slippage of the driving wheels.
The truck is equipped with ZF or Fast transmission. Proofed for many different road conditions and applications.
With crawler gear, better grade ability due to higher 1st gear ratio, adaptable for off-road operations. Optimized ratio steps and bigger ratio spread provides less fuel and more power.
