LPG semi-trailer for transportation of natural gas, liquefied petroleum gas and chemical raw materials. High-quality domestic or imported safety accessories, carburetor and pump for the user matching, fully furnished.
Brand:
heritagetrucksolution.COMModel No.:
CL9390GYQMinimum Order Quantity:
1 UnitPrice:
USD40100Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

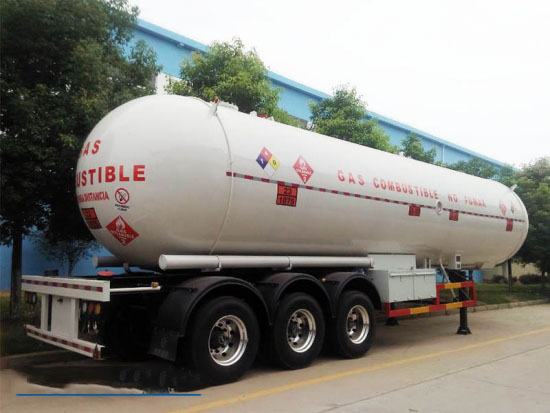

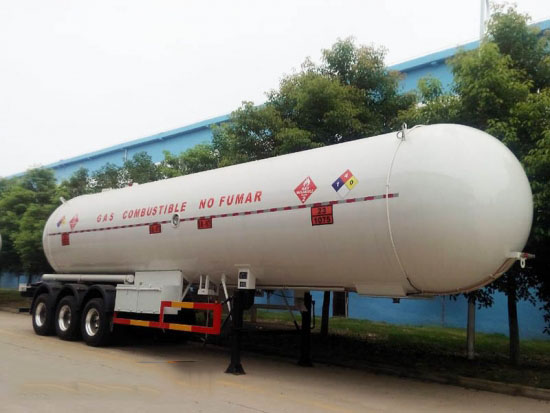

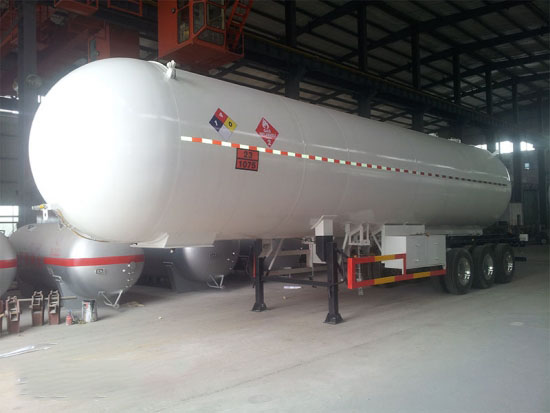

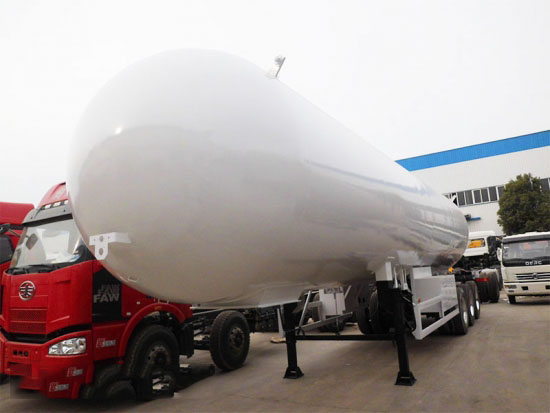

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc3 axle 56000 liter lpg semi trailer
LPG semi trailer takes advantage of compression resistant tank for transporting the liquefied ,which is the special vehicles(For example propane, propylene, liquid ammonia, liquid nitrogen, liquid hydrogen, liquefied natural gas, liquid sulfur dioxide and so on) .
The LPG tanker material uses Q345R steel for high pressure tanker, which is anti-corrosive and keeps a good stability at low or high temperature.
Quick Details
| LPG tank trailer size | 13000*2500*3980 |
|
Propane tank capacity |
56000 liter |
|
Design temperature |
50℃ |
|
Design pressure |
1.77Mpa |
|
Leak test pressure |
1.77Mpa |
|
Hydraulic test pressure |
2.3Mpa |
Applications
LPG tank semi trailer (also called propane storage tank semi trailer , lpg storage tank truck semi trailer ,lpg semi trailer ,lpg tank semi trailer ,lpg road tank semi trailer , propane semi trailer ,lpg gas semi trailer ,lpg transport semi trailer ,propane delivery semi trailer ) is used to transport liquefied petroleum gas, such as propane, liquid ammonia, dim-ethyl ether (DME), isobutene, etc
|
|
|
|
Our LPG tanker trailer is made of Q345R steel which is specialized for pressure vessel 100% X-ray inspection |
Emergency shut off valve fore safety |
|
|
|
|
Double side for discharge and loading ,double tool box and valve box |
LPG dispenser optional with automatic fault detection and overload protection |
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
LPG tanktrailer specification |
||||
|
Filling gas |
LPG |
|||
|
Loading weight |
23520kg |
|||
|
Overalldimension |
12950*2500*3980mm |
|||
|
Axles |
BPW brand & three axles &13T |
|||
|
Wheel base |
6800+1310+1310(mm) |
|||
|
Tire |
12.00R22.5 & 12units |
|||
|
Pin |
Jost Brand & 50# or 90# |
|||
|
Loading leg |
Jost Brand & 25T |
|||
|
Suspension |
Leaf springsuspension |
|||
|
Max speed (km/h) |
85 |
|||
|
LPG tankspecification |
||||
|
Design specific gravity |
0.42 Kg/L |
|||
|
Tankcapacity |
56000L |
|||
|
Tankmaterial |
Q345R |
|||
|
TankDesigned thickness |
End cover |
8mm |
||
|
Tank body |
8mm |
|||
|
Design temperature |
500C |
|||
|
working temperature |
-20~500C |
|||
|
Corrosion allowance |
1.0mm |
|||
|
Designed pressure |
1.77Mpa |
|||
|
Hydraulic test pressure |
2.3MPa |
|||
|
Leak test pressure |
1.77Mpa |
|||
|
Heat treatment |
Wholly get rid of stress |
|||
|
Use Years |
Ten years |
|||
|
Main partsspecification |
||||
|
Liquid level meter |
Type |
YWG-25 |
||
|
Model |
Hand rotary type |
|||
|
Nominal pressure |
PN2.5Mpa |
|||
|
Surveying range |
50~2475mm |
|||
|
Precision |
2.5Grade |
|||
|
Emergencycutting valve |
Type |
Gas phase |
QGJ43F-2.5-8 |
|
|
Liquid phase |
QGJ43F-2.5-7 |
|||
|
Nominal pressure |
PN2.5Mpa |
|||
|
Nominaldiameter |
Gas phase |
DN25mm |
||
|
Liquid phase |
DN50mm |
|||
|
Operation way |
Fluid pressure |
|||
|
Closing time |
≤10 Sec |
|||
|
Melting switch temperature |
70±5°C |
|||
|
Safe valve |
Type |
A412F-2.5--16 |
||
|
Model |
Inner full lift |
|||
|
Nominal pressure |
PN2.5 MPa |
|||
|
Nominal diameter |
DN100mm |
|||
|
Opening pressure |
1.73 MPa |
|||
|
Turning pressure |
≤1.93 MPa |
|||
|
Loading and unloading device |
Valve type |
Gas phase |
YKAG-3.3-6 |
|
|
Liquid phase |
YKAG-3.3-7 |
|||
|
Model |
Quick tie-in |
|||
|
Nominal Diameter |
Gas phase |
DN25mm |
||
|
Liquid phase |
DN50mm |
|||
|
Pressure meter |
YN-100T |
|||
|
Temperature gauge |
WTQ-280 |
|||
|
Lpg gas pump and motor（YQ15-5） |
Flow (m³/h) |
15.5 |
||
|
Inlet pressure (MPa) |
≤2.0 |
|||
|
0.5 |
||||
|
Pump rotate speed (r/min) |
780 |
|||
|
(KW) |
5.5 |
|||
|
Inlet aperture (mm) |
50 |
|||
|
Outlet aperture (mm) |
50 |
|||
|
(℃) |
-40～40 |
|||
|
Weight(kg) |
108 |
|||
|
explosion-proof flow meter |
Nominal diameter（mm） |
50 |
||
|
Nominal pressure(mpa) |
4.0 |
|||
|
medium temperature(℃) |
-40～150 |
|||
|
Body material |
1Cr18Ni9Ti |
|||
|
Allow the vibration acceleration |
1.0～2.0g |
|||
|
precision |
±1%， |
|||
|
supply voltage |
DC +12V，DC +24V |
|||
|
explosion-proof sign |
flame-proof type：ExdⅡCT2-T5 |
|||
|
environmental conditions |
temperature-20℃～55℃，relative humidity5%～90%， |
|||
|
applicable medium |
gas,liquid,steam |
|||
|
Other equipment |
||||
|
1.double tool box 2.double valve box 3.doubleEmergency Cut-off Valve 4.single pipeliquid out 5.single side loading andunloading |
||||
LPG semi trailer are combine with the following parts: LPG gas tank(made of Q345R steel plate),axles,wheel,support leg,traction pin,double outlet valve box( pressure gauge,thermometer,tightening valve,ball valve),iron water-proof board, safety valve,liquid level gauge,fire-extinguishing appliance,tool box,anti-static tape,spare tire rack,,plastic tire fender,etc.
LPG gas trailer tanks, LPG semi trailer tank, LPG tank semi-trailer is mainly used to transport LPG to Filling plant, LPG depot etc. we can provide 40CBM, 50CBM, 56CBM, 59.5CBM, 16MT, 21MT, 23MT and 25MT.
LPG Trailer as known as a Propane semi Trailer is mainly used to transport various liquefied gases, including liquid ammonia, propane, propylene, dimethyl ether, isobutyl fat, and butadiene.
The tanker can be ODM&OEM customized by our professional technician team with best solutions and free logo painting.
LPG semi trailer takes advantage of compression resistant tank for transporting the liquefied ,which is the special vehicles(For example propane, propylene, liquid ammonia, liquid nitrogen, liquid hydrogen, liquefied natural gas, liquid sulfur dioxide and so on) .
LPG propane tank trailer it can be modified and designed according to the needs of customers. 40cbm to 60cbm available.
