2 Axle 50Tons 40ft Container Transport Flatbed Semi Trailer
Especially to load the 2 * 20'', 40'' containers, we use the very strong and durable container locks and very easy to adjust.
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
Flatbed semi trailer is mainly used for transport of goods not spin, such as: tractors, loaders, excavators, bulldozers, etc., applied to many industries, for large cargo transportation is very convenient.
Brand:
heritagetrucksolution.COMModel No.:
CL9400TDPMinimum Order Quantity:
1 UnitPrice:
USD 17000Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc3 FUWA axle Low Flatbed Semi Trailer With Container Lock
In general, the flatbed trailer suit for carrying loads 40 ton~60 tons weight . Actually , flatbed trailer is the simplest trailer for dry bulk cargo , we also can offer other model according to your different requirements , extendable flatbed trailer for transporting wind blade ,steel pipes and fittings and other long items ,flatbed trailer with upright column for log loading ,20ft flatbed trailer for transporting 20ft container ,40ft flatbed trailer for transporting 2x20 ft container and 1x 40ft container ,and flatbed trailer with front wall and so on .
Quick Details
| Semi-trailer type | Flat bed semi-trailer |
| Length | 12500mm |
| Loading capacity | 70000kg |
|
Axle |
FUWA |
Applications
Flatbed semi trailer dedicated to the transport of various containers, and also can be used to transport ordinary growth goods with its platform. It has sufficient strength, and mainly used in transport system, such as ships, ports, routes, highways, transit stations, bridges, tunnels, multimedia transport system.
1>High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.
2>The most skilled workers make welding of this flatbed trailer more frequent and strong.
3>Two pieces spare tire carriers, water tank, fuel tank etc, are optional accessories which build modern transportation.
4>We have standard side wall semi trailer which is with 3 axles and 50 tons loading capacity and 600mm height side wall. Meanwhile, we can have your trailer customized with options.
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Product |
Flat bed semi-trailer |
||
|
Tare Weight |
About6.9T |
||
|
Dimension |
Length: 12500mm(outside dimension) |
||
|
Width:2500mm(outside dimension) |
|||
|
Height:1500mm(outside dimension） |
|||
|
Loading Capacity |
50t |
||
|
Platform specification |
Twist locks |
Type |
Lifting type or twist screw type |
|
Number |
12 |
||
|
Bottom platform |
Thickness |
3mm |
|
|
Material |
diamond steel plate |
||
|
Running mechanism |
Side beam |
Thickness |
16mm |
|
Material |
Q235Carbon steel |
||
|
Main beam |
Height |
500mm |
|
|
Plate |
upper plate is 16mm, middle plate is 8mm, down plate is 16mm |
||
|
Material |
Q235Carbon steel |
||
|
Axle |
Brand |
FUWA |
|
|
Type |
13T |
||
|
Number |
3 pcs |
||
|
Rim |
Type |
9.0-22.5 |
|
|
Number |
12pcs |
||
|

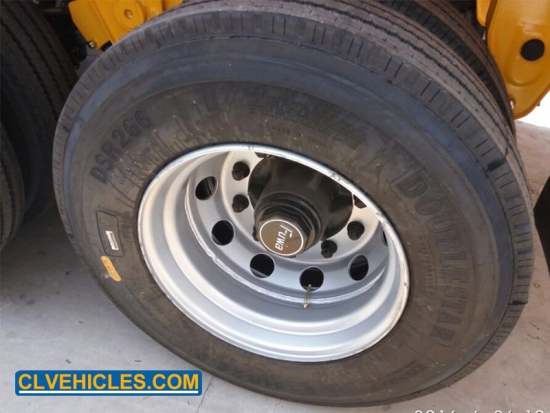

Tyre |
Brand |
Doubles star |
|
|
Type |
12R22.5 |
||
|
Number |
12pcs |
||
|
Suspension |
American type mechanical suspension for 3 axle |
||
|
Spring leaf |
Leaf width |
90mm |
|
|
Leaf thickness |
13mm |
||
|
Layer/set |
10 Layer |
||
|
King pin |
Type |
Bolts type |
|
|
Diameter |
2.0 inch |
||
|
Brake system |
Air tank |
45L air tanks |
|
|
Brake chamber |
WABCO 6RELAY VALVE double Spring brake chamber |
||
|
ABS |
Without |
||
|
Landing gear |
Brand |
ZHONGXING BRAND |
|
|
Type |
Two speed manually operating , heavy duty landing gear 28T |
||
|
Accessories |
Spare tyre carrier |
1 set |
|
|
Light |
LED light |
||
|
Voltage |
24V |
||
|
Receptacle |
7 ways (7 wire harness) and quick change type |
||
|
Tool box |
One piece, 1m×0.5m×0.5m (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
||
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
||
Especially to load the 2 * 20'', 40'' containers, we use the very strong and durable container locks and very easy to adjust.
Commonly used for container transporting and other dry bulk cargo, made of high-strength steel, strong bearing, rational construction and good stability.
Steel frames are built with top-class hot rolled or rolled steel plate, automatic welded longitudinal beam and adopting advanced sanding and painting process as preliminary treatment.
This series container semi trailers are mainly used in the port for containers or bulk cargo's transportation.The suspensions can be: Air suspension, mechanic (leaf spring suspension),bogie suspension, etc.
The skeleton semi trailer is specially designed to carry various cargo containers.You can choose to use you load trailer transport one 20 inch ,40inch or 45 inch container or two 20 inch containers at one time.
This trailer can carry loose cargo, Pipe, 20/30/40/45 feet Container. There are 40 ton – 100 ton loading capacity for your choose. We also support Customized design, it helps getting most suitable vehicles for you.
