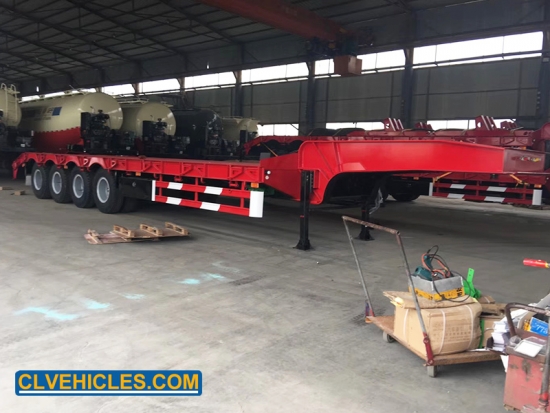

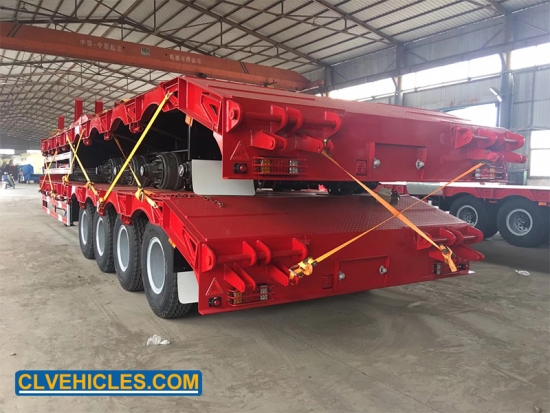

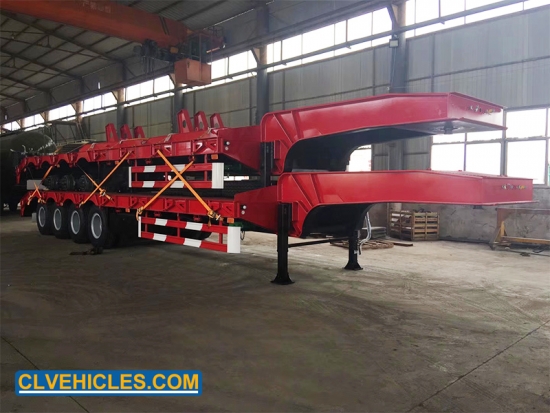

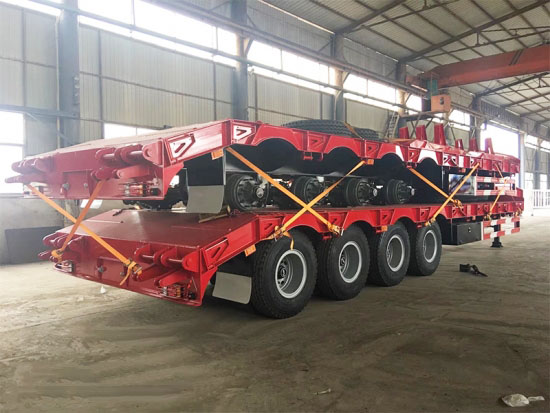

3 Axle 60 Tons Extendable Lowboy Loader Low bed Semi Trailer
3 / 4 axle low bed trailer is generally used for carrying 60-120 Tons capacity loads. These 3 / 4 axle low bed trailer can be platform and pool type according to your demand.
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
Low bed shelves pillar plane, to ensure the stability of transportation, suitable for carrying all kinds of engineering machinery, heavy equipment and steel products, etc.
Brand:
heritagetrucksolution.COMModel No.:
CL9400TDPMinimum Order Quantity:
1 UnitPrice:
USD 21000Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc4 axles 80tons construction machinery carrier Low loader bed trailer with ramps
Low bed semi-trailer structure and load plate semi-trailer usually adopt concave beam (or well type) frame, frame front for both gooseneck (goose segment anterior portion of traction pin connected to the tractor traction saddle, goose neck end connected to the semi-trailer frame), the middle for the goods (frame lowest part), the backend for the wheel
Quick Details
| Semi-trailer type | Low bed semi-trailer |
| Length | 12500mm |
| Loading capacity | 80000kg |
|
Axle |
FUWA |
Applications
Flatbed semi trailer dedicated to the transport of various containers, and also can be used to transport ordinary growth goods with its platform. It has sufficient strength, and mainly used in transport system, such as ships, ports, routes, highways, transit stations, bridges, tunnels, multimedia transport system.
1>High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.
2>The most skilled workers make welding of this flatbed trailer more frequent and strong.
3>Two pieces spare tire carriers, water tank, fuel tank etc, are optional accessories which build modern transportation.
4>We have standard side wall semi trailer which is with 3 axles and 50 tons loading capacity and 600mm height side wall. Meanwhile, we can have your trailer customized with options.
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Product |
Flat bed semi-trailer |
||
|
Tare Weight |
About7.1T |
||
|
Dimension |
Length: 12500 mm(outside dimension) |
||
|
Width: 2500 mm(outside dimension) |
|||
|
Height: 3500 mm(outside dimension） |
|||
|
Loading Capacity |
80 t |
||
|
Van specification |
Twist locks |
Type |
Lifting type or twist screw type |
|
Number |
4.8 or 12 |
||
|
Bottom platform |
Thickness |
3mm |
|
|
Material |
diamond steel plate |
||
|
Running mechanism |
Side beam |
Thickness |
16mm or 18mm |
|
Material |
Q235Carbon steel |
||
|
Main beam |
Height |
450mm-520mm |
|
|
Plate |
upper plate is 14mm-25mm, middle plate is 8mm-12mm, down plate is 16mm-25mm |
||
|
Material |
Q235Carbon steel |
||
|
Axle |
Brand |
FUWA |
|
|
Type |
13T |
||
|
Number |
4 pcs |
||
|
Rim |
Type |
9.0-22.5 |
|
|
Number |
4 pcs |
||
|
Tyre |
Brand |
Triangle brand |
|
|
Type |
12R22.5 |
||
|
Number |
17pcs |
||
|
Suspension |
American type mechanical suspension for 3 axle |
||
|
Spring leaf |
Leaf width |
90mm |
|
|
Leaf thickness |
13mm |
||
|
Layer/set |
10 Layer |
||
|
King pin |
Brand |
JOST brand |
|
|
Type |
Bolts type |
||
|
Diameter |
2.0 inch |
||
|
Brake system |
Air tank |
45L air tanks |
|
|
Brake chamber |
6 double Spring brake chamber |
||
|
ABS |
Without |
||
|
Landing gear |
Brand |
JOST brand |
|
|
Type |
JOST C200T |
||
|
Accessories |
Spare tyre carrier |
2 set |
|
|
Light |
LED light |
||
|
Voltage |
24V |
||
|
Receptacle |
7 ways (7 wire harness) and quick change type |
||
|
Tool box |
One piece, 1m×0.5m×0.5m (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
||
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
||
3 / 4 axle low bed trailer is generally used for carrying 60-120 Tons capacity loads. These 3 / 4 axle low bed trailer can be platform and pool type according to your demand.
Low bed semi-trailer vehicle parts has no column board, divided into the gooseneck, little goose neck type two kinds, wide range of USES, mainly used in long-haul freight transport.
Low bed semi-trailer structure and load plate semi-trailer usually adopt concave beam (or well type) frame, frame front for both gooseneck.
6x4 type washing vehicle is equipped with 12CBM water tank and 10CBM dustbin, large size will extend working time and improve work efficiency.

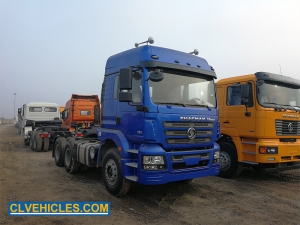

The semi-trailer tractor truck is the commercial vehicle equipped with special device to tow the semi-trailer.
