DONGFENG 18CBM 10Wheeler Medium Volume Industrial Vacuum Trucks
With view window, 1 flow port, hand washing device, 1 suction pipe, vacuum pump, oil and water separator, self-discharging function, back door hydraulic opening.
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
The 20cbm super vacuum cleaner truck is built with a number of innovative features, making it one of the best vacuum trucks in the market today.
Brand:
heritagetrucksolution.COMModel No.:
CL5311XLCA1Minimum Order Quantity:
1 UnitPrice:
USD 58500Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc

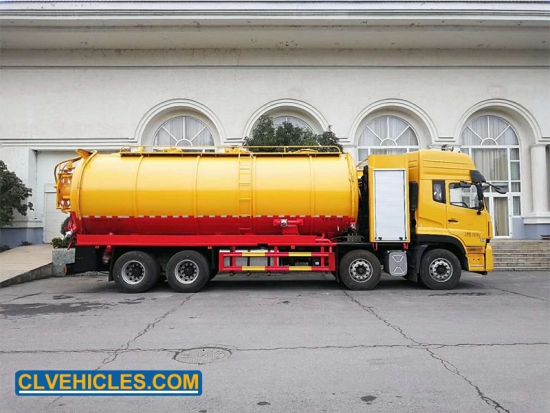

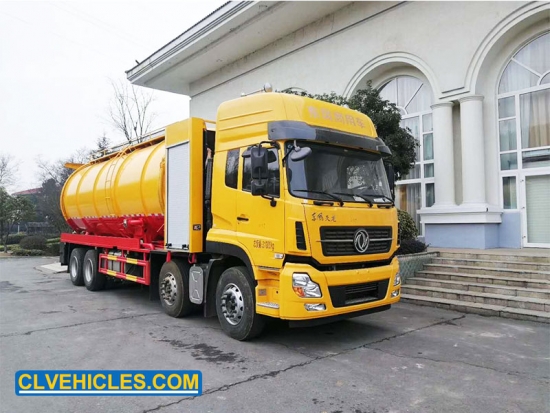

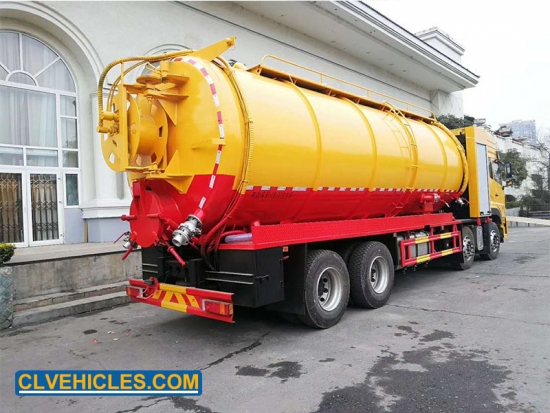

DONGFENG 20000 Liters High Volume Commercial Vacuum Cleaner Truck
The Vacuum truck models have been designed using the latest technology specifically for local operating conditions. Each model in the range is built to handle the toughest cleanups, including sewerage, line cleaning, industrial sumps and slurries, wet ash, excavation material, and toxic waste or other dangerous materials. Each is designed with focus on a specific application, and there is definitely a model available to meet your requirements.
Quick Details
|
Tank Capacity |
20CBM |
|
Tank Material |
Carbon Steel |
|
Chassis brand |
DONGFENG |
|
Horsepower of Engine |
315hp |
|
Vacuum Pump Brand |
Italy BP/ Weilong/ Domestic Pump |
| Color |
As requirements |
Applications
These powerful and efficient vacuum tank truck are designed to vacuum up and recover a wide range of different materials, from liquids, solids, thick sludge , all while leaving the surface below safe and clean.
Vacuum tanker is a tank truck that has a pump and a tank. The pump is designed to pneumatically suck liquids, sludges, slurries, or the like from a location (often underground) into the tank of the truck. The objective is to enable transport of the liquid material via road to another location. Vacuum trucks transport the collected material to a treatment or disposal site, for example a sewage treatment plant.
Competitive Advantages
1, The vacuum pump and hydraulic system are driven by the engine power through the power take-off(PTO).
2, The suction truck is equipped with a level inspection window and a self-flowing port, a hand washing device, an anti-overflow valve, a suction pipe of 8 meters, a hydraulic opening of the rear door, and a SK-15 water circulation vacuum pump. The suction truck has a large suction stroke and suction. Besides, the tank has a lifting function.
3. The inside of the tank is made of epoxy resin with a thickness of 120 microns (three-pass process), which not only has anti-corrosion effect, but also has anti-seepage and plugging effects.
4, The outer part of the tank is sprayed with iron red alkyd antirust paint, which has good adhesion and strong anti-rust ability.
5, Italy or Spain vacuum pumps ，Stainless steel， Anti-rust coating inside tank if necessary.
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Chassis Specification |
||
|
General |
Chassis Brand |
DONGFENG |
|
Overall dimension |
10400*2500*3550mm |
|
|
GVW |
31000kg |
|
|
Mass in working order |
15500kg |
|
|
Cab |
Cab Capacity |
2 persons allowed |
|
Air Conditioner |
Heating or cooling air conditioner |
|
|
Engine |
Fuel Type |
Diesel |
|
Engine Brand |
CUMMINS |
|
|
Power |
315HP7.00R16 14PR |
|
|
Displacement |
8900ml |
|
|
Emission Standard |
Euro 3 |
|
|
Chassis |
Drive Type |
8*4 (left hand driving) |
|
Transmission |
Manual |
|
|
Wheelbase |
1950+4250+1300mm |
|
|
Tire |
11.00R20(12+1) |
|
|
Max Speed |
80km/h |
|
|
Electric system |
24v |
|
|
Upper-Body Specification |
||
|
Upper body |
Body capacity |
20cbm |
|
Material |
Carbon Steel |
|
|
Vacuum Pump Brand |
Italy BP/Weilong/Domestic |
|
|
Vacuum Pump Advantage |
High efficient, Vacuum rate 93%, Quick suction and discharge |
|
|
Hose |
Wire strengthened hose |
|
|
Standard accessories |
Inlet pipeline,Discharge nozzle,Cabin pneumatic control box,basic tool kit |
|
|
Optional |
Back alarm and Camera can be equipped. |
|
|
Standard carbon steel,stainless steel optional. |
||
|
Standard WEILONG vacuum pump,Italy vacuum pump. |
||
With view window, 1 flow port, hand washing device, 1 suction pipe, vacuum pump, oil and water separator, self-discharging function, back door hydraulic opening.
Sewer suction truck is a tank truck that has a pump and a tank. The pump is designed to suck liquids, sludges, slurries, or from a location (often underground) into the tank of the truck.
Sewage suction truck is mainly used for suction, transportation and discharge of sewage from septic tank and sludge from drains.
Jet vac drain cleaning combination truck , can be supplied with a strong chassis and is fitted with the state of the art hydraulically operated Jetting and Vacuum functionality.
High-pressure vacuum release materials causing backups and blockages. The pump help restore normal sewer flow and collect sewage water for treatment and disposal.
Sewage vacuum tanker truck,The rear with hydraulically opening operation and heavy adjustable hinges. Safety Hydraulic check valves with auto check and mechanical hold on upper position.
