It is 4500mm wheelbase Bucket Booming Truck. The vehicle provides people to work in 22 meters aerial platform bucket.
Brand:
heritagetrucksolution.COMModel No.:
CLW5150JGKEQ22FMinimum Order Quantity:
1 UnitPrice:
USD 38800Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc

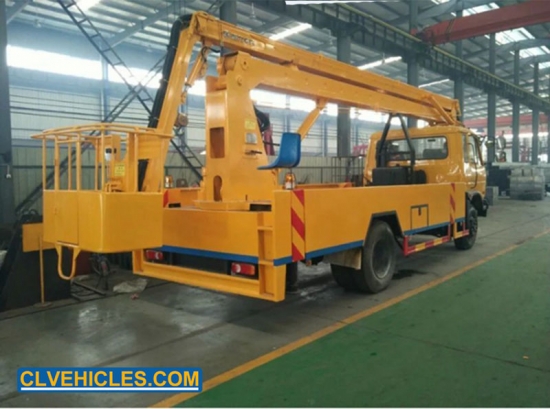

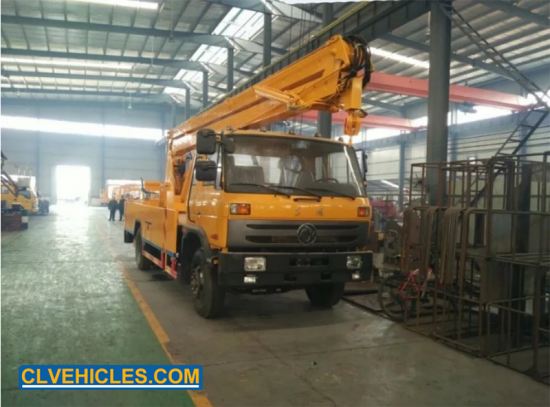

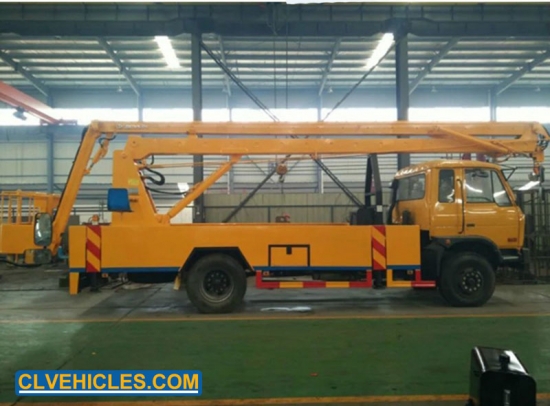

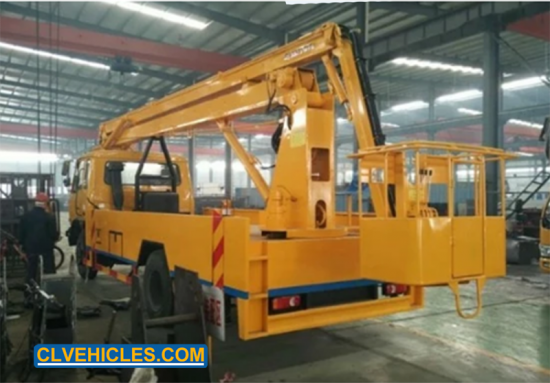

DONGFENG 153 Hand Operated Folding Type 22 Meters Bucket Booming Truck
DONGFENG 153 Hand Operated Folding Type Bucket Booming Truck is a folding type Aerial Platform Truck with manual control function. It has three folding arms and provides temporary access for people or equipment to inaccessible areas of 22 meters height. The arm shaft is compact, flexible and large operating range. Four H type hydraulic supporting legs are used for the platform and have large span and good stability, which can be stretch out and draw back both independent.
Quick Details
|
Chassis Brand |
DONGFENG |
|
Horsepower |
190hp |
|
LHD/RHD |
LHD/RHD |
|
Type |
Folding Type |
|
Working Height |
22 meters |
| Color |
As requirements |
Applications
Bucket Truck is mainly used for municipal engineering,municipal works, streetlight repair and maintenance, garden works, hotel decoration, building engineering work, electric power works, factory, large exhibition hall etc. And it is high efficiency and great performance with good safety.
Competitive Advantages
1. With hydraulic supporting legs, good stability, which can be operated at the same time or independently, and adapt to a variety of working conditions.
2. The vehicle has two operation ways : platform operation and operating on the ground, which is safe, reliable and high efficiency.
3. Slewing mechanism adopts adjustable type, which is easy to adjust.
4. Non-slip body
5. Toolbox (2 pieces)
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Truck Specification |
||
|
Model |
CLW5150JGKEQ22F |
|
|
Cab |
DONGFENG one and a half row seats cab, with power steering. Electronic flameout |
|
|
Driving Type |
4*2 Left hand driving |
|
|
Max Speed (km/h) |
99 |
|
|
Overall dimension (mm) |
9200 * 2460 * 3600 |
|
|
GVW (kg) |
11000 |
|
|
Truck Tare Weight (kg) |
10850 |
|
|
Wheelbase (mm) |
4500 |
|
|
F/R Track Base (mm) |
1940/1860 |
|
|
F/R Overhang (mm) |
1205/2095 |
|
|
Approach/Departure Angel (º) |
28/12 |
|
|
Tire |
10.00-20 |
|
|
Clutch |
Single-plate dry diaphragm spring clutch |
|
|
Steering |
Hydraulic steering with power assistance |
|
|
Gear Box |
8 forward speed with auxiliary transmission, 1 reverse speed |
|
|
Bridge |
Front axle load-bearing (kg) |
5000 |
|
Rear axle load-bearing (kg) |
10000 |
|
|
Engine |
Model |
B190-33EGR |
|
Fuel Type |
Diesel fuel |
|
|
Emission Standard |
Europe III |
|
|
Type |
Water-cooled four-stroke,, direct injection, turbocharged |
|
|
Max output power (kw) |
140 |
|
|
Exhaust (L) |
5900 |
|
|
Max output power/rotate speed (hp /rpm ) |
190/2500 |
|
|
Max torque/rotate speed(N.m/rpm) |
640/1500 |
|
|
Braking System |
Service Brake |
Compressed air brake |
|
Park Brake |
Spring energy |
|
|
Auxiliary Brake |
Engine exhaust brake |
|
|
Electric System |
24V |
|
|
Special Function |
|
|
Working height (m) |
22 |
|
Max working radius (m) |
8.3 |
|
Boom type |
Threesections folding working boom |
|
Rated loading in the bucket(kg) |
200 |
|
Bucket size (mm) |
1100 *600 *1000 |
|
Allowed person in the bucket |
2 |
|
Rotating speed (r/min) |
0-2 |
|
Rotation Angle |
360°continuously |
|
Boom Control mode |
1.Bucket control 2.Manual operation |
|
Supporting legs |
Four hydraulic supporting legs with manual operation |
|
Other configuration |
1. Balance amplitude limiting system 2. Strobe light on supporting leg |
|
Working Condition: |
1.Altitude: 0-4500m 2.Temperature: -35°C~+45°C 3.Relative humidity: 80% 4.Wind force: ≤8 degree |
|
Features: 1. With hydraulic supporting legs, good stability,whichcan be operated at the same time or independently, andadapt to a variety of working conditions. 2.The vehicle hastwo operation ways: platform operation andoperating on the ground, which is safe, reliable and high efficiency. 3.Slewing mechanism adopts adjustable type, which is easy to adjust. 4. Non-slip body |
|
Widely used in municipal, electric power, street lamp, advertising, communication, photography, landscape, shipbuilding, transportation, wharf, airport port, emergency rescue, large industrial and mining enterprises and other industries of the installation and maintenance and climbing operations.
