Brand:
heritagetrucksolution.COMModel No.:
CL5160JGKEQ22FMinimum Order Quantity:
1 UnitPrice:
USD 48700Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc

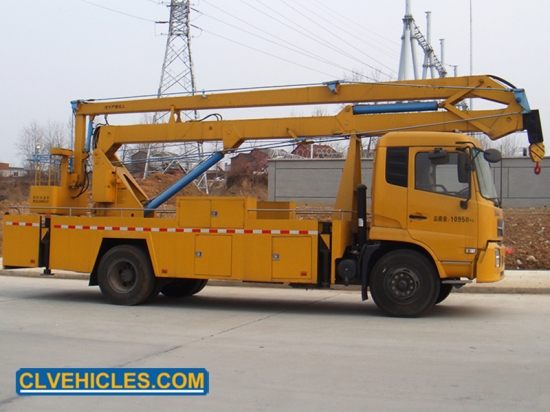

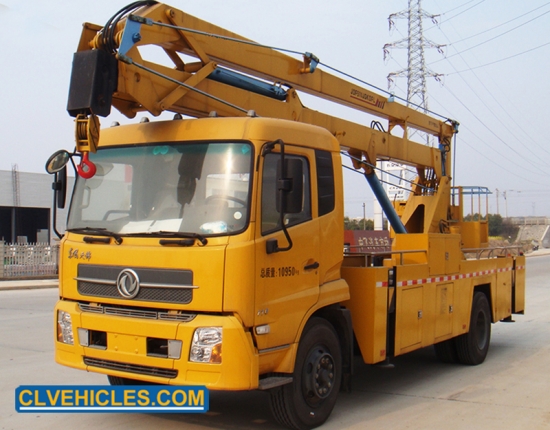

DONGFENG RHD Folding Type 22 Meters Insulated Bucket Truck
High-platform operation truck is high effecience and great performance with good safety. Chose import exchange direction valve so that it is smooth and steady when it exchange direction.Overload protection, safety self-locking cylinder, the system set up overload valve, hydraulic exceed value, automatically uninstall. Both upper and lower exchange platform can be operated. Arm shaft compact,flexible and large operating range. Supporter shelf and arm interlock,safe and reliable,to prevent miss operate. H type shelf which has large span and good stability.It can be stretch out and draw back both independent and interaction.he legs are shown for job profile, light alarm signal is issued.Operation platform automatic leveling,external rod forced balance. 1.5 tons litfing hook(stretch out and draw back range 800-1000mm) Current rate speed controlled system, manual transmission,operate smooth and stable and the current controlled system can be installed both on earth as wireless remote control system.
Quick Details
|
Chassis Brand |
DONGFENG |
|
Horsepower |
190hp |
|
LHD/RHD |
RHD |
|
Type |
Folding Type |
|
Working Height |
22 meters |
| Color |
As requirements |
Applications
DONGFENG RHD Folding Type 22 Meters Insulated Bucket Truck is mainly used for municipal engineering, municipal works, streetlight repair and maintenance, garden works, hotel decoration, building engineering work, electric power works, factory, large exhibition hall etc. And it is high efficiency and great performance with good safety.
Competitive Advantages
1. With hydraulic supporting legs, good stability, which can be operated at the same time or independently, and adapt to a variety of working conditions.
2. The vehicle has two operation ways : platform operation and operating on the ground, which is safe, reliable and high efficiency.
3. Slewing mechanism adopts adjustable type, which is easy to adjust.
4. Non-slip body
5. Toolbox (2 pieces)
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Truck Specification |
||
|
Model |
CLW5160JGKEQ22F |
|
|
Cab |
DONGFENG one and a half row seats cab, with power steering. Electronic flameout |
|
|
Driving Type |
4*2 Left hand driving |
|
|
Max Speed (km/h) |
99 |
|
|
Overall dimension (mm) |
9200 * 2460 * 3600 |
|
|
GVW (kg) |
16000 |
|
|
Truck Tare Weight (kg) |
11250 |
|
|
Wheelbase (mm) |
4700 |
|
|
F/R Track Base (mm) |
1940/1860 |
|
|
F/R Overhang (mm) |
1205/2095 |
|
|
Approach/Departure Angel (º) |
28/12 |
|
|
Tire |
10R22.5 |
|
|
Clutch |
Single-plate dry diaphragm spring clutch |
|
|
Steering |
Hydraulic steering with power assistance |
|
|
Gear Box |
DF6S900 OD |
|
|
Bridge |
Front axle load-bearing (kg) |
6000 |
|
Rear axle load-bearing (kg) |
10000 |
|
|
Engine |
Model |
B190 33 |
|
Fuel Type |
Diesel fuel |
|
|
Emission Standard |
Europe III |
|
|
Type |
Water-cooled four-stroke,, direct injection, turbocharged |
|
|
Max output power (kw) |
140 |
|
|
Exhaust (L) |
5900 |
|
|
Max output power/rotate speed (hp /rpm ) |
190/2500 |
|
|
Max torque/rotate speed(N.m/rpm) |
640/1500 |
|
|
Braking System |
Service Brake |
Compressed air brake |
|
Park Brake |
Spring energy |
|
|
Auxiliary Brake |
Engine exhaust brake |
|
|
Electric System |
24V |
|
|
Special Function |
||
|
Working height (m) |
22 |
|
|
Max working radius (m) |
8.3 |
|
|
Boom type |
Threesections folding working boom |
|
|
Rated loading in the bucket(kg) |
200 |
|
|
Bucket size (mm) |
1100 *600 *1000 |
|
|
Allowed person in the bucket |
2 |
|
|
Rotating speed (r/min) |
0-2 |
|
|
Rotation Angle |
360°continuously |
|
|
Boom Control mode |
Bucket control Manual operation |
|
|
Supporting legs |
Four hydraulic supporting legs with manual operation |
|
|
Other configuration |
Balance amplitude limiting system Strobe light on supporting leg |
|
