This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
The tanker is made of 4mm or 6mm high-quality carbon steel produced by iron and steel companies according to national standards,and the shape is divided into oval or circular tank, which can hold 1-4 kinds of oil products. Can also produce heating and insulation series tank.
Brand:
heritagetrucksolution.COMModel No.:
CL9303GYYMinimum Order Quantity:
1 UnitPrice:
USD 17600Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

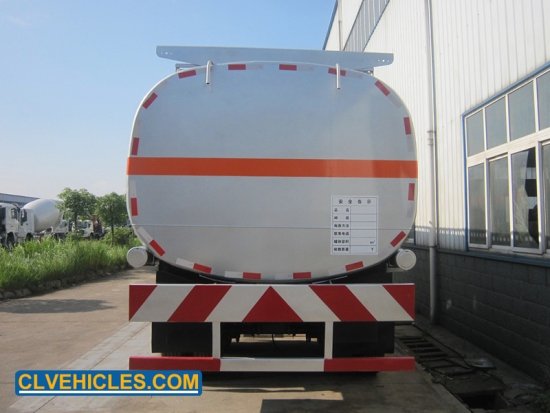

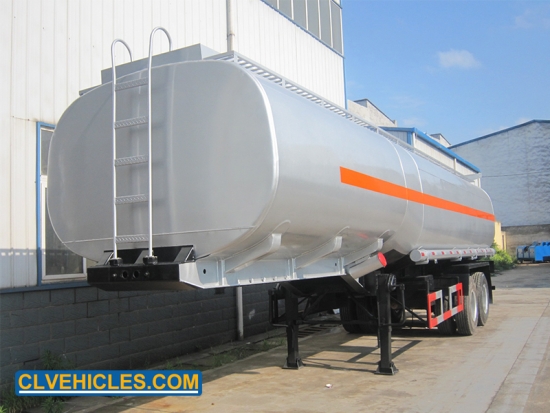

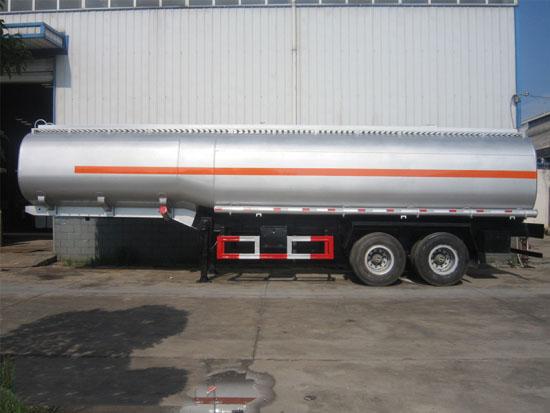

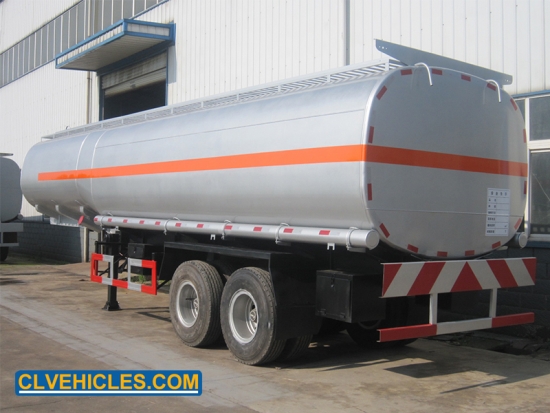

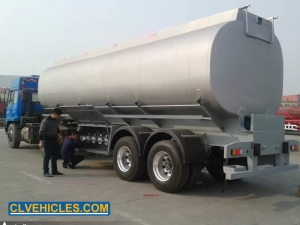

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcDouble axle 35000 liters fuel tank gasoline transport tank trailer
Fuel Tanker Trailer is made of steel, stainless steel or aluminium. it is used to transport kinds of liquid, like fuel, diesel,gasoline, water, milk, chemical liquid etc.it has big volume tanker, which can transport more each time, so that it can save transport cost.
Tanker trailer is connected to the towing part by the traction head.Compared with the ordinary one-piece tanker, the fuel storage trailer can effectively improve the transportation efficiency.
Quick Details
| Semi-trailer type |
Fuel Tank Semi Trailer |
| Length | 9000mm |
| Loading capacity | 35000L |
|
Axle |
FUWA |
Applications
Oil tanker semi trailer is suitable for transporting liquid oil such as gasoline, kerosene, diesel oil, vegetable oil, edible oil, heavy oil, coal tar and non-petroleum products. The tank is equipped with multi-channel anti-wave bulkheads, which makes the tank body strong, stable and the vehicle carried safely and steadily.
World's famous axle brand!——BPW and FUWA.
Various modes of suspension for your choice!—— air suspension, mechanical suspension, single point suspension.
Various kinds of tank material for your choice!—— Q235/carbon steel/CS/stainless steel/SS304/aluminium alloy.

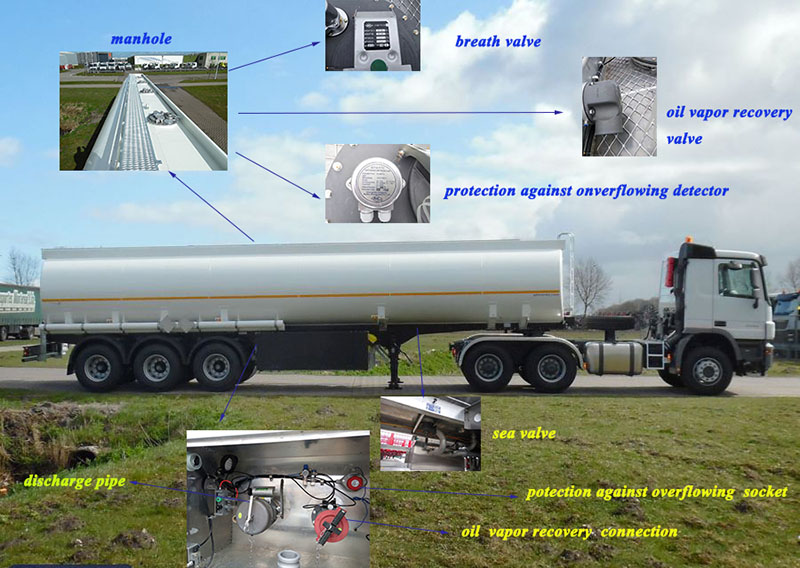

European standard device available!—— oil and gas recovery device, emergency shutoff valve, anti-overflow device, overflow alarm, loading and unloading in the bottom of the tank, exhaust pipe, anti-static zipper, API valve, flow meter.
Division compartments available!
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Tare Weight |
About 5.5T |
||
|
Dimension |
Length:9000 mm(outside dimension) |
||
|
Width: 2500 mm(outside dimension) |
|||
|
Height: 3600mm(outside dimension） |
|||
|
Loading Capacity |
35,000L |
||
|
Tank Assembly |
Front/Rear end plate |
Material |
Carbon Steel |
|
Thickness |
5.75mm |
||
|
Tank Body |
Material |
Carbon Steel |
|
|
Thickness |
5.2mm |
||
|
Compartment |
Single compartment |
||
|
Manhole Cover (Euro Standard) |
Diameter |
500mm |
|
|
Material |
Aluminum Alloy |
||
|
Number |
2 PCS |
||
|
Emergency Cut-off Valves |
Material |
Aluminum Alloy |
|
|
Number |
1 PCS |
||
|
Discharging Valve |
Diameter |
3 inch |
|
|
Number |
1 PCS |
||
|
Discharging Pipe |
Diameter |
3 inch |
|
|
Type |
Rubber hose, 2pcs |
||
|
Cat Walk |
with, Standard type |
||
|
Running mechanism |
Main beam |
Material |
Q235 carbon steel |
|
Plate |
upper plate is 14mm, middle plate is 8mm, Down plate is16mm |
||
|
Height |
500mm |
||
|
Side beam |
Material |
Q235 carbon steel |
|
|
Thickness |
16mm or 18mm channelsteel |
||
|
Axle |
Brand |
FUWA |
|
|
Type |
13T |
||
|
Number |
2 PCS |
||
|
Rim |
Type |
9.0-22.5 |
|
|
Number |
9 PCS |
||
|
Tire |
Brand |
Triangle brand |
|
|
Type |
12.00R22.5 |
||
|
Number |
9 PCS |
||
|
Suspension |
Mechanical suspension for 2 axle |
||
|
Spring leaf |
Leaf width |
90mm |
|
|
Leaf thickness |
13mm |
||
|
Layer/set |
10 Layer |
||
|
King pin |
Brand |
JOST brand |
|
|
Type |
Bolts type |
||
|
Diameter |
2.0 inch |
||
|
Brake system |
Air tank |
45L air tanks |
|
|
Brake chamber |
6 double Spring brake chamber |
||
|
ABS |
Without |
||
|
Landing gear |
Brand |
JOST brand |
|
|
Type |
JOST C200T |
||
|
Accessories |
Spare tire carrier |
1 SET |
|
|
Light |
LED light |
||
|
Voltage |
24V |
||
|
Receptacle |
7 ways (7 wire harness) and quick change type |
||
|
Tool box |
One piece, 1m×0.5m×0.5m (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
||
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
||

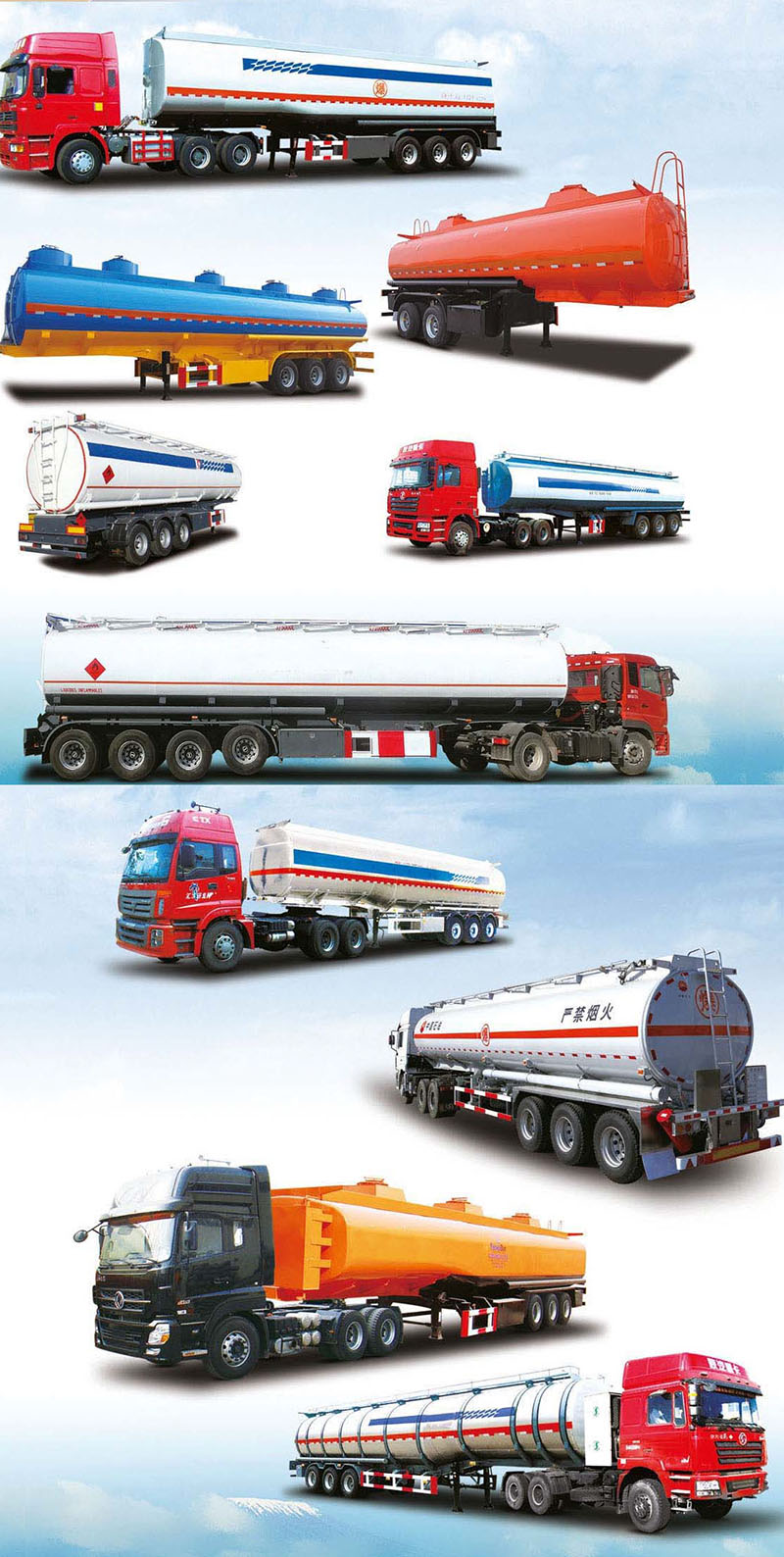

High quality carbon steel oil tank trailers made in China for export. With multiple baffle plates in the tank, the tank has the advantages of high intensity, stability, transporting safety etc.
According to users' needs, the tank can be designed as a single compartment or several compartments to contain different oils.
The fuel truck is a vehicle for transporting oil materials. The fuel truck is equipped with a tanker that can move with the truck and a vehicle that distributes fuel to oil-receiving equipment.
The tank is all made of aluminum steel, and the best hygienic level is achieved by automatic welding and surprise polishing. Polyurethane overall thermal insulation layer, ensure 24 hours is greater than or equal to 2 ℃ temperature rise.
Design multiple compartments or single compartment according to requirements. Reliable safe breathing valve prevents dust entering, reduces material loss and improves safety of the whole tank.
The chassis adopts the frame structure, and the frame is adopted with T700 high strength steel plate, which is about 19 percent lighter than the ordinary frame weight. It is that the vehicle is more fuel-efficient and economical to operate under the same load.
