Brand:
heritagetrucksolution.COMModel No.:
CL5250GJBC5Minimum Order Quantity:
1 UnitPrice:
USD57500Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

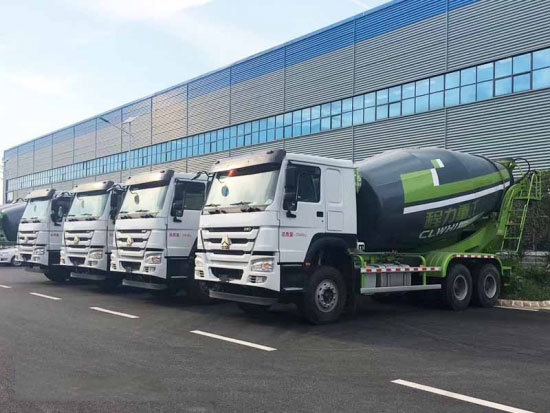

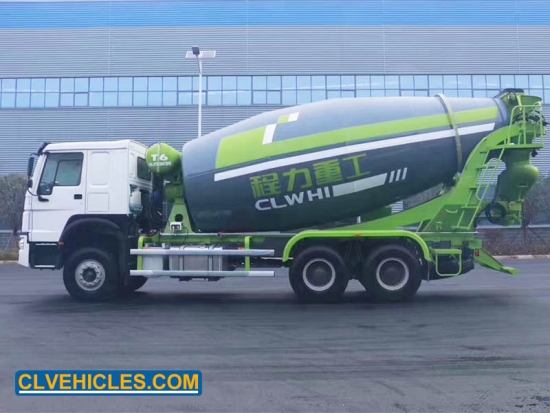

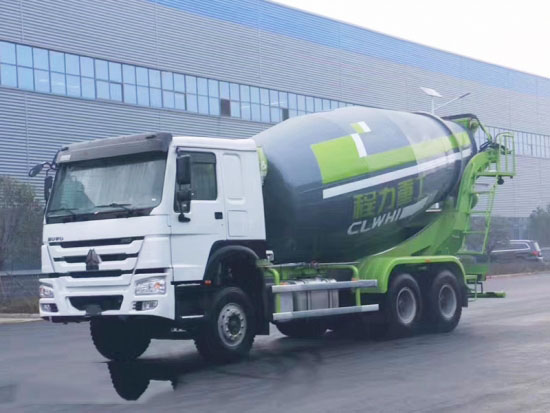

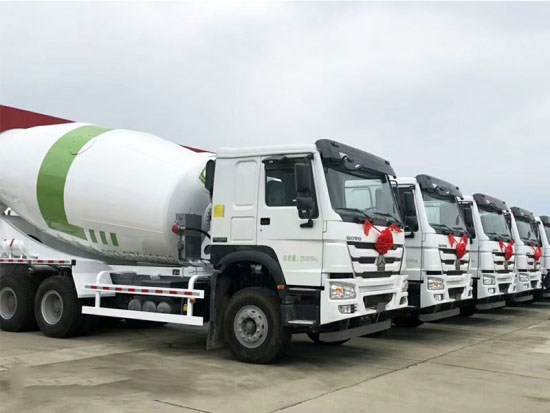

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcHOWO 14 CBM concrete mixer truck
Agitator truck is made to transport and mix concrete up to the construction site.The concrete mixing transport truck maintains the material's liquid state through agitation, or turning of the drum, until delivery.
For the construction place which has limited height and width requirements for the vehicle, small concrete mixer trucks (2m³ to 6 m³) that are perfect for the demands.
Quick Details
| Product name |
Concrete mixer truck |
|
Drum mixing volume |
14CBM |
|
Chassis Brand |
HOWO |
|
Reducer brand |
Italy brand, BONFIGLIOLI |
|
Hydraulic pump brand |
American brand sunny |
|
Hydraulic motor brand |
American brand sunny |
Applications
Cement mixer truck can be used to transport,and during transport, it will remain mixing drum rotation to ensure the delivery of concrete not being solidified.
1.Nice shape and rational structure
2.High-intensity drum material
3.Famous brand hydraulic system
4.Customized product according to the height and width limit
5.It is with FOTON chassis ,perfect performance!
|
|
|
|
B520JJ Alloy Steel,mixing tank life 50000-80000CBM, mixing blade life 30000-40000CBM, 3D mixing technology |
Reducer Italian Bonfiglioli, PMP, Gemany ZF / Hydraulic pump and motor , American Fation and Saurer |
|
|
|
|
Supporting roller imported form Japan Cover for preventing corroded by falling concrete |

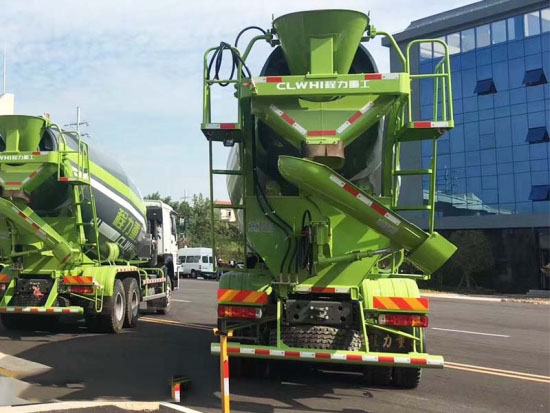

Output hopper can be rotated 270 degrees and fixed in any slot |
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Boddy
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Suppy only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
|
Truck Specification |
||||||
|
Chassis model |
CLW5250GJBC5 |
|||||
|
Cab |
HOWO HW76 CAB |
|||||
|
Driving Type |
6*4 Right hand driving |
|||||
|
Max Speed (km/h) |
80 |
|||||
|
Overall dimension（mm） |
9900×2500×3950(mm) |
|||||
|
GVW（ kg） |
25000 |
|||||
|
Mass in working order（ kg） |
13000 | |||||
|
Wheelbase（mm） |
4300+1350 |
|||||
|
F/R track base（mm） |
2006/1850 |
|||||
|
F/R overhang（mm） |
1510/2915 |
|||||
|
Approach/Departure Angel |
26/12(°) |
|||||
|
Tire |
12.00R20 |
|||||
|
Clutch |
Single-plate dry diaphragm spring clutch |
|||||
|
Steering |
Hydraulic steering with power assistance |
|||||
|
Gear box |
10+2 speed |
|||||
|
Bridge |
Frontaxle |
HFC9 |
||||
|
Rear axle |
HC16 |
|||||
|
Enging |
Model |
WD615.47 | ||||
|
Fuel Type |
Diesel fuel |
|||||
|
Type |
Water-cooled four-stroke,, direct injection, turbocharged |
|||||
|
Exhaust（ml） |
9726 | |||||
|
Max output power(hp) |
370 |
|||||
|
Braking system |
Service Brake |
Compressed air brake |
||||
|
Park Brake |
Spring energy |
|||||
|
Auxiliary brake |
engine exhaust brake |
|||||
|
Eletric system |
24v |
|||||
|
Upper-Body specification |
||||||
|
Drum mixing volume (m3) |
14 |
|
|
|||
|
Input rate (m3/min) |
≥2.8 |
Output rate (m3/min) |
≥1.2 |
|||
|
Filling rate |
65% |
Residual rate |
<0.5% |
|||
|
ReducerDescription |
||||||
|
Reducer brand |
Italy brand, BONFIGLIOLI 580L |
|||||
|
Gear ratio |
1:131-147 |
Torque (N . m) |
75000 |
|||
|
Max input speed(r/min) |
20 |
Weight(kg) |
320 | |||
|
Hydraulic PumpDescription |
||||||
|
Hydraulic pump brand |
America brand, SAUER(R-075) |
|||||
|
Max Flow rate (L/min) |
270 |
Rated pressure (MPa) |
420 |
|||
|
Max input speed (rpm) |
3950 |
Max torque/Rated pressure (N.m) |
730 |
|||
|
Hydraulic MotorDescription |
||||||
|
Hydraulic motor brand |
America brand, SAUER |
|||||
|
Max Flow rate (L/min) |
280 |
Rated pressure (MPa) |
40 |
|||
|
Weight(kg) |
18 |
Max torque/Rated pressure (N.m) |
730 |
|||
|
Water Supply System Description |
||||||
|
Water supply type |
Air pressure |
Working pressure (MPa) |
0.25-0.3 |
|||
|
Water tank volume (L) |
450 |
|||||
Small mixer can be widely used in mines, tunnels, township, village, town road, water conservancy projects, the end of large projects, short-term, small projects, micro-small mixing station, subway, national defense and other engineering construction.
Self-loading aggregate, cement and water, mix and transport.Our product is the top-choice for the concrete transportation for rural construction,urban construction,tunnel,airport,seaport,high-speed rail,beam field,bridge construction projects and so on.
These trucks are equipped with cylindrical mixing drums to carry mixed concrete.During transportation, the mixing drum will always be rotated to ensure that the concrete carried will not solidify.
Concrete mixer truck is a special truck used to transport concrete for construction; because of its shape, it is often referred to as a field snail truck.After the concrete is transported, the inner part of the mixing drum is usually flushed with water to prevent the hardening of the concrete from occupying space, so that the volume of the mixing drum becomes smaller and smaller.
Easy to operate, a handle to achieve centralized control of mixing tank, the configuration mature and reliable, easy maintenance.
Using hydraulic transmission device, do not rely on external force, easy to use, continuous rotation of the tank during transport, commercial concrete does not precipitate, not segregation.
