Sinotruk HOWO big volume swing arm garbage truck,skip loader truck
Brand:
heritagetrucksolution.COMModel No.:
CLW5250BBLJMinimum Order Quantity:
1 UnitPrice:
USD44700Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

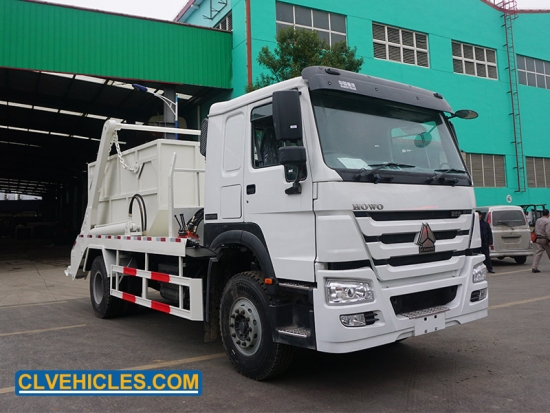

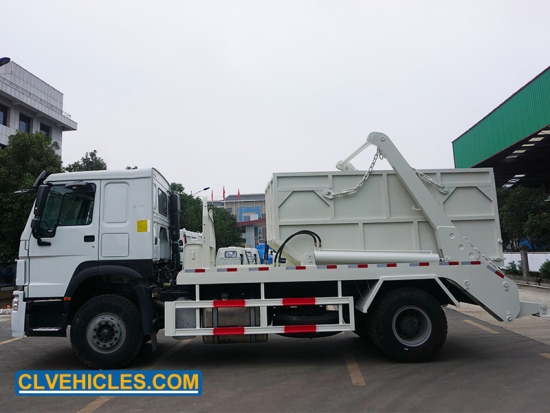

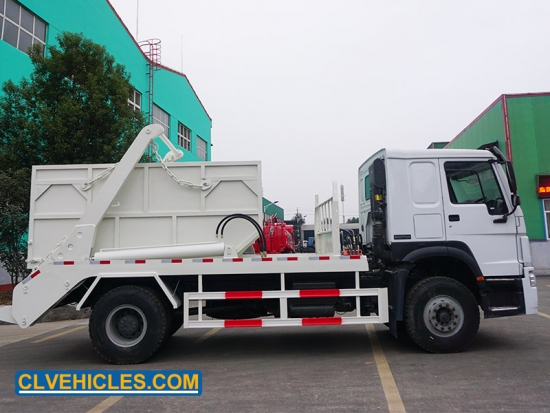

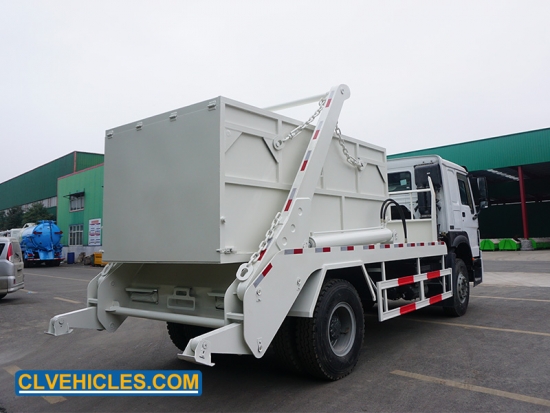

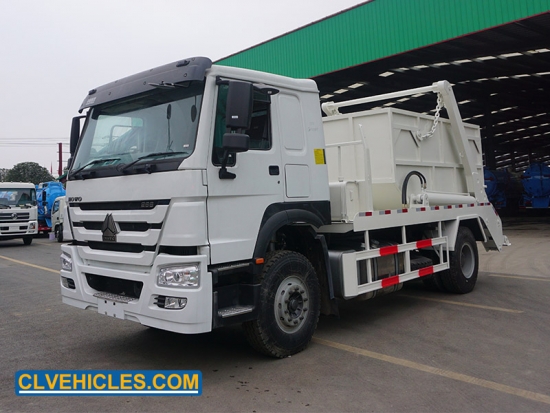

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcHOWO 336hp 6wheeler Skip Loader Garbage Bin Truck
Although the skip loader is present in a broad scope of construction assignments, it’s primarily linked to the waste handling business. Its flexibility to handle close quarters and confined spaces makes the skip loader the optimal partner for this task at the construction site.
Quick Details
| Chassis Brand | HOWO |
| Carriage body volume | 16-20CBM |
| Filling Cycle Time | 50-60s/once |
|
Hydraulic Pressure |
20Mpa |
Applications
The swing arm container garbage truck can be used in urban erea and suburb.The container on the rear of the truck can be put down on the ground to gather garbage at a fixed location .when the container gathers full.the truck lift it on the flat bed on the rear of the truck.then dump the garbage in the garbage center.
1, General:Our skip loader Truck with 2ton -15ton capacity ;Euro 2, Euro 3 ,Euro 4 and Euro 5 Emission Standards;
2, Drive model:4*2,6*4; Brand with Dongfeng, JMC,Qingling , JAC, Foton ,Shacman and etc.
3. Bin Material :Standard steel (Carbon steel Q235 & Q345, also the Stainless steel can be choose) for garbage tank, against corrosion resistant, rust protection and well-resisting.
4. Usage :The Skip Refuse truck is multi-functional used for garbage collection, transportation and self-discharging, Easy to operate and maintenance.
5. Swing system: The swing system use complete sets of equipment, safe and reliable, we have domestic brand and imported brand for optional
6. Advantage :Adopts one truck match numbers of garbage tank, loop transportation, which can highly improve the work efficiency, also reduce the cost.
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Truck Specification |
||||
|
Truck model |
CLW5250YSLJ |
|||
|
Cab |
Single row cab |
|||
|
Driving Type |
6*4 Left hand driving |
|||
|
Max Speed (km/h) |
115 |
|||
|
Overall dimension（mm） |
9350×2500×3200
|
|||
|
GVW（ kg） |
25000 |
|||
|
Mass in working order（ kg） |
16600 |
|||
|
Wheelbase（mm） |
4700 |
|||
|
F/R track base（mm） |
1569/1530 |
|||
|
F/R overhang（mm） |
1068/1997 |
|||
|
Approach/Departure Angel |
22/25 |
|||
|
Tire |
10.00-20 |
|||
|
Clutch |
Single-plate dry diaphragm spring clutch |
|||
|
Steering |
Hydraulic steering with power assistance |
|||
|
Gear box |
8-speed |
|||
|
Bridge |
Front axle |
7T |
||
|
Rear axle |
13T |
|||
|
Enging |
Model |
WD615 69
|
||
|
Fuel Type |
Diesel fuel |
|||
|
Type |
Water-cooled four-stroke,, direct injection, turbocharged |
|||
|
Exhaust（ml） |
9726 | |||
|
Max output power/rotate speed (hp /rpm ) |
336/2800 |
|||
|
Braking system |
Service Brake |
Compressed air brake |
||
|
Park Brake |
Spring energy |
|||
|
Auxiliary brake |
engine exhaust brake |
|||
|
Eletric system |
24v |
|||
|
Upper-Body specification |
||||
|
Material of tank |
material : Q235，Thickness :3mm (side) 4mm(bottom) |
|||
|
Swing arm operating system |
Power take-off, balance valve, oil pipe, fuel tank, oil pump, manual mutil-way reversing valve, balance valve, one-way hydraulic lock, etc. |
|||
|
Especially suitable for |
Short distance transportation, sanitation department cleaning, transportation, etc. |
|||
|
Garbage bin |
Divided into pit-type swing arm bins, ground-type swing arm bins(trapezoidal bucket, square bucket, sealed bucket) |
|||
|
Swing arm maximum pivot angle |
145° |
|||
|
Hoisting time |
30s |
|||
|
Unloading time |
50s |
|||
|
Controlling way |
Manualy and electrical control |
|||
The swing system use complete sets of equipment, safe and reliable, we have domestic brand and imported brand for optional.
Arm swing arm roll garbage truck is transporting kinds of garbage in residential areas, streets, and the factory,etc. Usually one arm roll arm swing garbage truck can be equipped with many skip loader refuse bin or bucket.
Swing Arm Garbage Truck is also called Swing arm refuse truck, garbage collecting truck, garbage transport truck, It is widely used in garbage disposal in street , school and other places.
Side Lift Swing Arm Garbage Truck is constructed 12# low alloy steel and 4mm carbon steel, the body is fitted on the chassis by the truck beam.
Swing arm type garbage truck is applicable to the national common garbage bucket, with self-discharging function, hydraulic operation, garbage bucket can be lifted by itself.
Swing arm garbage truck is mainly used in transporting kinds of garbage in residential areas, streets, and the factory,etc.
