Brand:
heritagetrucksolution.COMModel No.:
CL5100JGKZZ20TMinimum Order Quantity:
1 UnitPrice:
USD 45500Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
HOWO 20 Meters Manual Controlled Telescopic Truck Mounted Aerial Platforms
HOWO Manual Controlled Telescopic Truck Mounted Aerial Platforms is a Aerial Platform Truck. It has four telescopic arms and supports people to work in 20 meters high and the arm shaft is compact,flexible and it needs small operating range, supports to work in narrow places. Four H type hydraulic supporting legs are used for the platform and have large span and good stability, which can be stretch out and draw back both independent.
Quick Details
|
Chassis Brand |
HOWO |
|
Horsepower |
120hp |
|
LHD/RHD |
LHD |
|
Type |
Telescopic Type |
|
Working Height |
20 meters |
| Color |
As requirements |
Applications
HOWO 20 Meters Manual Controlled Telescopic Truck Mounted Aerial Platforms is mainly used for municipal engineering, municipal works, streetlight repair and maintenance, garden works, hotel decoration, building engineering work, electric power works, factory, large exhibition hall etc. And it is high efficiency and great performance with good safety.
Competitive Advantages
1. It uses SINOTRUK HOWO single row chassis, which has choices for both LHD and RHD. And the cab has advanced design with fully automatic welding manipulator ABB.
2. It is telescopic type, which supports to work in narrow places compared with folding types. The working altitude can reach to 20 meters . And the bucket loading capacity is about 200KG with non-slip body.
3. Front H and rear H legs, good stability, which can be operated at the same time or independently, and adapt to a variety of working conditions.
4. Manual controlled, automatic limit, alarming when in dangerous work, excellent safety performance.
5. Slewing mechanism adopts adjustable type, which is easy to adjust.

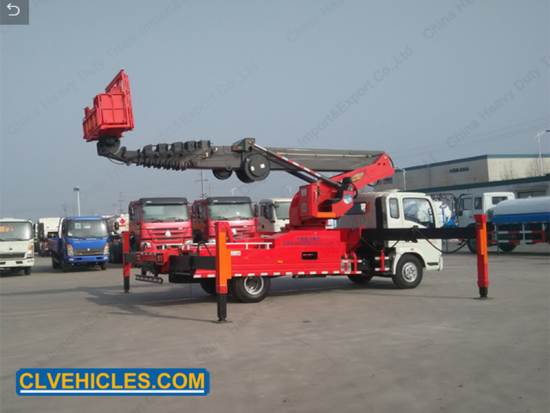

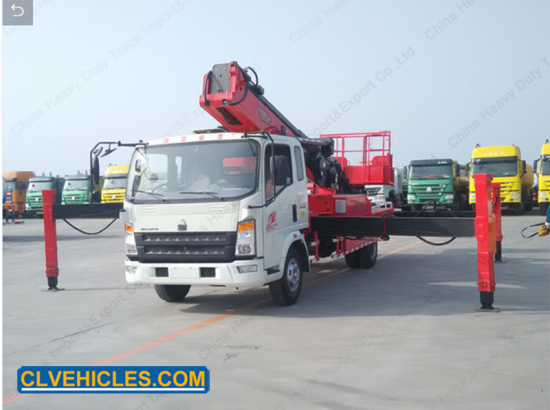

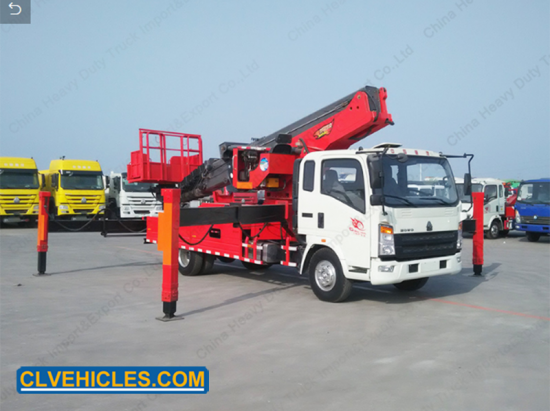

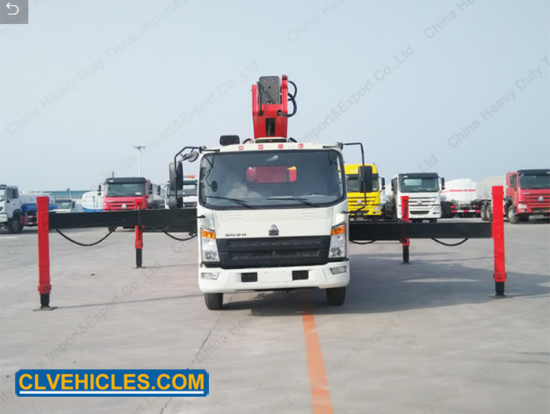

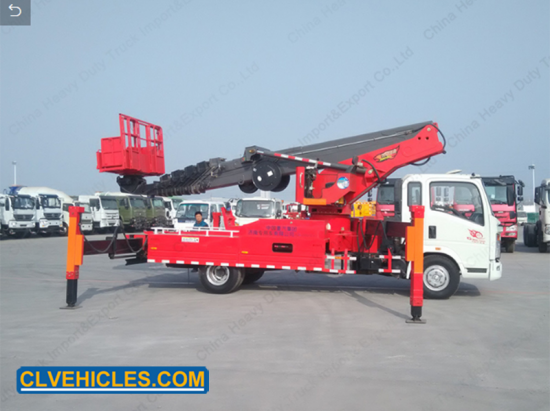

Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Chassis Specification |
||||
|
Truck model |
CL5100JGKZZ20T |
|||
|
Cab |
HOWO one and ha half row seats |
|||
|
Driving Type |
4*2 Left hand driving |
|||
|
Max Speed (km/h) |
95 |
|||
|
Overall dimension (mm) |
Appro. 8350*1980*3100 |
|||
|
GVW (kg) |
Appro. 10450 |
|||
|
Mass in working order( kg) |
Appro. 8500 |
|||
|
Wheelbase (mm) |
3360 |
|||
|
Tire |
8.25R16 |
|||
|
Clutch |
Single-plate dry diaphragm spring clutch |
|||
|
Steering |
Hydraulic steering with power assistance |
|||
|
Gear box |
WLY6T46 |
|||
|
Bridge |
Front axle load-bearing |
2.7 tons |
||
|
Rear axle load-bearing |
7.2 tons |
|||
|
Engine |
Brand |
CHAOCHAI |
||
|
Model |
CY4102BZLQ |
|||
|
Fuel Type |
Diesel fuel |
|||
|
Emission Standard |
Europe II |
|||
|
Type |
Water-cooled four-stroke, supercharged inter-cooling, turbo charged |
|||
|
Exhaust (ml) |
3856 |
|||
|
Max output power/rotate speed (hp /rpm ) |
120/2800 |
|||
|
Max torque/rotate speed (N.m/rpm) |
392/1400-1800 |
|||
|
BrakingSystem |
Service Brake |
Air brake |
||
|
Park Brake |
Spring energy |
|||
|
Electric system |
24V |
|||
|
Special Function |
||||
|
Working height (m) |
20 |
|||
|
Max working radius (m) |
8 |
|||
|
Boom type |
Four sections telescopic boom |
|||
|
Rated loading in the bucket(kg) |
250 |
|||
|
Bucket size (mm) |
1300*1000*1000 |
|||
|
Rotating speed (r/min) |
0-2 |
|||
|
Rotation Angle |
360°continuously |
|||
|
Span of supporting legs |
Horizontal |
Appro. 3500mm |
||
|
longitudinal |
Appro. 4000mm |
|||
|
Boom Control mode |
1.Bucket control 2.Manual operation |
|||
|
Supporting legs |
Four hydraulic supporting legs with manual operation |
|||
|
Working Condition: |
1.Altitude: 0-4500m 2.Temperature: -350C~+450C 3.Relative humidity: 80% 4.Wind force: ≤8 degree |
|||
