Synchronous chip seal truck is one of the most successful road-resurfacing methods, designed to extend the life of a road’s driving surface. The chip seal process involves applying a layer of asphalt emulsion and aggregate rock over the road. The process consists of liquid asphalt, immediately followed by rock chips.
Brand:
heritagetrucksolution.COMModel No.:
CL5252GLQZ5Minimum Order Quantity:
1 UnitPrice:
USD 96000Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

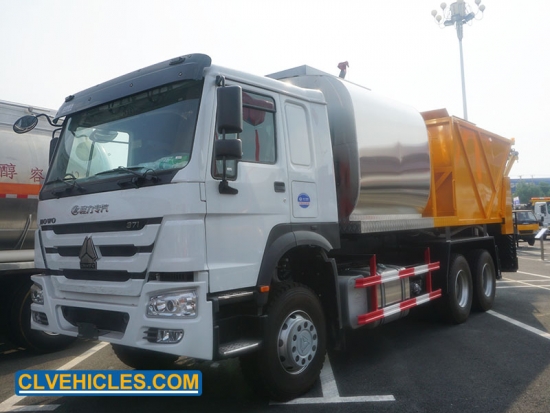

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcHOWO 6x4 Synchronous Chip Sealer with 8CBM Asphalt Tank 12CBM Chip Bucket
Synchronous Chip Sealer can perform asphalt binder spraying and chip spreading processes synchronously, which allows full contact between binders and aggregates, thus resulting in maximum cohesive performance. It can also separately spray or spread asphalt or aggregate in special conditions.
Quick Details
|
Chassis Brand |
HOWO |
|
Capacity of Asphalt Tank |
8000L |
|
Capacity of Chips Bucket |
12000L |
|
Max Spray Width |
4.2m |
| Spray Amount | 0.25-4L/m2 |
Applications
Synchronous Chip Spreader Truck is to synchronize the intelligent asphalt sprayer and the screw chip spiral spreader, so that the surface contact between the asphalt binder and the stone chip can be achieved in the quickest time. The special construction equipment for maximum adhesion is used for the gravel seal process on the highway surface, bridge deck waterproofing, and under seal layer.
|
|
|
|
Full computer control in driving cab, only need one worker |

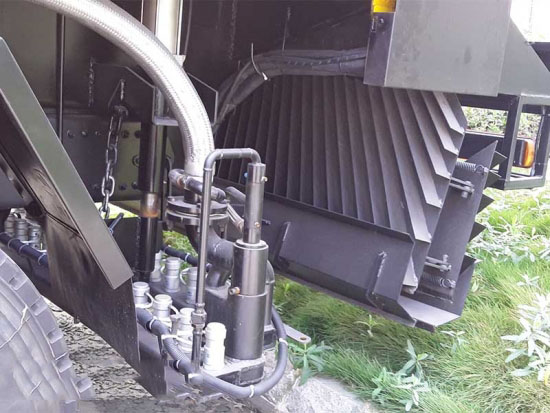

Each nozzle is separately managed and independently controlled |
|
|
|
|
Italy Riello burner indirect heating by heat transfer oils |
High viscosity asphalt pump for all kinds of modified asphalt, cutback asphalt and mulsified asphalt |
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Vehicle Description |
|||||
|
Vehicle model |
Chip sealer |
Overall dimensions (mm) |
10250x2500x3650 |
||
|
GVW (kg) |
Appro×25000 |
Fact loading capacity (L) |
8000+12000 |
||
|
Mass in working order (kg) |
Appro×17370 |
Max. Speed (km/h) |
90 |
||
|
Chassis Description |
|||||
|
Chassis Model |
ZZ1257 |
||||
|
Cab |
Standard cabin withRight hand drive |
||||
|
Color |
Optional |
||||
|
Allowable person in cab |
2/3 |
||||
|
Wheel base (mm) |
4600+1350 |
||||
|
Front/Rear track base (mm) |
2022/1830/1830 |
||||
|
Front/Rear overhang (mm) |
1500/2545 |
||||
|
Number of axles |
3 |
||||
|
Axle |
Front axle |
7000 |
|||
|
Rear axle |
13000/13000 |
||||
|
Traction system |
6x4 |
||||
|
Operation control system |
Power steering |
||||
|
Braking system |
Full air |
||||
|
Electric system |
24V |
||||
|
Transmission |
HW19710 10 speeds + 2 rear |
||||
|
Spring plate |
9/12 |
||||
|
Tire specification |
12.00R20 |
||||
|
Tire quantity |
10+1 |
||||
|
Engine Description |
|||||
|
Engine manufacture |
SINOTRUK WEICHAI POWER CO., LTD |
||||
|
Engine model |
WD615.69 |
||||
|
Emission standard |
Euro 2 |
||||
|
Exhaust/output |
9726/247 |
||||
|
Horse power |
336 |
||||
|
Up-parts Description |
|||||
|
Asphalt tank Total Volume(L) |
8000 |
||||
|
Chippings bucket Total Volume(L) |
12000 |
||||
|
Insulating layer thickness (mm) |
80 |
||||
|
Hydraulic pump |
50-20-16 |
||||
|
Proportional valve |
Taiwan EFBG-03-160-HF |
||||
|
Asphalt pump |
QGB680 |
||||
|
Hydraulic motor for asphalt pump |
05-110-BD31 |
||||
|
Heating System |
Italian burner Riello (G20) |
||||
|
Heat-transfer oil pump |
40-25-160 |
||||
|
Control System |
SIEMENS CLW-32-01 |
||||
|
Generator |
5.5KW gasoline engine generator |
||||
|
Number of nozzle |
32 |
||||
|
Spray medium |
Hot asphalt/ Hot modified asphalt/ Cutback asphalt/ Emulsified asphalt |
||||
|
Spray width(m) |
4 |
||||
|
Spray amount(L/m2) |
0.3-3.5 |
||||
|
Working Condition: |
1、Altitude: 0-4500m 2、Temperature: -350C~+450C 3、Relative humidity: 80% 4、Wind force: ≤8 degree |
||||
Synchronous chip seal truck is one of the most successful road-resurfacing methods, designed to extend the life of a road’s driving surface. The chip seal process involves applying a layer of asphalt emulsion and aggregate rock over the road. The process consists of liquid asphalt, immediately followed by rock chips.
Synchronous chip seal truck is one of the most successful road-resurfacing methods, designed to extend the life of a road’s driving surface. The chip seal process involves applying a layer of asphalt emulsion and aggregate rock over the road. The process consists of liquid asphalt, immediately followed by rock chips.
Synchronous chip seal truck is one of the most successful road-resurfacing methods, designed to extend the life of a road’s driving surface. The chip seal process involves applying a layer of asphalt emulsion and aggregate rock over the road. The process consists of liquid asphalt, immediately followed by rock chips.
Fire truck refers to a vehicle designed and manufactured to be suitable for firefighters to take, equipped with various firefighting equipment or fire extinguishing agents, and used by firefighting forces for firefighting, auxiliary firefighting or fire rescue.
Tank shaped use the advanced welding technology, end socket arc butt welding, and the once-forming of composite steel-plastic technology. Equipped with active and passive safety devices to meet an emergency and can load and unload the material in long distance and completely close condition.

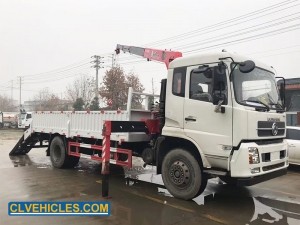

A crane mounted on a truck carrier provides the mobility for this type of crane. This crane has two parts: the carrier, often referred to as the Lower, and the lifting component which includes the boom, referred to as the Upper.
