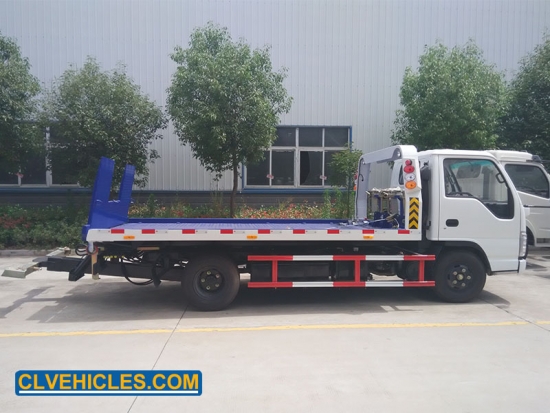

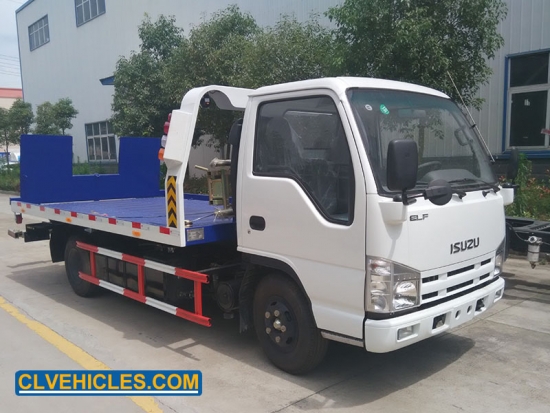

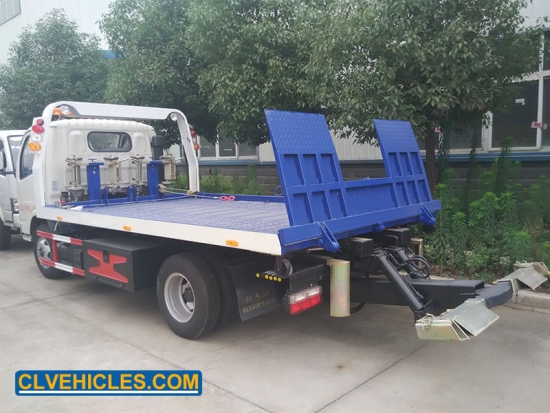

ISUZU 600P 4 ton deck slide bed wrecker tow truck
Wrecker is also called the road emergency vehicle,mainly used in road fault vehicle, urban peccancy vehicles and emergency rescue.
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
Wrecker Tow Truck is equipped with emergency operation equipment .When the car is breakdown on the road, an accident is happend, especially on high grade highway, wrecker's mission is to towing the trouble truck or car away from the site of accident, to ensure the road unimpeded.
Brand:
heritagetrucksolution.COMModel No.:
CL5042TQZD5Minimum Order Quantity:
1 UnitPrice:
USD22900Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcISUZU 4.2m Length Platform Towing Truck
The tow truck wrecker is also called road wrecker truck, tow truck wrecker, wrecker towing truck, wrecker, road block removal truck, breakdown truck, tow truck, recovery truck, etc.
Our tow truck consists of the chassis, hoisting equipment,truck tow hook, tow truck winch, tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes.
Quick Details
| Deck Loading | 4000kg |
|
Deck Length |
4200mm |
|
Chassis Brand |
ISUZU 100P |
|
Max Lifting Capacity of Under Lift |
2500kg |
|
Max Towing capacity of under Lift |
4000kg |
|
Max Pulling Force of Winch |
4000kg |
Applications
Wrecker tow truck is used to move disabled, improperly parked, impounded, or otherwise indisposed motor vehicles. This may involve recovering a vehicle damaged in an accident, returning one to a drivable surface in a mishap or inclement weather, or towing or transporting one via flatbed to a repair shop or other location.
|
|
|
|

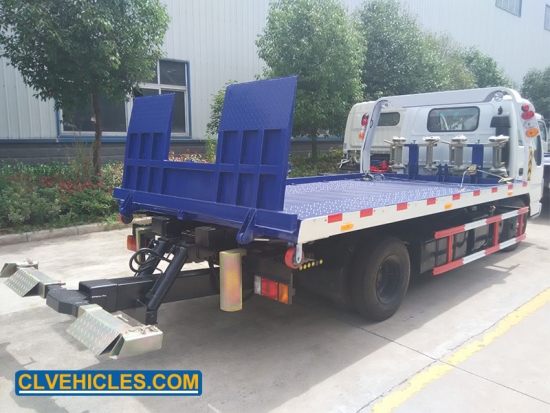

A pair of training wheels makes towing working easily when wheels are damaged |
Extra Strength Winch with 21 meters steel cable |
|
|
|
|
Manual joystick with instructions on side body of the truck makes control work easily |
The tire belt keep car stability on wrecker truck |
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Truck Specification |
||
|
Truck model |
CL5042TQD5 |
|
|
Cab |
ISUZU 100P single row cabin |
|
|
Driving Type |
4*2 |
|
|
Max Speed (km/h) |
103 |
|
|
Overall dimension（mm） |
5905*2380*2250 |
|
|
Mass in working order（ kg） |
3200 |
|
|
GVW（ kg） |
4500 |
|
|
Wheelbase（mm） |
3360 |
|
|
F/R track base（mm） |
1504/1522 |
|
|
F/R overhang（mm） |
1015/2475 |
|
|
Approach/Departure Angel |
16/12 |
|
|
Tire |
7.00-15 |
|
|
Clutch |
Single-plate dry diaphragm spring clutch |
|
|
Steering |
Hydraulic steering with power assistance |
|
|
Gear box |
MSB 5-speed gear box |
|
|
Bridge |
Front axle |
1.8T |
|
Rear axle |
2.6T |
|
|
Enging |
Model |
4JB14N |
|
Horse power |
98HP |
|
|
Displacement |
2771L |
|
|
Braking system |
Service Brake |
Compressed air brake |
|
Park Brake |
Spring energy |
|
|
Eletric system |
24v |
|
|
Upper-Body specification |
||
|

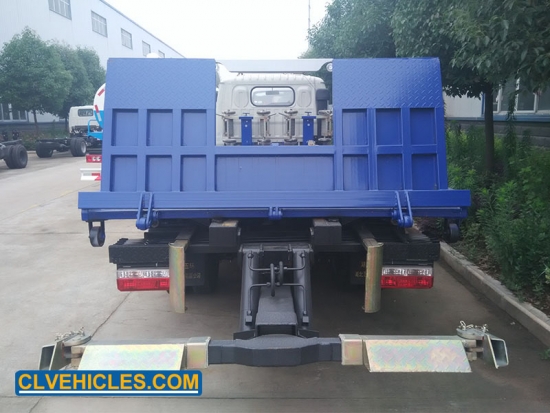

Hydraulic Under Lift at Rear |
||
|
Max Lifting weight(kg) |
2500 |
|
|
Max. Rated towing weight(kg) |
4000 |
|
|
Max effective length of boom (mm) |
1700 |
|
|
Extension traveling of boom (mm) |
1340 |
|
|
Hydraulic winches & steel cables |
||
|
Type: |
Planetary type |
|
|
Quantity (set) |
1 |
|
|
Max. Pulling power of winch (kgs) |
4000 |
|
|
Length of steel cable(m) |
21 |
|
|
Speed of winch (m/min) |
3.23 |
|
|
Diameter of winch(cm) |
11 |
|
|
Back load platform |
|
|
|
External dimension of platform (length×width)(mm) |
4200*2100 |
|
|
Max. Loading of platform(kgs) |
4000 |
|
|
Min. Elevation of full extending platform ° |
10 |
|
|
Extension traveling of platform |
3000 |
|
|
Power take off |
||
|
Type |
PTO drive from transmission |
|
|
Wrecker Operation |
||
|
Description |
Panel board comprising joysticks and hydraulic meters installed in a suitable place out of crew cabin. |
|
|
Hydraulic System |
||
|
Description |
uitable capacity gear pumps for boom movement, telescoping cylinder, power steering and control valves & control system shall be with adequate size oil reservoir, integral oil cooler, valves etc. |
|
|
Safety Device |
||
|
Auto brake for winch |
Automatic safe brake in case winch / Engine fail. |
|
|
Hydraulic valves |
Necessary hydraulic pressure relief & lock valve/ valves |
|
Wrecker is also called the road emergency vehicle,mainly used in road fault vehicle, urban peccancy vehicles and emergency rescue.
Wrecker Tow Truck is equipped with emergency operation equipment .When the car is breakdown on the road, an accident is happend, especially on high grade highway, wrecker's mission is to towing the trouble truck or car away from the site of accident, to ensure the road unimpeded.
Tow truck is also called tow truck wrecker, road wrecker,truck wrecker,road recovery truck,recovery truck vehicle,rotator wrecker,flatbed wrecker,flat bed tow truck,etc.
The deck rollback tow truck can hoist, lift, draw and be with other special functions, mainly used in highway, garage and city road obstacle cleaning.
Wrecker Tow Truck is equipped with emergency operation equipment .When the car is breakdown on the road, an accident is happend, especially on high grade highway, wrecker's mission is to towing the trouble truck or car away from the site of accident, to ensure the road unimpeded.
Wrecker Tow Truck is equipped with emergency operation equipment .When the car is breakdown on the road, an accident is happend, especially on high grade highway, wrecker's mission is to towing the trouble truck or car away from the site of accident, to ensure the road unimpeded.
