Garbage Compactor Hydraulic system is equipped with dual pumps and dual circuits (popular in Europe) to improve the energy efficiency.The materials of upper parts fundamentally guarantee the performance and service life.
Brand:
heritagetrucksolution.COMModel No.:
CL5160YSLJ1Minimum Order Quantity:
1 UnitPrice:
USD61000Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

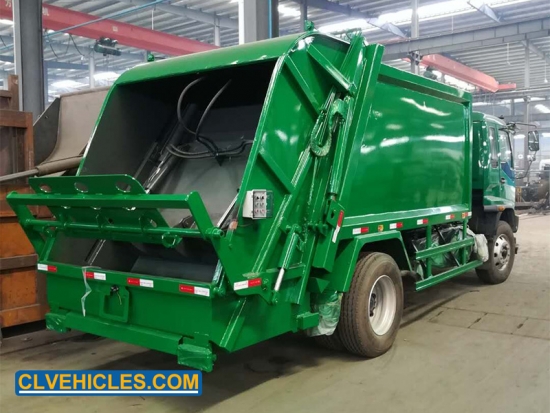

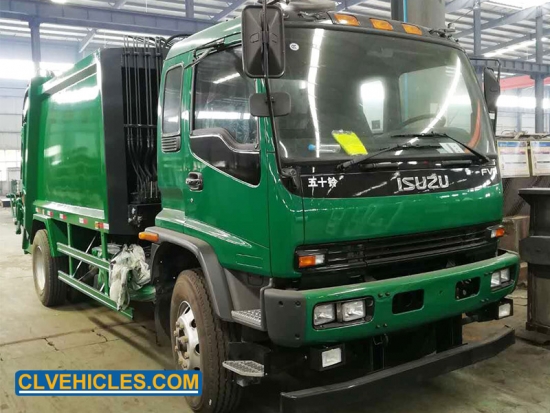

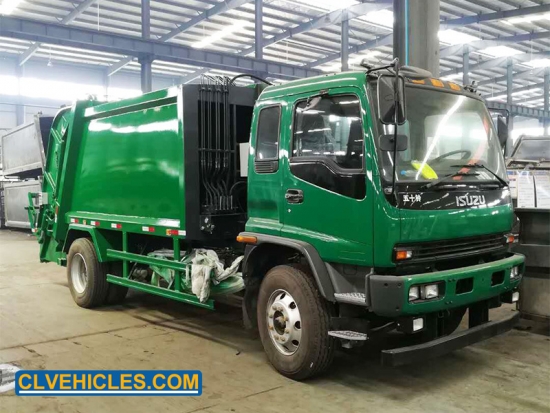

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcISUZU FVR 14CBM Japanese brand garbage compactor truck
Garbage truck is a type of special vehicle used for municipal sanitation to transport various types of garbage. Garbage trucks are classified into: compact garbage trucks, dump trucks, swing arm garbage trucks, pull arm garbage trucks, hook-arm garbage trucks, sealed garbage trucks, and hanging buckets. Garbage truck (self-loading garbage truck). We can offer 4x2, 6x4, Dongfeng, Foton, Forland, JAC, JMC various chassis garbage trucks. Welcome to inquiry us!
Quick Details
| Chassis Brand | ISUZU |
| Volume of Garbage Tank | 14000L |
| Filling Cycle Time | 50-60s/once |
|
Hydraulic Pressure |
16Mpa |
Applications
The garbage compactor truck (garbage compacting truck) is used to collect, transport and clearing up wastes, advoiding the secondary pollution. Features of the garbage dump truck, one kind of new environmental truck, are easy, effective, and enviromental.
Garbage compactor truck is widely used in sanitation organization, municipal administration, mining area, property area, residential area, and many other places where garbage is centralized.
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Truck Specification |
||||
|
Cab |
Single row cab |
|||
|
Driving Type |
4*2 Left hand driving |
|||
|
Max Speed (km/h) |
115 |
|||
|
Overall dimension（mm） |
8865×2200×2300 |
|||
|
GVW（ kg） |
16000 |
|||
|
Mass in working order（ kg） |
11000 |
|||
|
Wheelbase（mm） |
4700 |
|||
|
F/R track base（mm） |
1569/1530 |
|||
|
F/R overhang（mm） |
1068/1997 |
|||
|
Approach/Departure Angel |
22/25 |
|||
|
Tire |
11.00-20 |
|||
|
Clutch |
Single-plate dry diaphragm spring clutch |
|||
|
Steering |
Hydraulic steering with power assistance |
|||
|
Gear box |
6-speed |
|||
|
Bridge |
Front axle |
6.3T |
||
|
Rear axle |
13T |
|||
|
Enging |
Model |
6HK1-TCNG40 |
||
|
Fuel Type |
Diesel fuel |
|||
|
Type |
Water-cooled four-stroke,, direct injection, turbocharged |
|||
|
Exhaust（ml） |
7780 |
|||
|
Max output power/rotate speed (hp /rpm ) |
241/2400 |
|||
|
Braking system |
Service Brake |
Compressed air brake |
||
|
Park Brake |
Spring energy |
|||
|
Auxiliary brake |
engine exhaust brake |
|||
|
Eletric system |
24v |
|||
|
Upper-Body specification |
||||
|
Material of tank |
material : Q235，Thickness :4(mm) side /4(mm) rear |
|||
|
dirty tank volume |
14m³ |
|||
|
filler volume |
500L |
|||
|
filing time(s) |
8~10s |
|||
|
filling cycle time(s) |
50~60s/once |
|||
|
Discharge type |
Dumping |
|||
|
Time for dumping |
30-40S |
|||
|
Hydraulic pressure |
16mpa |
|||
|
Controlling way |
Manualy and electrical control |
|||
|
Hydraulic pump |
532 model |
1 set | ||
|
Multi-way valve |
DL-15B-6 |
1 set | ||
|
Flap cylinder |
80/45-410*180 |
2 set | ||
|
Lifting cylinder |
80/45-900*580 |
2 set | ||
|
Scraper cylinder |
80/45-700*415 |
2 set | ||
|
Skateboard cylinder |
90/50-980*670 |
2 set | ||
|
Push plate cylinder |
YSTB-1180*2420 |
1 set | ||
|
The electromagnetic valve |
UZCT-115/24V |
2 set | ||
Compression standard: high-quality carbon steel box of WISCO, strengthen the base plate with support, two-way compressed, easy to clean sewage box open mode, filler for overall concentric shaft structure.
Compression garbage collection truck adopts domestic advanced design concept, with the characteristics of uniform force, stable structure and reliable performance.

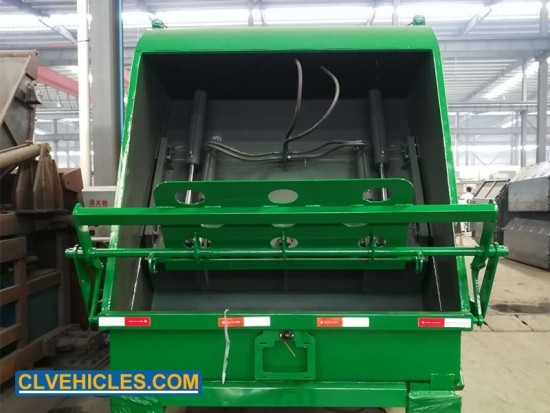

Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.
Compactor garbage truck is the new type of sanitation vehicle that for collects and transfers the garbage, avoid secondary pollution.
The compactor garbage truck adopts PLC mechine Electro-hydraulic integration, control system. Through the car filler device and other special equipment to achieve garbage into, strong filling.
The collection garbage truck is controlled both manually and electronically, which is the best program for controlling compressed trucks in China.
