ISUZU GIGA VC61 460hp 10wheeler Euro5 Tractor Head
Tractor truck head VC61 GIGA heavy trucks isuzu engine with great price
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
The truck is easy to handle and technical content, performing efficient power with low emissions and has a human-oriented design.
Brand:
heritagetrucksolution.COMModel No.:
CL20200433Minimum Order Quantity:
1 UnitPrice:
USD 62,850 FOB ShanghaiPayment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc

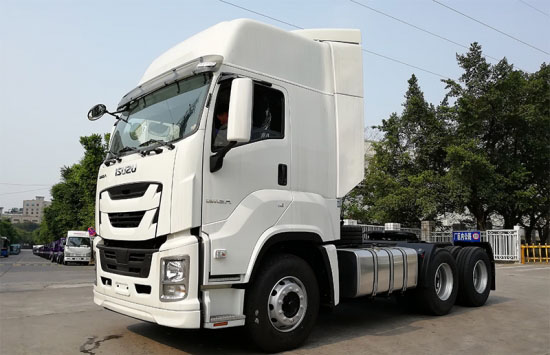

Brand New ISUZU GIGA 6X4 420HP Heavy Duty 60Tons Tractor Head Truck For Sale
New ISUZU giga series heavy tractor truck started production since the year 2017 in China, it is equal to Japan ISUZU giga series heavy truck and totally compatible with Japan ISUZU giga series in both spare parts and after sales service, with the most competitive price and excellent performance.
Quick Details
| Condition | NEW |
| Driving Wheels | 6x4 |
|
Emission Standard |
EURO V |
|
Chassis Brand |
ISUZU |
| Transmission TypeManual | Manual |
|
Fuel Type |
Diesel |
|
Engine |
ISUZU 6WG1-TCG52 |
Applications
A tractor is a general large truck or semi-trailer that is towed by a tool between the front and the car. That is, the front of the car can be pulled out of the original car and pulled out of other cars. The car can also be pulled away from the original head by other fronts. . The front of the car with the driving ability is called the tractor, and the car without the traction drive capability is called the trailer. The trailer is towed by the tractor. There are two ways to connect the tractor to the trailer: the first is that the front half of the trailer is placed on the traction saddle above the rear section of the tractor, and the bridge behind the tractor is subjected to a part of the weight of the trailer, which is half-hook; The front end of the trailer is connected to the rear end of the tractor. The tractor only provides the forward pulling force and drags the trailer to go, but does not bear the downward weight of the trailer. This is the full hanging.
Competitive Advantage
1. The transmission efficiency is about 1% - 2% higher than that of domestic axles of the same grade
2.Adopt the unique silent gear design of Meritor, which is about 6dB lower than the noise of most axles of the same level
3. Meritor original brake, greater braking torque; Meritor material brake disc / drum, wear-resistant and high temperature resistant; world famous friction plate, environmental protection and safety
4. Super wide speed ratio range (2.64-6,14)
5. The strengthened punching welding of bridge shell and friction welding of shaft head can meet the heavy load needs of emerging markets
6. Imported hub combination oil seal, better sealing and longer service life
7. Standard ABS sensor to enhance vehicle stability and controllability
8. Efficient oil lubrication system, oil change interval up to one year or 160000 km (approved by Meritor)
9.Wheel oil lubrication, maintenance free
Production line
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Truck model |
QL4250W1NDZ |
||
|
Cab |
High proof cab with sleeper, Multi-function instrument, direction booster, central control lock, electric window, with air conditioning |
||
|
Driving Type |
6*4 Left hand driving |
||
|
Max Speed (km/h) |
80 |
||
|
Overall dimension（mm） |
6895*2540*3970 |
||
|
GVW（kg） |
25000 |
||
|
Mass in working order（kg） |
9006 |
||
|
Wheelbase（mm） |
3385+1370 |
||
|
F/R track base（mm） |
2065/1875 |
||
|
F/R overhang（mm） |
1370/770 |
||
|
Approach/Departure Angel |
17/42 |
||
|
Tire |
315/80R22.5 (10+1) |
||
|
Clutch |
∮430 diaphragm spring clutch |
||
|
Steering |
Hydraulic steering with power assistance |
||
|
Gear box |
ZF 16S2030TO, ( 16-speed front gear+ 2-speed reverse gear) |
||
|
Bridge |
Front axle |
7,000kgs |
|
|
Rear axle |
18,000kgs Ratio 3.909 |
||
|
Engine |
Model |
ISUZU 6WG1-TCG52 |
|
|
Fuel Type |
Diesel |
||
|
Type |
In-line, Six-cylinder, Four-stroke, Water-cooled, Direct Injection, Turbocharged |
||
|
Exhaust（ml） |
15681 |
||
|
Max output power/rotate speed (hp /rpm ) |
420HP/2100rpm |
||
|
Max torque/rotate speed(N.m/rpm) |
2060Nm @ 1300-1600rpm |
||
|
Braking system |
Service Brake |
dual circuit compressed air brake |
|
|
Park Brake |
spring energy, compressed air operating on rear wheels |
||
|
Auxiliary brake |
engine exhaust brake |
||
|
Electric system |
Operating voltage: 24 V, negative grounded; Starter: 24 V, 5.4 Kw, Alternator: 3-phrase, 28 V, 1000 W; Batteries: 2 x 12 V, 165 Ah; |
||
|
Standard equipment |
600L Fuel Tank / Traction base :90# / 50# |
||
Tractor truck head VC61 GIGA heavy trucks isuzu engine with great price
12 forward gears and two reverse gears. Max output torque 2,000 Nm. Rear auxiliary transmission introduces the planetary gear train with even loads.
The short-stroke synchronizer ensures smooth and convenient gearshift. The integrated gearshift mechanism plus the precise control achieves smooth gear shifting.
On snow or muddy roads, the traction control system can ensure smooth acceleration performance and prevent the vehicle from transverse movement or tail flick due to the slippage of the driving wheels.
The truck is equipped with ZF or Fast transmission. Proofed for many different road conditions and applications.
With crawler gear, better grade ability due to higher 1st gear ratio, adaptable for off-road operations. Optimized ratio steps and bigger ratio spread provides less fuel and more power.
