Brand:
heritagetrucksolution.COMModel No.:
CL5050JGKJAC14FMinimum Order Quantity:
1 UnitPrice:
USD 27000Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc

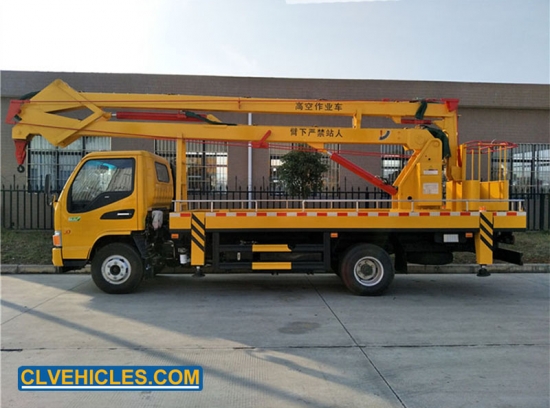

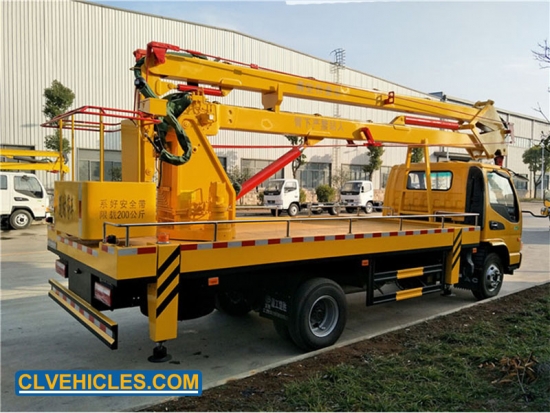

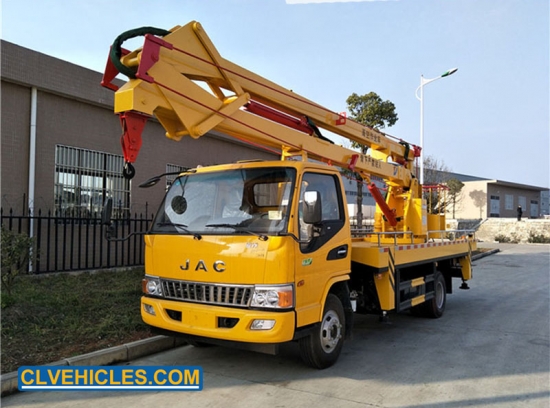

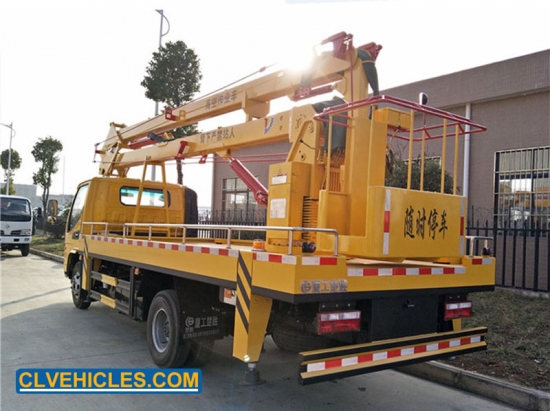

JAC 6 Wheels 12 Meters Folding Type Hydraulic Aerial Truck
JAC Hydraulic Aerial Truck is a folding type Bucket Truck. It has three arms and supports people to work in 12 meters high and the arm shaft is compact,flexible and large operating range. Four H type hydraulic supporting legs are used for the platform and have large span and good stability, which can be stretch out and draw back both independent.
Quick Details
|
Chassis Brand |
JAC |
|
Horsepower |
92hp |
|
LHD/RHD |
LHD |
|
Type |
Folding Type |
|
Working Height |
12 meters |
| Color |
As requirements |
Applications
The JAC 6 Wheels Hydraulic Aerial Truck is a folding type Bucket Truck. It is mainly used for municipal engineering,municipal works, streetlight repair and maintenance, garden works, hotel decoration, building engineering work, electric power works, factory, large exhibition hall etc. And it is high efficiency and great performance with good safety.
Competitive Advantages
1.It uses JAC single row chassis, which has choices for both LHD and RHD. And the cab has advanced design with fully automatic welding manipulator ABB.
2.It is folding type, which has price advantage compared with telescopic type Bucket Truck. The working altitude can reach to 12 meters . And the bucket loading capacity is about 200KG with non-slip body.
3.Front H and rear H legs, good stability, which can be operated at the same time or independently, and adapt to a variety of working conditions.
4.Computer controlled, automatic limit, alarming when in dangerous work, excellent safety performance.
5.Slewing mechanism adopts adjustable type, which is easy to adjust.
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
|
Truck According to your request, choose good chassis and refit it to truck.
Upper Body design function parts.
Customization
Spare Parts on trucks as tank and box. |
 |
Product Parameters
|
Chassis Specification |
|||
|
Truck model |
CLW5030JGKJAC12F |
||
|
Cab |
JAC single row seats |
||
|
Driving Type |
4*2 Left hand driving |
||
|
Max Speed (km/h) |
90 |
||
|
Overall dimension (mm) |
7300*2080*2920 |
||
|
GVW (kg) |
Appro. 5490 |
||
|
Mass in working order( kg) |
Appro. 5160 |
||
|
Wheelbase (mm) |
3360 |
||
|
F/R track base (mm) |
1610/1550 |
||
|
F/R overhang(mm) |
1065/2125 |
||
|
Approach/Departure Angel |
27/15 |
||
|
Tire |
6.50R16 10PR |
||
|
Clutch |
Single-plate dry diaphragm spring clutch |
||
|
Steering |
Hydraulic steering with power assistance |
||
|
Gear box |
WLY6T100 6 forward speed |
||
|
Bridge |
Front axle |
1.5T |
|
|
Rear axle |
2.0T |
||
|
Engine |
Brand |
JAC |
|
|
Model |
HFC4DA1-1 |
||
|
Fuel Type |
Diesel fuel |
||
|
Emission Standard |
Europe II |
||
|
Type |
Water-cooled four-stroke, supercharged inter-cooling |
||
|
Exhaust (ml) |
2771 |
||
|
Max output power/rotate speed (hp /rpm ) |
92/3600 |
||
|
Max torque/rotate speed (N.m/rpm) |
225/1800-2200 |
||
|
BrakingSystem |
Service Brake |
Air brake |
|
|
Park Brake |
Spring energy |
||
|
Electric system |
12V |
||
|
Special Function |
|||
|
Working height (m) |
14 |
||
|
Max working radius (m) |
8 |
||
|
Boom type |
Twosections folding working boom |
||
|
Rated loading in the bucket(kg) |
200 |
||
|
Bucket size (mm) |
1200*600*1100 |
||
|
Rotating speed (r/min) |
0-2 |
||
|
Rotation Angle |
360° |
||
|
Supporting leg |
four sets hydraulic legs |
||
|
Span of supporting legs |
Horizontal |
3100mm |
|
|
longitudinal |
2930mm |
||
|
Boom Control mode |
Bucket control Manual operation |
||
