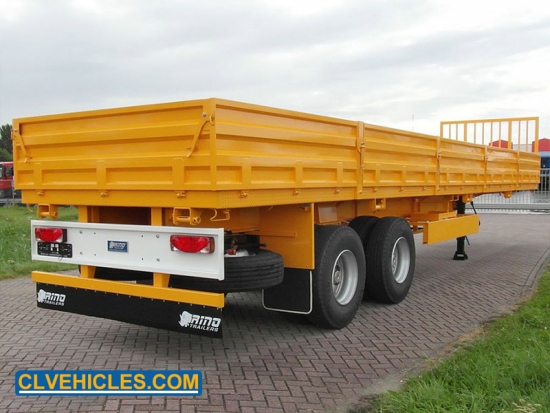

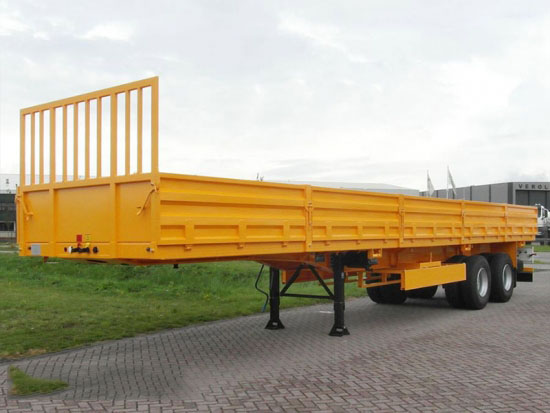

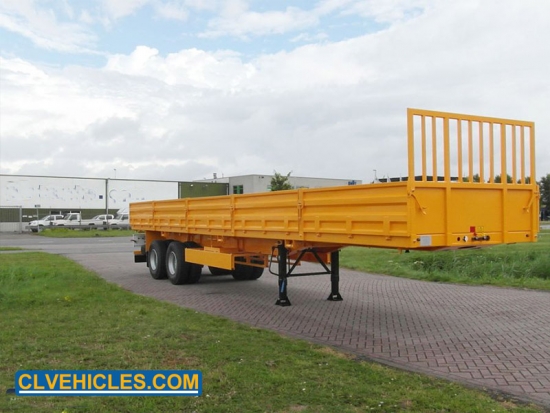

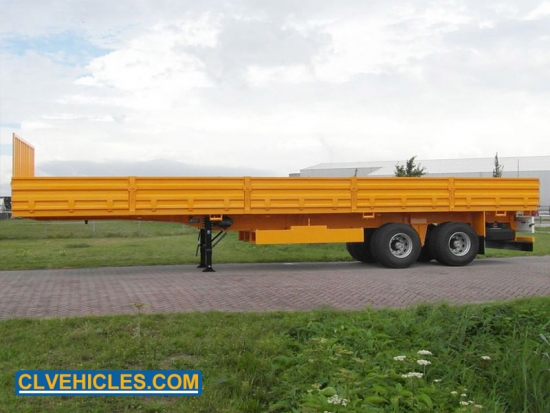

FUWA 3 Axle Cargo Stake Fence Semi-trailer
The Fence Cargo truck semitrailers are mainly suitable for the MID/Long distance transportation of fruits, vegetable,rice and the agricultural cargo and so on.
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
Side Wall Cargo Semi Trailer usually designed I beam,with high tensile steel,welded by automatic submerged-arc processes. we select FUWA axle and spare parts are from famous brands, stability is good.
Brand:
heritagetrucksolution.COMModel No.:
CL9401CCY1Minimum Order Quantity:
1 UnitPrice:
USD10880Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcTri-axle Side Wall Flatbed Semi Trailer Drop Side Insulated Cargo Trailer
Cargo Flatbed Trailer use through-going beam structure, has frame structure with flat type and goose neck type, also has high integral strength, small weight, beautiful appearance,safe and reliable operation.
Flatbed trailer with side panel use advanced manufacture technology , makes automatic submerged -arc welding for vertical beam, use shot blasting treatment for integral frame, removes welding stress effectively.
Quick Details
Semi-trailer type | Side wall cargo transport |
Length | 13000mm |
Loading capacity | 60000kg |
Axle |
FUWA |
Applications
The stake bed semi trailer generally has a flat bled enclosed by fence-like exterior. It is widely used to transport animals, steel coils, coals, and other light puffy cargoes.
1>High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.
2>The most skilled workers make welding of this flatbed trailer more frequent and strong.
3>Two pieces spare tire carriers, water tank, fuel tank etc, are optional accessories which build modern transportation.
4>We have standard side wall semi trailer which is with 3 axles and 50 tons loading capacity and 600mm height side wall. Meanwhile, we can have your trailer customized with options.
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
Product |
side wall semi-trailer |
||
Tare Weight |
About 7.6T |
||
Dimension |
Length: 13000mm(outside dimension) 12800mm( side wall dimension ) |
||
Width:2400mm(outside dimension) 2300mm( side wall dimension) |
|||
Height:2860mm(outside dimension) 800mm( side wall dimension ) |
|||
Loading Capacity |
60T |
||
Special function |
Side wall |
Height |
600mm-1800mm |
Open door |
Can be choose freely |
||
Running mechanism |
Side beam |
Thickness |
16mm |
Material |
Q235Carbon steel |
||
Main beam |
Height |
500mm |
|
Plate |
upper plate is 16mm, middle plate is 8mm(double and there plate), down plate is 18mm |
||
Material |
Q235Carbon steel |
||
Axle |
Brand |
FUWA |
|
Type |
13T |
||
Number |
3 pcs |
||
Rim |
Type |
9.0-22.5 |
|
Number |
12pcs |
||
Tyre |
Brand |
Doubles star |
|
Type |
12R22.5 |
||
Number |
12pcs |
||
Suspension |
American type mechanical suspension for 3 axle |
||
Spring leaf |
Leaf width |
90mm |
|
Leaf thickness |
13mm |
||
Layer/set |
10 Layer |
||
King pin |
Type |
Bolts type |
|
Diameter |
2.0 inch |
||
Brake system |
Air tank |
45L air tanks |
|
Brake chamber |
WABCO 6RELAY VALVE double Spring brake chamber |
||
ABS |
Without |
||

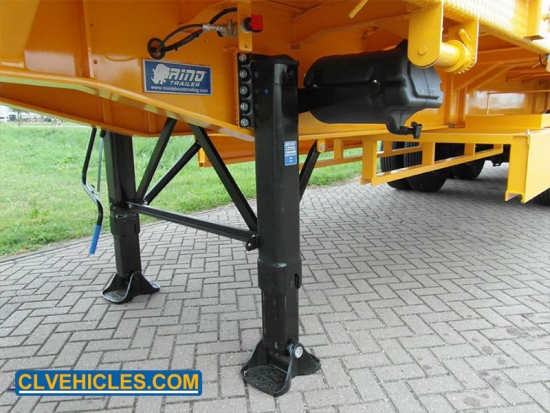

Landing gear |
Brand |
ZHONGXING BRAND |
|
Type |
Two speed manually operating , heavy duty landing gear 28T |
||
Accessories |

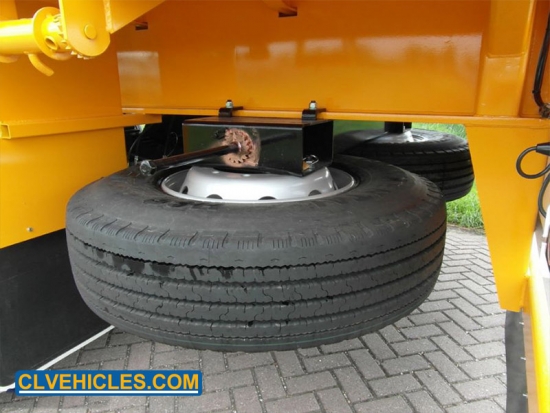

Spare tyre carrier |
1 set |
|
Light |
LED light |
||
Voltage |
24V |
||
Receptacle |
7 ways (7 wire harness) and quick change type |
||
Tool box |
One piece, 1m×0.5m×0.5m (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
||
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
