DFAC 4x2 6ton Hydraulic Hook Arm Lifting Garbage Truck
Best choice for small community, park, factory. This hook lift/arm lift small garbage truck can be seem almost everywhere in city.
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
Equipped with 2 lift oil cylinders , the trash can be lowered from the crane , the working cycle time ≤ 50S
Brand:
heritagetrucksolution.COMModel No.:
CLW5030GBLJ2Minimum Order Quantity:
1 UnitPrice:
USD9890Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcWaste Collector Hook Arm Garbage Truck with 2cubic meter Garbage Bin

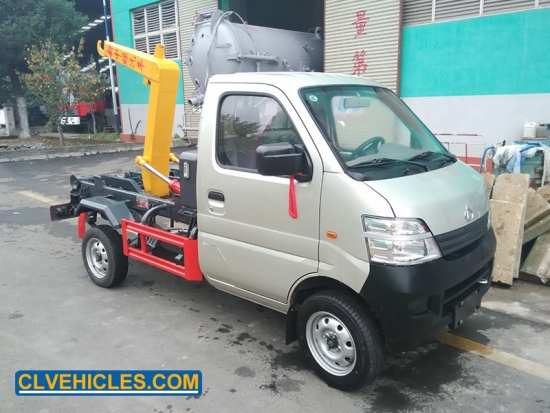

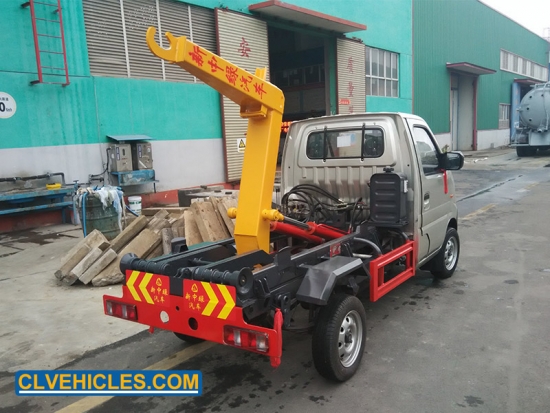

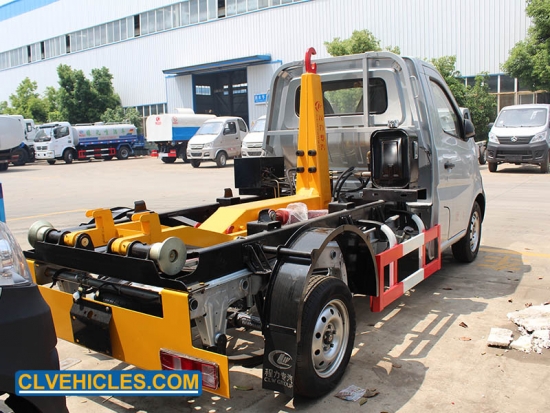

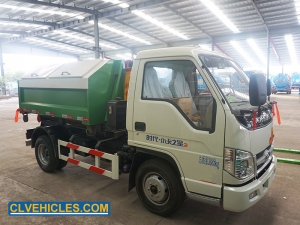

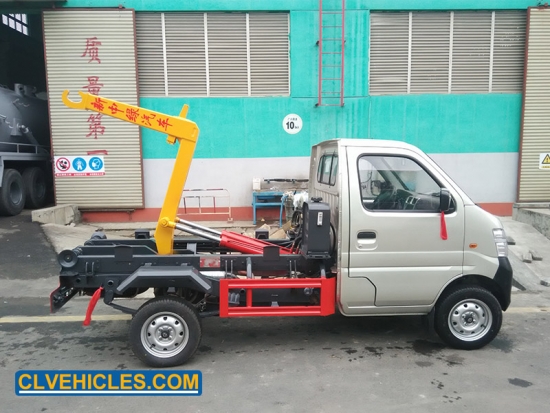

The hook-arm garbage truck is a special vehicle used for garbage transfer and unloading operations in urban garbage compression stations. It consists of a car chassis, a dump cylinder, a rear door cylinder, an attached frame, a garbage bin and a rear door swing lever. The operation is completed by the hydraulic control system, and the control mode can be manual or electrical control. It is mainly used for garbage removal in urban and rural garbage compression stations.
Quick Details
| Chassis Brand | CHANGAN |
| Carriage body volume | 2-3CBM |
| Filling Cycle Time | 50-60s/once |
|
Hydraulic Pressure |
20Mpa |
Applications
Hydraulic hooklift hoists are mounted on heavy duty trucks to enable hauliers to change out flatbeds, dumpster bodies, and similar containers. Primarily used in conjunction with tilt frame bodies and specialised containers, generally designed for the transportation of materials in the waste, recycling, scrap and demolition industries.
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Truck Specification |
||||
|
Chassis brand |
CHANGAN |
|||
|
Cab |
Single row cab |
|||
|
Driving Type |
4*2 Left hand driving |
|||
|
Max Speed (km/h) |
90 |
|||
|
Overall dimension（mm） |
5780×1900×2000 |
|||
|
GVW（ kg） |
4000 |
|||
|
Mass in working order（ kg） |
2835 |
|||
|
Wheelbase（mm） |
2600 |
|||
|
F/R track base（mm） |
1569/1530 |
|||
|
F/R overhang（mm） |
1068/1997 |
|||
|
Approach/Departure Angel |
22/25 |
|||
|
Tire |
6.00-15 |
|||
|
Clutch |
Single-plate dry diaphragm spring clutch |
|||
|
Steering |
Hydraulic steering with power assistance |
|||
|
Gear box |
5-speed |
|||
|
Bridge |
Front axle |
1.5T |
||
|
Rear axle |
3.5T |
|||
|
EngiNE |
Model |
N485QA
|
||
|
Fuel Type |
Diesel fuel |
|||
|
Type |
Water-cooled four-stroke,, direct injection, turbocharged |
|||
|
Exhaust（ml） |
1865 | |||
|
Max output power/rotate speed (hp /rpm ) |
48/3000 |
|||
|
Braking system |
Service Brake |
Oil brake |
||
|
Park Brake |
Spring energy |
|||
|
Auxiliary brake |
engine exhaust brake |
|||
|
Eletric system |
24v |
|||
|
Upper-Body specification |
||||
|
Material of tank |
material : Q235，Thickness :3mm (side) 4mm(bottom) |
|||
|

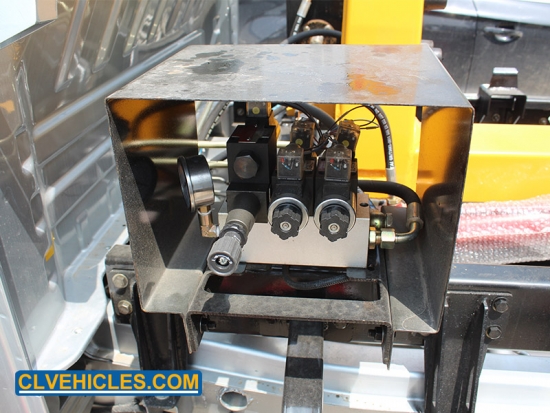

Operation control system |
Electrically hydraulic control |
|||
|
Container load time |
50-60s |
|||
|
Container unload time |
40-50s |
|||
|
Garbage unloading way |
Lifting and dump |
|||
|
Hydraulic system pressure |
20Mpa |
|||
|
Standard configuration |
Hook lift system , sub frame, lock cylinder, multiple valve, operating handle |
|||
Best choice for small community, park, factory. This hook lift/arm lift small garbage truck can be seem almost everywhere in city.
The hook arm garbage truck can pull the garbage and garbage can in the underground garbage bin together to the truck to carry away at the same time can dump.
The garbage truck is currently the world's most widely used way of garbage collection and transportation, can achieve a car more than one box, greatly reduce the cost of equipment and space.
The truck is widely used in urban streets and schools garbage treatment, can be equipped with a car with more than a bucket, each garbage point to place a number of garbage bucket.
The truck is widely used in urban streets and schools garbage treatment, can be equipped with a car with more than a bucket, each garbage point to place a number of garbage bucket.
Arm-roll garbage truck also named hook lift garbage truck , roll-lift garbage truck and detachable container garbage truck.
