LPG skid station it have 2 types : integrated type and split type for optional.
Brand:
heritagetrucksolution.COMModel No.:
CL2019LP10Minimum Order Quantity:
1 UnitPrice:
USD19680Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc10000L LPG Skid Station 10CBM LPG Skid Station 5Tons LPG Skid Filling Station

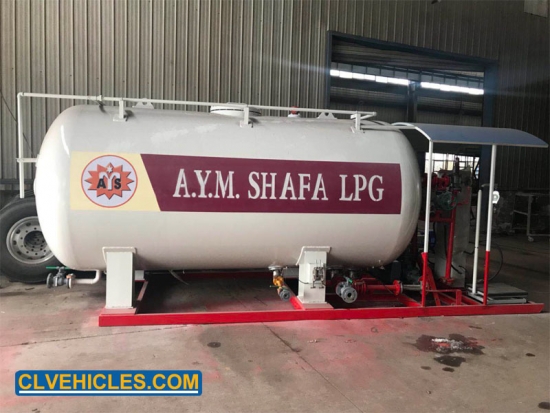

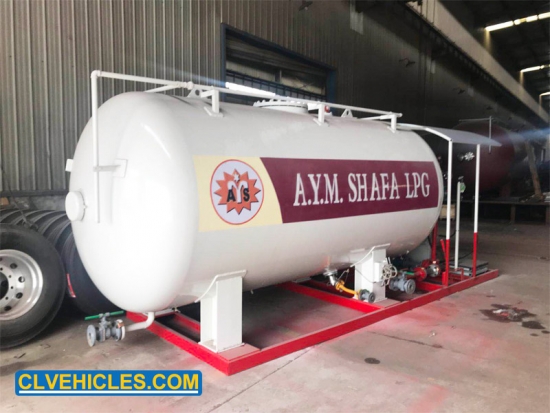

Skid- mounted station consists of a storage tank and two pumps, Pipe section : one pump forms unloading system, another forms filling system, these two systems under fault conditions can be used temporarily. The structure of Skid-mounted stations is divided into four parts, the tank, skid body, LPG dispenser, electronic control box.
Quick Details
| Material of tank | Carbon steel Q345R |
|
Propane tank capacity |
10000 liter |
|
Design temperature |
50℃ |
|
Design pressure |
1.77Mpa |
|
Leak test pressure |
1.77Mpa |
|
Hydraulic test pressure |
2.3Mpa |
Applications
LPG skid station equipped with two hydrocarbon pumps, one unloading pump, one twin screw pump, can be used interchangeably to meet the dump truck, car filling, cylinder filling, flip, sewage, emptying, emergency cut off , Level alarm, leak alarm and other functions.
|
|
|
|
Our LPG tanker trailer is made of Q345R steel which is specialized for pressure vessel 100% X-ray inspection |
Emergency shut off valve fore safety |
|
|
|
|
Double side for discharge and loading ,double tool box and valve box |
LPG dispenser optional with automatic fault detection and overload protection |
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
10M3 / 10CBM LPG TANK DIMENSIONS |
|||||
|
Volume of Tank |
10CBM |
||||
|
Filling Weight |
3990 kg |
||||
|
Tank Weight |
2950 kg |
||||
|
Thickness of Shell (mm) |
10mm |
||||
|
Thickness of Endplate (mm) |
10mm |
||||
|
Tank Diameter (mm) |
1600 mm |
||||
|
Tank Dimensions (mm) (length x width x height) |
5260 x1620 x 2210 mm |
||||
|
Material of Tank and Main Pressure Parts |
Carbon Steel Q345R |
||||
|
Filling Medium |
Liquefied Petroleum Gas ( Propane) |
||||
|
Design Pressure |
1.77 MPa |
||||
|
Corrosion Allowance |
1 mm |
||||
|
Medium Density |
500 kg/ M3 |
||||
|
Manufacturing Standard:Pressure vessels,Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. |
|||||
|
Main parts of LPG Tank |
|||||
|
Item |
Specification |
Quantity |
|||
|
Discharge Pipe |
DN80 |
1 |
|||
|
Inflow Pipe |
DN80 |
1 |
|||
|
Outlet |
DN50 |
1 |
|||
|
Gas phase balance pipes |
DN50 |
2 |
|||
|
Manhole |
DN450 |
1 |
|||
|
Drain Hole |
DN50 |
1 |
|||
|
Main accessories：Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below. |
|||||
|
LPG Skid Part list |
|||||
|
Item |
Model Number |
Quantity (PCS) |
|||
|
LPG Tanker |
40CBM |
1 |
|||
|
LPG Filling scale |
/ |
1 |
|||
|
Filling pump (Chinese Brand) |
/ |
1 |
|||
|
Motor (Chinese Brand) |
/ |
1 |
|||
|
Cut-off Valve |
J41N-40 DN50 |
25 |
|||
It can add Mass Flow Meter for measuring unloading data, LPG compressor for speeding up unloading, Sun Shield for protection and connect with our management system to monitor the live data of tank's stock, unloading quantity and sales quantity.

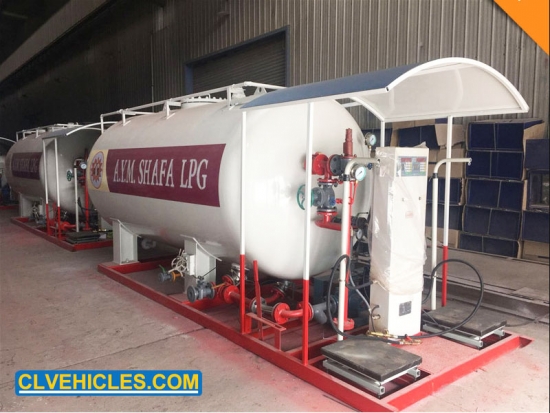

It contains LPG tank, LPG dispenser/ LPG filling scale, LPG pump, Control box, Leakage detection system, water cooling system, level meter and valves as complete set on the skid.
LPG skid storage tank is a series of products about pressure vessels manufactured by our company, the products strictly in accordance with standard to design, manufacture, inspect and accept.
Skid mounted station make the lpg storage tanks, pumps, valves, instruments, equipment, etc. assembled on the formation of the overall filling station. As long as the user leveling the floor, hoisting in place, the tank filling liquid, access to power, immediately will open to use.
LPG skid station consist of a 20CBM LPG tank, LPG pump&motor, LPG filling scales etc. Carbon steel material , with sunshade.

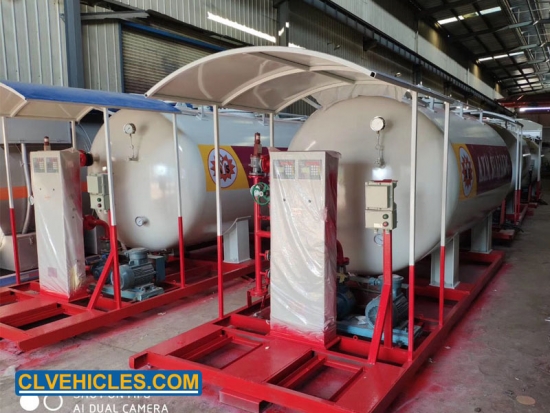

LPG skid station with LPG pump&motor, LPG filling scales and dispenser etc.
