LPG skid storage tank is a series of products about pressure vessels manufactured by our company, the products strictly in accordance with standard to design, manufacture, inspect and accept.
Brand:
heritagetrucksolution.COMModel No.:
20000 liter lpg tank gas stationMinimum Order Quantity:
1 UnitPrice:
USD22350Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc20000 liter cooking gas refill plant with dispenser and weight scale

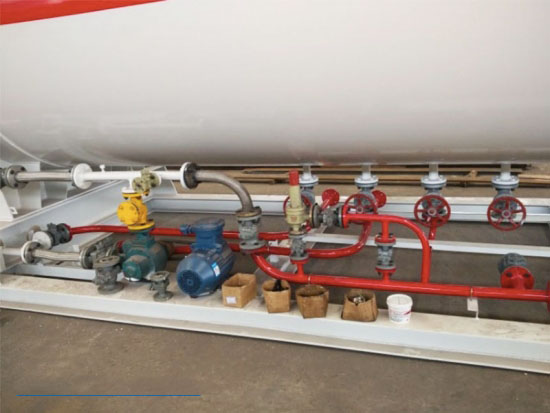

Skid- mounted station consists of a storage tank and two pumps, Pipe section : one pump forms unloading system, another forms filling system, these two systems under fault conditions can be used temporarily. The structure of Skid-mounted stations is divided into four parts, the tank, skid body, LPG dispenser, electronic control box.
Quick Details
| LPG tank size | 6154*2124*2714mm |
|
Propane tank capacity |
20000 liter |
|
Design temperature |
50℃ |
|
Design pressure |
1.77Mpa |
|
Leak test pressure |
1.77Mpa |
|
Hydraulic test pressure |
2.3Mpa |
Applications
LPG skid station equipped with two hydrocarbon pumps, one unloading pump, one twin screw pump, can be used interchangeably to meet the dump truck, car filling, cylinder filling, flip, sewage, emptying, emergency cut off , Level alarm, leak alarm and other functions.
|
|
|
|
Our LPG tanker trailer is made of Q345R steel which is specialized for pressure vessel 100% X-ray inspection |
Emergency shut off valve fore safety |
|
|
|
|
Double side for discharge and loading ,double tool box and valve box |
LPG dispenser optional with automatic fault detection and overload protection |
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
7.98T（20M3）LPG storage tank |
|||||||
|
Filling gas |
LPG (propane) |
||||||
|
Design Specific Gravity |
0.42 Kg/L |
||||||
|
capacity |
20M3 |
||||||
|
External Dimensions (length*width*height) |
6154*2124*2714mm |
||||||
|
Tank dimension (length*diameter) |
L6154*D2100mm |
||||||
|
tank weight (nominal) |
5050kg |
||||||
|
max payload weight |
7980kg |
||||||
|
tank material |
Q345R |
||||||
|
Tank body design thickness |
10.88mm |
||||||
|
End cover design thickness |
10.86mm |
||||||
|
design temperature |
500C |
||||||
|
working temperature |
-20~500C |
||||||
|
Corrosion allowance |
1.0 mm |
||||||
|
design pressure |
1.77 MPa |
||||||
|
Hydraulic test pressure |
2.22MPa |
||||||
|
leak test pressure |
1.77 MPa |
||||||
|
Heat treatment type |
Wholly get rid of tress |
||||||
|
Main partsspecification |
|||||||
|
Liquid level meter |
Type |
UZFAL-2.5FM |
|||||
|
Model |
Magnetic level gauge |
||||||
|
Nominal pressure |
PN2.5Mpa |
||||||
|
Surveying range |
50~2300mm |
||||||
|
Precision |
2.5Grade |
||||||
|
Safe valve |
Type |
A42F-2.5-80 |
|||||
|
Model |
Inner full lift |
||||||
|
Nominal pressure |
PN2.5 MPa |
||||||
|
Nominal diameter |
DN80mm |
||||||
|
Opening pressure |
1.68-1.76 MPa |
||||||
|
Closing pressure |
1.51~1.59MPa |
||||||
|
Complete opening pressure |
<2.12 MPa |
||||||
|
Loading and unloading device |
Model |
Quick tie-in |
|||||
|
Nominal Diameter |
Inlet Gas phase |
DN50mm |
|||||
|
Outlet gas phase |
DN50mm |
||||||
|
Drain outlet phase |
DN50mm |
||||||
|
Inlet Liquid phase |
DN50mm |
||||||
|
outlet Liquid phase |
DN50mm |
||||||
|
Pressure meter |
YN-100T |
||||||
|
Temperature gauge |
WTQ-280 |
||||||
|
Cut-off valve |
J41N-40 |
Normal pressure |
PN2.5 MPa |
||||
|
Normal diameter |
DN50MM |
||||||
|
DN32MM |
|||||||
|
DN25MM |
|||||||
|
DN20MM |
|||||||
|
Safety valve of pipe |
Type |
A21F-25 |
|||||
|
Normal pressure |
PN2.5 MPa |
||||||
|
Normal diameter |
DN15MM |
||||||
|
Security reflux valve |
Type |
AH42F-25 |
|||||
|
Normal pressure |
PN2.5 MPa |
||||||
|
Normal diameter |
DN25MM |
||||||
|
Back pressure valve |
Type |
H42N-40 |
|||||
|
Normal pressure |
PN4 MPa |
||||||
|
Normal diameter |
DN50MM |
||||||
|
Discharging pipe |
Length |
4M |
|||||
|
Normal diameter |
DN50/DN25MM |
||||||
|
Shock-absorbing pipe |
Length |
500MM |
|||||
|
Normal diameter |
DN50MM |
||||||
|
Flange |
Normal pressure |
PN2.5 MPa |
|||||
|
Normal diameter |
DN65MM |
||||||
|
DN50MM |
|||||||
|
DN32MM |
|||||||
|
DN25MM |
|||||||
|
DN15MM |
|||||||
|
Lpg gas pump（YQB15-5） |
Flow (m³/h) |
15.5 |
|||||
|
Inlet pressure (MPa) |
≤2.0 |
||||||
|
0.5 |
|||||||
|
Pump rotate speed (r/min) |
780 |
||||||
|
(KW) |
5.5 |
||||||
|
Inlet aperture (mm) |
50 |
||||||
|
Outlet aperture (mm) |
50 |
||||||
|
Temperature range℃ |
-40～40 |
||||||
|
Weight(kg) |
108 |
||||||
|
Explosive-proof motor |
7.5HP(5.5KW), Explosive Proof, |
||||||
|
Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable |
|||||||
|
LPG cylinder filling machine |
Model |
BSC-150 |
|||||
|
Electricity voltage V |
AC220 |
||||||
|
Power(w) |
40 |
||||||
|
Weighting scale |
Can fill 0.5kg to 150kg LPG cylinde |
||||||
|
Measurement Precision |
±0.5% |
||||||
|
Rated Working Pressure |
1.6Mpa |
||||||
|
Temperature range℃ |
-40～40 |
||||||
|
Anti-explosion Rate |
Exhibit II BT4 |
||||||
It can add Mass Flow Meter for measuring unloading data, LPG compressor for speeding up unloading, Sun Shield for protection and connect with our management system to monitor the live data of tank's stock, unloading quantity and sales quantity.
It contains LPG tank, LPG dispenser/ LPG filling scale, LPG pump, Control box, Leakage detection system, water cooling system, level meter and valves as complete set on the skid.
Skid mounted station make the lpg storage tanks, pumps, valves, instruments, equipment, etc. assembled on the formation of the overall filling station. As long as the user leveling the floor, hoisting in place, the tank filling liquid, access to power, immediately will open to use.
LPG skid station it have 2 types : integrated type and split type for optional.

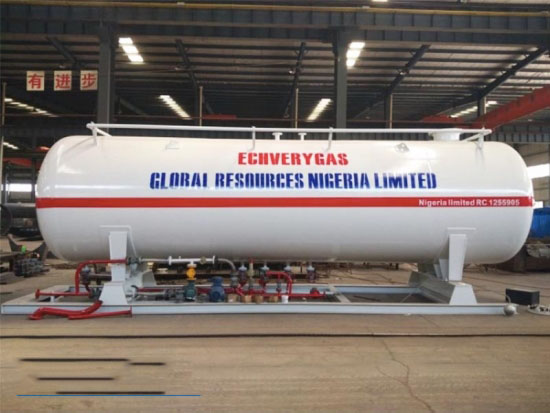

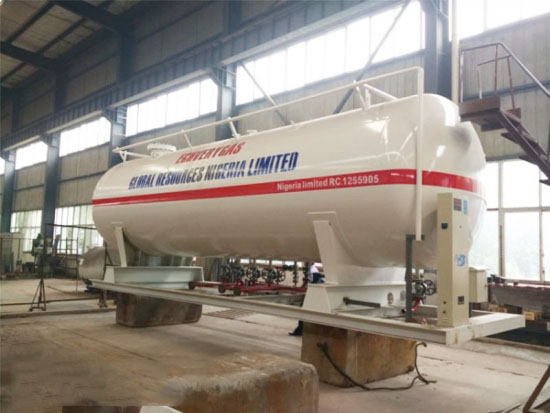

LPG skid station consist of a 20CBM LPG tank, LPG pump&motor, LPG filling scales etc. Carbon steel material , with sunshade.
LPG skid station with LPG pump&motor, LPG filling scales and dispenser etc.
