This fuel tanker semi trailer with 4 compartments can transport fuel, oil, diesel and other liquids. High quality steel makes trailer itself lighter but strong enough for heavy cargoes, so that transport company can load more tons.
Brand:
heritagetrucksolution.COMModel No.:
CL9409GYYMinimum Order Quantity:
1 UnitPrice:
USD 20400Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

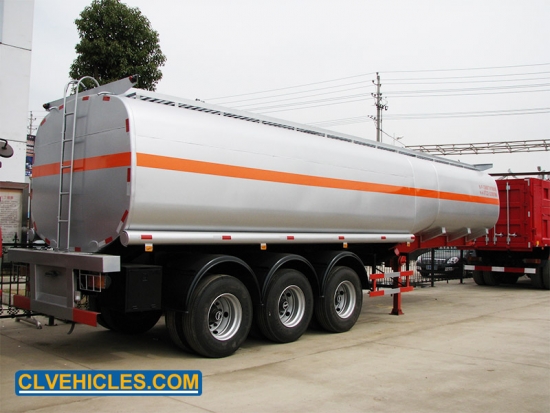

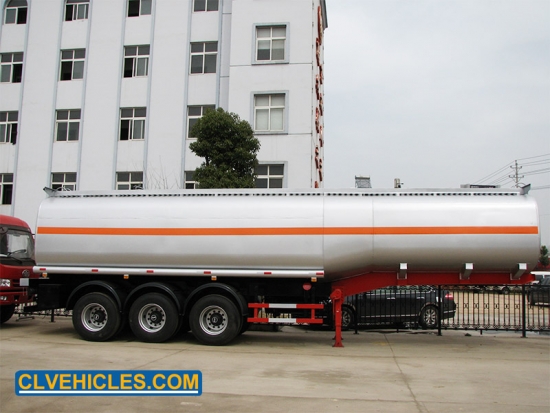

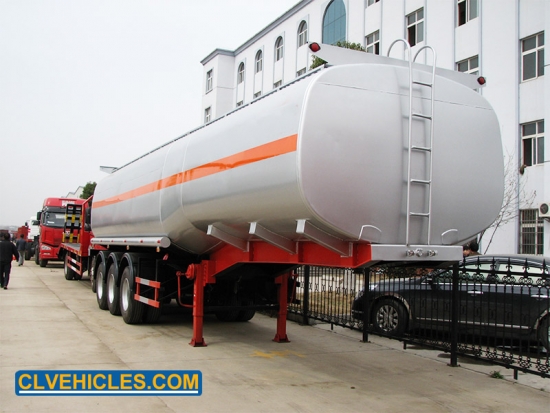

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc3 Axles 45000 Liters Diesel Kerosene Gasoline Aviation Fuel Tanker Semi Trailer
A tanker is a motor vehicle used to transport liquid and gas fuels on the road.
It is mainly used for the transportation and storage of petroleum derivatives such as gasoline, diesel oil, crude oil, lubricating oil and coal tar. Generally, the capacity is relatively large, and it is divided into thermal insulation or non-thermal insulation, pressure-resistant or non-pressure-resistant.
Such vehicles are generally more difficult to drive due to the effects of gravity.
According to the size of the model and capacity, tanker trucks can be divided into large, medium and small types. Larger vehicles typically carry 5,500 to 9,000 US gallons (21,000 to 34,000L). The general carriage is cylindrical or oblate.
Quick Details
| Semi-trailer type |
Fuel Tank Semi Trailer |
| Length | 13000mm |
| Loading capacity | 45000L |
|
Axle |
FUWA |
Applications
Oil tanker semi trailer is suitable for transporting liquid oil such as gasoline, kerosene, diesel oil, vegetable oil, edible oil, heavy oil, coal tar and non-petroleum products. The tank is equipped with multi-channel anti-wave bulkheads, which makes the tank body strong, stable and the vehicle carried safely and steadily.
World's famous axle brand!——BPW and FUWA.
Various modes of suspension for your choice!—— air suspension, mechanical suspension, single point suspension.
Various kinds of tank material for your choice!—— Q235/carbon steel/CS/stainless steel/SS304/aluminium alloy.
European standard device available!—— oil and gas recovery device, emergency shutoff valve, anti-overflow device, overflow alarm, loading and unloading in the bottom of the tank, exhaust pipe, anti-static zipper, API valve, flow meter.
Division compartments available!
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Tare Weight |
About6.9T |
||
|
Dimension |
Length:13000 mm(outside dimension) |
||
|
Width: 2500 mm(outside dimension) |
|||
|
Height: 3800mm(outside dimension） |
|||
|
Loading Capacity |
45,000L |
||
|
Tank Assembly |
Front/Rear end plate |
Material |
Carbon steel |
|
Thickness |
7mm |
||
|
Tank Body |
Material |
Carbon steel |
|
|
Thickness |
6mm |
||
|
Compartment |
Three compartment |
||
|
Thickness |
5mm |
||
|
Insulating layer |
Thickness |
50mm |
|
|
Material |
Polyurethane foam |
||
|
Outer layer |
Carbon Steel |
||
|
Thickness |
1.2mm |
||
|
Effect |
±5℃in 24 hours |
||
|
Discharging Valve |
Diameter |
3 inch |
|
|
Number |
3 PCS |
||
|
Discharging Pipe |
Diameter |
3 inch |
|
|
Type |
Rubber hose, 2pcs |
||
|
Cat Walk |
with, Standard type |
||
|
Running mechanism |
Main beam |
Material |
Q235 carbon steel |
|
Plate |
upper plate is 14mm, middle plate is 8mm, Down plate is16mm |
||
|
Height |
500mm |
||
|
Side beam |
Material |
Q235 carbon steel |
|
|
Thickness |
16mm or 18mm channelsteel |
||
|
Axle |
Brand |
FUWA |
|
|
Type |
13T |
||
|
Number |
3 PCS |
||
|
Rim |
Type |
9.0-22.5 |
|
|
Number |
13 PCS |
||
|
Tire |
Brand |
Triangle brand |
|
|
Type |
12.00R22.5 |
||
|
Number |
13 PCS |
||
|
Suspension |
Mechanical suspension for3 axle |
||
|
Spring leaf |
Leaf width |
90mm |
|
|
Leaf thickness |
13mm |
||
|
Layer/set |
10 Layer |
||
|
King pin |
Brand |
JOST brand |
|
|
Type |
Bolts type |
||
|
Diameter |
2.0 inch |
||
|
Brake system |
Air tank |
45L air tanks |
|
|
Brake chamber |
6 double Spring brake chamber |
||
|
ABS |
Without |
||
|
Landing gear |
Brand |
JOST brand |
|
|
Type |
JOST C200T |
||
|
Accessories |
Spare tire carrier |
1 SET |
|
|
Light |
LED light |
||
|
Voltage |
24V |
||
|
Receptacle |
7 ways (7 wire harness) and quick change type |
||
|
Tool box |
One piece, 1m×0.5m×0.5m (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
||
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
||
High quality carbon steel oil tank trailers made in China for export. With multiple baffle plates in the tank, the tank has the advantages of high intensity, stability, transporting safety etc.
According to users' needs, the tank can be designed as a single compartment or several compartments to contain different oils.
The tanker is made of 4mm or 6mm high-quality carbon steel produced by iron and steel companies according to national standards,and the shape is divided into oval or circular tank, which can hold 1-4 kinds of oil products. Can also produce heating and insulation series tank.
The fuel truck is a vehicle for transporting oil materials. The fuel truck is equipped with a tanker that can move with the truck and a vehicle that distributes fuel to oil-receiving equipment.
The tank is all made of aluminum steel, and the best hygienic level is achieved by automatic welding and surprise polishing. Polyurethane overall thermal insulation layer, ensure 24 hours is greater than or equal to 2 ℃ temperature rise.
Design multiple compartments or single compartment according to requirements. Reliable safe breathing valve prevents dust entering, reduces material loss and improves safety of the whole tank.
