This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
Brand:
heritagetrucksolution.COMModel No.:
CL2300Minimum Order Quantity:
1 UnitPrice:
USD 11290Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

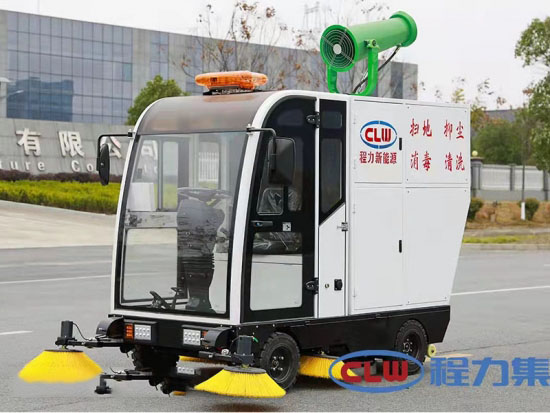

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcCL2300 FIVE Brushes Electric All Closed Cab Vacuum Floor Sweeper Street Cleaning Machine
The strong function mechamical arm front brush: front and back side Anticollision function patent; Lift at any height to sweep different stair floor; Shift left and right front brush, and adjust the width between left and right brush to sweep different floor; It can take back the brush immediately when going through the alley.
Quick Details
Product name |
Road sweeper truck |
Water Tank Capacity |
330L |
Garbage Tank Capacity |
240L |
Power |
48V |
AC drive motor power |
3000 W |
Battery Capacity |
48V150AH |
Cleaning Width |
2000mm |
Maximum Cleaning Capacity |
16000M2/h |
Working time |
3-6h |
Applications
Mechanical Road Sweeper is widely used in brushing ,suction and transportation of dusts ,muds ,soil ,sand , stone chips ,gravels and other small particles on the ground of city roads, park, street, residential quarts, warehouse, factory.
Competitive Advantages
→The fully enclosed cab is adopted to avoid the influence of bad conditions such as weather and noise on the cleaning work;
→Using 300h lithium battery, large capacity and long service life. No exhaust gas, no noise, low energy consumption;
→ Forward and backward cleaning operations are all one-key operations. Operators can start work after simple training;
→Humanized design concept provides users with a safe and comfortable operating environment;
Schematic Diagram
●Both the side brush and the main brush are equipped with automatic lifting devices; the height of the brush and the ground and the angle between the side brush and the ground can be adjusted automatically, the operation is simple and convenient, and it is suitable for different road conditions. The diameter of the main brush is increased to 800mm, which makes the use time Longer and better cleaning effect.
●Removable original imported drum filter, cooperate with electric dust vibrating device and vacuum cleaning system to clean more thoroughly.
●The walking motor is rear-mounted, and the rear axles with different speed ratios can be selected according to the user's requirements, so that the climbing ability and walking speed can be better.
●The whole vehicle adopts automobile painting process, which is sturdy and durable, with beautiful appearance and generous appearance; the front F green high-grade curved tempered windshield is fully enclosed structure, which makes the operator's field of vision wider; built-in shock-absorbing high-grade leather seats, high-power fans, etc. A series of humanized designs.
●Equipped with hand brake, disc brake and power-off protection functions, it ensures the safety of users while working efficiently.
●Fully automatic control of the whole vehicle, equipped with imported electronic control system, the system has functions such as overcurrent, under voltage protection, reverse half-speed and so on.
●Front lighting, convenient for night operation; rear warning light, water tank capacity 400L full atomization spray.
●According to the principle of ergonomics, the equipment console is designed at the bottom right of the seat, which makes the operation more comfortable and convenient.
●The doors on both sides of the cab and the panoramic automatic sunroof make the use more user-friendly.
●Equipped with a smart car charger.
●It is quick and convenient to replace the consumable parts without using any special tools.
Customer Services
Item |
Parameter |
|
Working Performance |
Rated crow |
1 people |
Overall size |
3000*2200*2100mm |
|
Source power |
48V |
|
AC drive motor power |
4000w |
|
Traveling speed |
0-12 km/h |
|
Minimum turning radius |
Around turn |
|
Maximum gradeability |
25° |
|
Curb weight |
1200kg |
|
Braking length |
≤4m |
|
Working time at full charge |
3-5h |
|
Sweeping area |
16000 m2/h (working at 8km/h) |
|
Sweeping width |
1900-2000mm |
|
No. of sweeping brushes |
1 main brush + 4 side brushes |
|
Main brush width |
800mm |
|
Working power |
800w (main brush) +4*80w (side brush) |
|
Discharge method |
Dumping |
|
Discharge height |
1m (from upper edge to ground) |
|
Draught fan power |
3000 w |
|
Dirt Hopper Capacity |
240 L |
|
Volume of water tank |
330 L |
|
Superstructure |
Seat |
Sponge + high rebound PU leather fabric |
Main parts |
Aluminum alloy (frame, beam, side guard plate) + steel frame + engineering plastic molding parts |
|
Door |
Equipped |
|
Instrument |
Combined instrument panel electric voltage display |
|
Working control mode |
Automatic control system, one button start |
|
Rearview mirror |
Equipped |
|
Lights and signals |
Combined headlight, combined rear taillight, engineering warning light, electric horn and reversing buzzer |
|
Electric control circuit |
Integrated waterproof wiring harness |
|
Steering wheel |
Car Steering Wheel |
|
Chassis |
Transmission system |
Stepless variable speed system full floating drive axle |
Steering system |
Gear type directional machine |
|
Braking system |
Hydraulic double disc brake |
|
Tire |
400-10 |
|
Battery system |
Battery type |
Maintenance-free Lead-acid storage battery |
Battery Capacity |
48V1500AH |
|
Motor |
AC brushless differential motor |
|
Battery Charger |
Portable intelligent charger waterproof type |
|
Electronic control |
Intelligent controller |
|
Charging time |
3 - 6h |
|
Battery life |
5 years |
|
Other Functions |
Both side brushes and main brushes are equipped with fully automatic lifting devices. |
|
The height of the brush and the ground and the angle between the side brush and the ground can be adjusted automatically. |
||
Detachable original imported drum filter, equipped with electric vibrating device and vacuum cleaning system |
||
Fully automatic operation of the whole truck, equipped with electronic control system with functions such as overcurrent, undervoltage protection, reverse half speed. |
