CL2400 4 Wheels Battery Driving Type Full Closed Cabin Road Floor Street Sweeper

Equipped with maintenance-free large capacity battery group and intelligent car charger. Brand controller, brushless motor and proprietary protection board ensure the stability and reliability of operation.
  • Brand:

    heritagetrucksolution.COM
  • Model No.:

    CL2400
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 15590
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

CL2400 Electric High Pressure Water Gun And Sprayer All In One Road Floor Sweeper

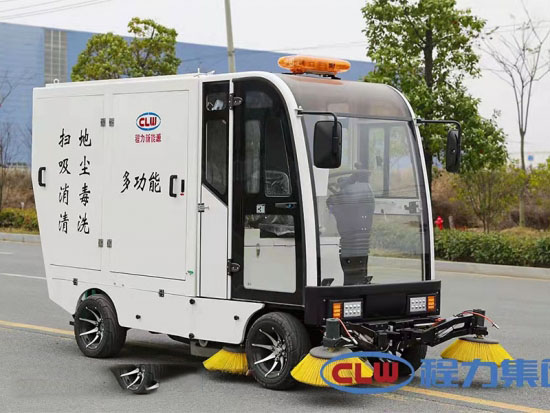

CL2400 4-wheel sweeper is featured with the enclosed cab. The machine design is beautiful and generous, suitable for cleaning parks, streets, stations, docks, municipal roads, property communities, warehouses, factories, workshops, schools, stadiums, large venues, airports ,hospital and other areas. The cleaning rate is higher than the industry standard, and the cleaning efficiency is 8-10 times of the traditional manual cleaning efficiency. A sweeper can replace 8-12 cleaning workers.


Quick Details


Product name

Road sweeper truck

Water Tank Capacity

2600L

Garbage Tank Capacity

240L

Power

48V

AC drive motor power

4000 W

Battery Capacity

48V250AH

Cleaning Width

2200mm

Maximum Cleaning Capacity

30000M2/h

Working time

4-6h


Applications


Mechanical Road Sweeper is widely used in brushing ,suction and transportation of dusts ,muds ,soil ,sand , stone chips ,gravels and other small particles on the ground of city roads, park, street, residential quarts, warehouse, factory.


Competitive Advantages



→The fully enclosed cab is adopted to avoid the influence of bad conditions such as weather and noise on the cleaning work;


→Using 300h lithium battery, large capacity and long service life. No exhaust gas, no noise, low energy consumption;


→ Forward and backward cleaning operations are all one-key operations. Operators can start work after simple training;


→Humanized design concept provides users with a safe and comfortable operating environment;


Schematic Diagram





Main Features

●Both the side brush and the main brush are equipped with automatic lifting devices; the height of the brush and the ground and the angle between the side brush and the ground can be adjusted automatically, the operation is simple and convenient, and it is suitable for different road conditions. The diameter of the main brush is increased to 800mm, which makes the use time Longer and better cleaning effect.


●Removable original imported drum filter, cooperate with electric dust vibrating device and vacuum cleaning system to clean more thoroughly.


●The walking motor is rear-mounted, and the rear axles with different speed ratios can be selected according to the user's requirements, so that the climbing ability and walking speed can be better.


●The whole vehicle adopts automobile painting process, which is sturdy and durable, with beautiful appearance and generous appearance; the front F green high-grade curved tempered windshield is fully enclosed structure, which makes the operator's field of vision wider; built-in shock-absorbing high-grade leather seats, high-power fans, etc. A series of humanized designs.


●Equipped with hand brake, disc brake and power-off protection functions, it ensures the safety of users while working efficiently.


●Fully automatic control of the whole vehicle, equipped with imported electronic control system, the system has functions such as overcurrent, under voltage protection, reverse half-speed and so on.


●Front lighting, convenient for night operation; rear warning light, water tank capacity 400L full atomization spray.


●According to the principle of ergonomics, the equipment console is designed at the bottom right of the seat, which makes the operation more comfortable and convenient.


●The doors on both sides of the cab and the panoramic automatic sunroof make the use more user-friendly.


●Equipped with a smart car charger.


●It is quick and convenient to replace the consumable parts without using any special tools.

Customer Services




Product Parameters


Item

Parameter

Working Performance

Rated crow

1 people

Overall size

3700*2200*2250mm

Source power

48V

AC drive motor power

4000w

Traveling speed

0-12 km/h

Minimum turning radius

Around turn

Maximum gradeability

25°

Curb weight

1350kg

Braking length

≤4m

Working time at full charge

4-6h

Sweeping area

16000 m2/h (working at 8km/h)

Sweeping width

2000-2200mm

No. of sweeping brushes

1 main brush + 4 side brushes

Main brush width

800mm

Working power

1200w (main brush) +4*100w (side brush)

Discharge method

Dumping

Discharge height

1m (from upper edge to ground)

Draught fan power

3000 w

Dirt Hopper Capacity

240 L

Volume of water tank

260 L

Superstructure

Seat

Sponge + high rebound PU leather fabric

Main parts

Aluminum alloy (frame, beam, side guard plate) + steel frame + engineering plastic molding parts

Door

Equipped

Instrument

Combined instrument panel electric voltage display

Working control mode

Automatic control system, one button start

Rearview mirror

Equipped

Lights and signals

Combined headlight, combined rear taillight, engineering warning light, electric horn and reversing buzzer

Electric control circuit

Integrated waterproof wiring harness

Steering wheel

Car Steering Wheel

Chassis

Transmission system

Stepless variable speed system full floating drive axle

Steering system

Gear type directional machine

Braking system

Hydraulic double disc brake

Tire

4215/40-12

Battery system

Battery type

Maintenance-free Lead-acid storage battery

Battery Capacity

48V250AH

Motor

AC brushless differential motor

Battery Charger

Portable intelligent charger waterproof type

Electronic control

Intelligent controller

Charging time

6 - 8h

Battery life

5 years

Other Functions

Both side brushes and main brushes are equipped with fully automatic lifting devices.

The height of the brush and the ground and the angle between the side brush and the ground can be adjusted automatically.

Detachable original imported drum filter, equipped with electric vibrating device and vacuum cleaning system

Fully automatic operation of the whole truck, equipped with electronic control system with functions such as overcurrent, undervoltage protection, reverse half speed.
