XCMG MQH37A 37Ton Side Lifters Self Loading Trailers
With strong power and rich attachments, skid steer loader can better adapt to the operations in narrow space and is an ideal tool for road construction, municipal maintenance.
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
Conform to the trend of mainstream appearance design, full of dynamic, strong and powerful, with a strong visual impact.
Brand:
heritagetrucksolution.COMModel No.:
CPCD30Minimum Order Quantity:
1 UnitPrice:
USD 10700Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc

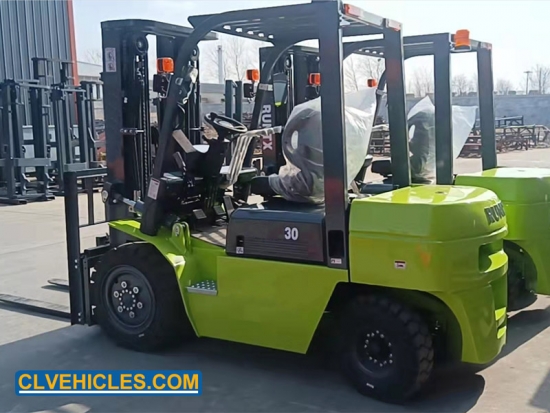

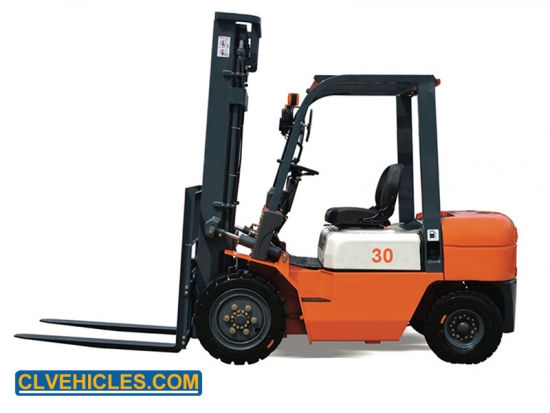

CLW C Series 3 tons Diesel Counterbalance Forklift
As lifting and transporting machineries, C Series 2-5T Diesel / Gasoline / LPG IC Counterbalanced Forklift Trucks are widely used for loading, unloading and transporting the packaged goods in factories, warehouses, stations, wharves, ports and so on. With other attachments of fork lift trucks., they can be used for the handling of the bulk goods and unpackaged goods.
Quick Details
| Rated lifting weight | 3000kg |
|
Load center distance |
500mm |
|
Engine |
C490BPG |
|
Length with fork |
3770mm |
|
Max. lifting height |
3000mm |
|
Engine power |
40kw |
1. Simple, flexible, light weight and small turning radius make the truck suitable use in extremely narrow aisle.
2. Strong structure and open layout make the maintenance easy.
3. Same hydraulic pump with the hand pallet, simple and reliable.
4. Integrated handle integrates key and meter make the operation easy and confortable.
5. Wide view mast, make a broader perspective.
6. Strong mast ensure safety and efficiency handling.
7. Suspension adjustable seat, make driver more comfortable, reduce fatigue during long operation.
8. Fuses, relays and other electric elements are integrated into a control box, which makes the maintenance and inspection work more convenient.
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Model |
CLCPCD30 |
|
Power |
Diesel |
|
Rated lifting weight (kg) |
3000 |
|
Load center distance (mm) |
500 |
|
Tire size (front) |
28x9-15-14PR |
|
Tire size (rear) |
6.50-10-10PR |
|
Length with fork (mm) |
3770 |
|
Length without fork (mm) |
2700 |
|
Width (mm) |
1220 |
|
Overhead guard height (mm) |
2122 |
|
Wheelbase (mm) |
1800 |
|
Front/rear of overhang (mm) |
485/515 |
|
Front/rear wheelbase (mm) |
1210/1240 |
|
Minimum ground clearance (mm) |
150 |
|
Standard lifting height without load (mm) |
3000 |
|
Adjustment range of fork (mm) |
1060/250 |
|
Minimum turning radius (outside) (mm) |
2470 |
|
Mast tilt (F/R) |
6°/12° |
|
Fork length (mm) |
1070 |
|
Maximum hoisting speed unload/full load (mm/s) |
500/450 |
|
Maximum operating speed unload/full load (Km/h) |
19.5/18 |
|
Grade ability (%) |
≤20 |
|
Maximum traction (full load/unload) (kN) |
20/16 |
|
Operating weight (kg) |
4250 |
|
Engine brand |
XINCHAI |
|
Engine model |
C490BPG |
|
Cylinder number |
4 |
|
Displacement (L) |
2.27 |
|
Rated power/speed (kw/rpm) |
40/2650 |
|
Rated torque/speed (Nm/rpm) |
156/1700-1900 |
|
Emission standard |
Euro II |
|
Gearbox gearshift number (F/R) |
1-1 power shift |
With strong power and rich attachments, skid steer loader can better adapt to the operations in narrow space and is an ideal tool for road construction, municipal maintenance.
Guide rail frame, attached wall and mainstream manufacturers in the industry can be interchangeable butt, universal.
New energy-saving hydraulic system, lower operation fuel consumption, better fretting property and more perfect control experience
The maximum lifting capacity is 8t, and the stacking capacity is 7 layers
The maximum lifting capacity is 45t, and the stacking capacity is 5 layers.
XCT16 has four 12-section cross-section of the new main boom, the main arm length of 32m, jib length of 8.15m.
