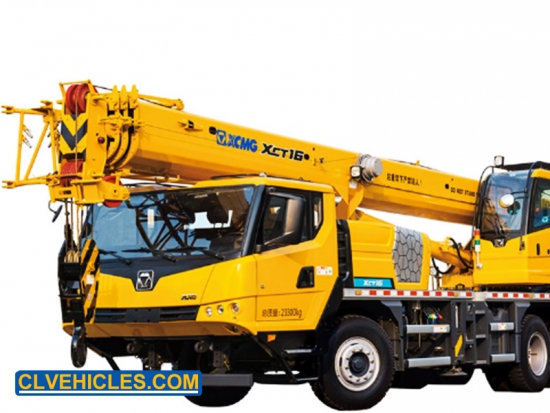

XCMG XCT16 16Ton Truck Crane

XCT16 has four 12-section cross-section of the new main boom, the main arm length of 32m, jib length of 8.15m.



  • Brand:

    heritagetrucksolution.COM
  • Model No.:

    XCT16
  • Minimum Order Quantity:

    1 Unit
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters


XCT16 New 40.6m Boom 16 ton Truck Crane

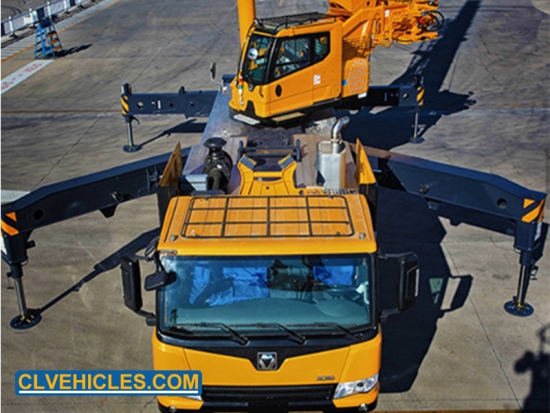

XCT16 has four 12-section cross-section of the new main boom, the main arm length of 32m, jib length of 8.15m, are leading the industry's highest level; lifting machine industry, the highest standard with the fifth leg, to achieve 360 ° operation.


Quick Details



Engine model Weichai

Rated power / speed

60kw /2300RPM

Max. rated total lifting capacity

16T

Basic boom

10.5m

Max. main boom

32.5m

Max.main boom+jib

40.6m


Applications

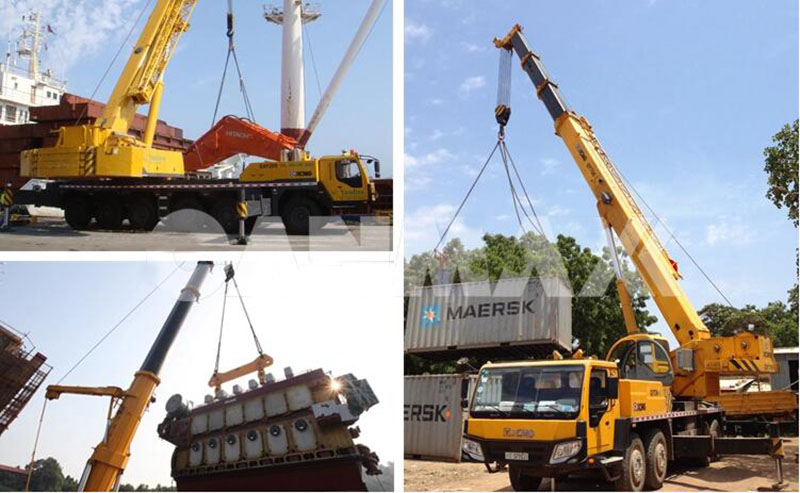

XCT16 Truck Crane is widely suitable for construction site, urban renewal, traffic transportation, port, bridge, oil field, mine field and other complex working environment.




Competitive Advantages

1. 3-axle self-made special chassis, 4-section dodecaphonic cross section of boom,built-in double independent winch and power system with low speed and large torque, this crane has industry-leading lifting height, lifting capacity and working efficiency


2. New energy-saving hydraulic system, mature engine system of Shanghai Diesel Engine and Weichai Engine, all covering walking surface and XC MG man-machine interactive system with the level of car provides more options for customers and bring more comfortable driving and operation experience


3. 360 ° operation



Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters


Dimension

Overall length

mm

11960

Overall width

mm

2500

Overall height

mm

3330

Weight

Total weight in travel

kg

23300

Engine

model


SC7H260Q4/SC7H245Q4/WP6.245.E40

rated power

kW/(r/min)

192/2300  180/2300 180/2300

 rated torque

N.m/(r/min)

1000/1200~1600 960/1200~1600 900/1100~1700

Travel

Max. travel speed

km/h

85

Min. turning diameter

m

20

Min. ground clearance

mm

261

Approach angle

°

12/19

Departure angle

°

14

Max. grade ability

%

48

Fuel consumption for 100km

L

28

Main performance

Max. rated total lifting capacity

t

16

Min. rated working radius

m

3

Turning radius at turntable tail

m

3.18

Max. lifting torque

kN.m

730

Base boom

m

10.5

Max.main boom

m

32.5

Max.main boom+jib

m

40.6

Working speed

Boom lifting time

s

35

Boom full extension time

s

50

Max. swing speed

r/min

3

Max. speed of aux. winch (single rope)

m/min

130



SEND A MESSAGE
heritagetrucksolution is one of the experienced truck manufacturer, export various special trucks, accept custom srevice, welcome to visit our factory and showroom to know more about us.
( This * is Required )
If you have questions or suggestions, please leave us a message,we will reply you as soon as we can!
Related Product
Side Lifters

XCMG MQH37A 37Ton Side Lifters Self Loading Trailers

With strong power and rich attachments, skid steer loader can better adapt to the operations in narrow space and is an ideal tool for road construction, municipal maintenance.

Building Hoist

XCMG SC200/200C Building Hoist

Guide rail frame, attached wall and mainstream manufacturers in the industry can be interchangeable butt, universal.

100ton crane truck

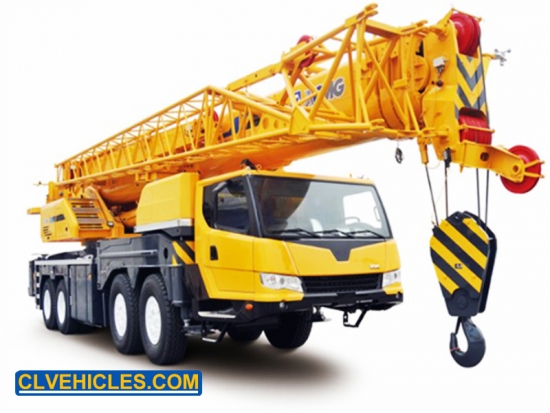

XCA100 100 Ton All Terrain Crane Truck

New energy-saving hydraulic system, lower operation fuel consumption, better fretting property and more perfect control experience

Empty Container Stacker

XCMG XCH80 8Ton Empty Container Stacker

The maximum lifting capacity is 8t, and the stacking capacity is 7 layers

Port Reach Stacker

XCMG XCS45 45Ton Port Reach Stacker

The maximum lifting capacity is 45t, and the stacking capacity is 5 layers.

Side Lifters

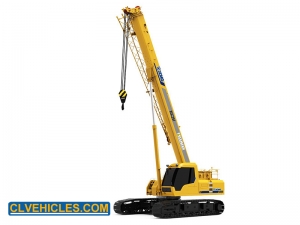

XCMG XGC25T 25Ton Telescopic Boom Crawler Crane
