XCMG MQH37A 37Ton Side Lifters Self Loading Trailers
With strong power and rich attachments, skid steer loader can better adapt to the operations in narrow space and is an ideal tool for road construction, municipal maintenance.
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
The max rated load of XGC25T telescopic crawler crane is 25t, 4-section telescopic boom, fully extended boom length is 33m (10.6~33m), jib length is 8.15m.
Brand:
heritagetrucksolution.COMModel No.:
XGC25TMinimum Order Quantity:
1 UnitPayment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc

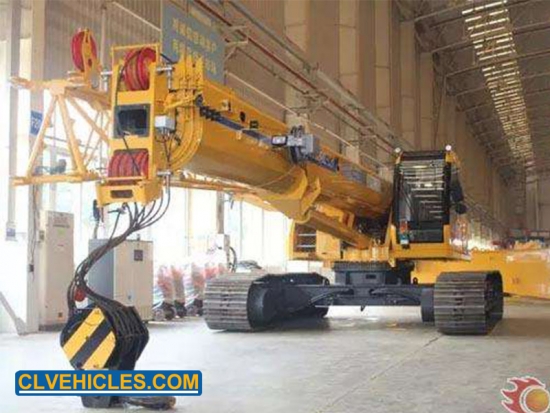

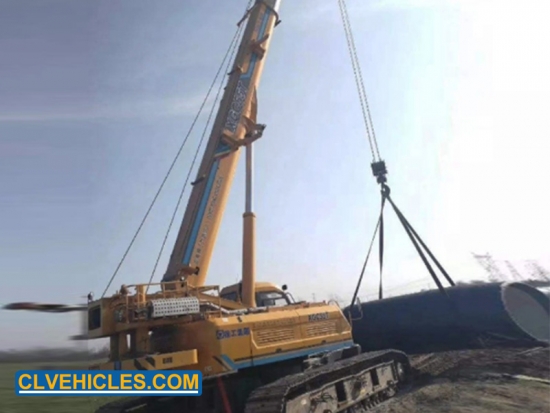

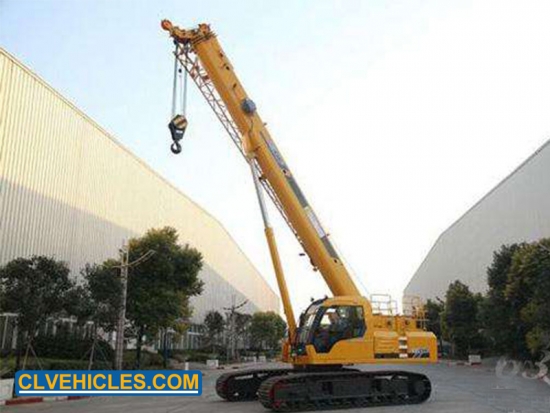

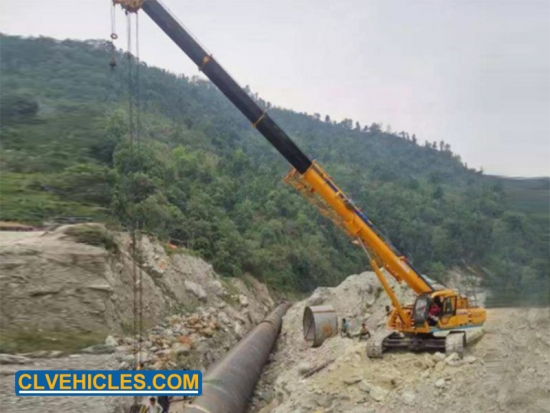

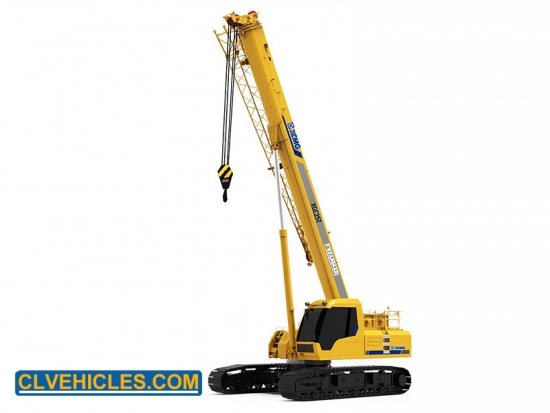

XCMG mini telescope boom crawler crane XGC25T 25ton price
The max rated load of XGC25T telescopic crawler crane is 25t, 4-section telescopic boom, fully extended boom length is 33m (10.6~33m), jib length is 8.15m,it meets all working radius in boom length range. Extendable crawler track meets the requirements of lifting work with high stability, also meets transport requirements for crane outline dimension.
Quick Details
| Crane full length | 12805MM |
|
Width of track shoe |
700MM |
|
Engine model |
QSB6.7 |
|
Rated power of engine |
142KW |
|
Max. lifting load moment --basic boom |
970KN.M |
|
Hoisting height --basic boom |
9.9M |

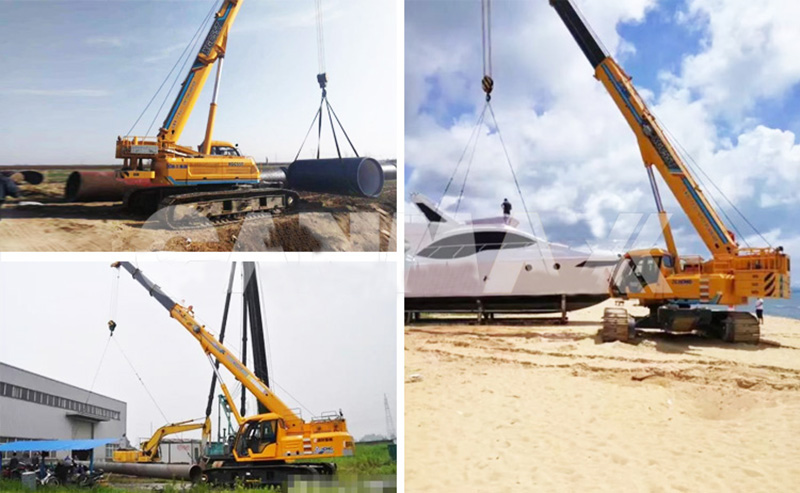

Applications
1.It has multiple functions such as dynamic tamping, piling, lifting and SDDC, which fully reflects the high cost performance of the product.No decoupling
2.ramming efficiency increased 200%.30m/min rammer lifting speed, leading the industry.
3.Large wheel pitch and large track gauge structure, with track gauge stretching function, good stability of the vehicle, the specific pressure is only 0.053mpa, suitable for pile machine and dynamic compaction soft ground;
4.The universal crawler of excavator is adopted to make the walking more stable, the ground adaptability stronger and the maintenance and replacement cost lower.
5.The assembly of the whole machine is efficient and fast, and the whole machine can be completed in 60min
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Items |
Unit |
Parameter value |
|
Parameters |
- |
XGC25T |
|
Size |
|
* |
|
Crane full length |
(mm) |
12805 |
|
Crane full width |
(mm) |
4200/2950 |
|
Crane full height |
(mm) |
3035 |
|
Central distance between active and passive roller |
(mm) |
4330 |
|
Width of track shoe |
(mm) |
700 |
|
Weight |
|
* |
|
Total mass in travel state |
(kg) |
34960 |
|
Travel |
|
* |
|
Travel speed with empty load |
(km/h) |
2.6 |
|
Travel speed with full load |
(km/h) |
1.5 |
|
Min. clearance from the ground |
(mm) |
357 |
|
Max. gradeability |
(%) |
45 |
|
Ground pressure |
(MPa) |
0.06 |
|
Power |
|
* |
|
Ear noise |
(A) |
80 |
|
Engine model |
- |
QSB6.7 |
|
Rated power of engine |
(kw) |
142 |
|
Rated revoution speed of engine |
(r/min) |
1800 |
|
Emission standard of engine |
- |
EU Stage IIIA |
|
Capacity |
|
* |
|
Hydraulic tank capacity |
(L) |
400 |
|
Fuel oil tank capacity |
(L) |
450 |
|
Main performance parameters |
|
* |
|
Max. rated total lifting weight |
(t) |
25 |
|
Min. rated radius |
(m) |
3 |
|
Max. lifting load moment --basic boom |
(kN·m) |
970 |
|
Max. lifting load moment --max. boom |
(kN·m) |
576 |
|
Hoisting height --basic boom |
(m) |
9.9 |
|
Hoisting height--max. main boom |
(m) |
32.3 |
|
hoisting height--max. main boom +jib |
(m) |
39.8 |
|
Lifting boom length--basic boom |
(m) |
10.6 |
|
Lifting boom length--max. main boom |
(m) |
33 |
|
Lifting boom length--max. main boom+jib |
(m) |
41.15 |
|
Jib installation angle |
(°) |
0,15,30 |
|
Working speed |
|
* |
|
Main boom hoisting time |
(s) |
48 |
|
Main boom fully extending time |
(s) |
56 |
|
Max. slewing speed |
(r/min) |
2.5 |
|
Hoisting speed (empty load, the 4th layer) main hoist system |
(m/min) |
140 |
|
Hoisting speed (empty load, the 4th layer) auxiliary hoist system |
(m/min) |
140 |
With strong power and rich attachments, skid steer loader can better adapt to the operations in narrow space and is an ideal tool for road construction, municipal maintenance.
Guide rail frame, attached wall and mainstream manufacturers in the industry can be interchangeable butt, universal.
New energy-saving hydraulic system, lower operation fuel consumption, better fretting property and more perfect control experience
The maximum lifting capacity is 8t, and the stacking capacity is 7 layers
The maximum lifting capacity is 45t, and the stacking capacity is 5 layers.
XCT16 has four 12-section cross-section of the new main boom, the main arm length of 32m, jib length of 8.15m.
