This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
The tank is made of stainless steel, with anti-corrosion effect, longer use. Adopting one-piece tank structure, the front is the fresh water tank, the back is the suction tank.
Brand:
heritagetrucksolution.COMModel No.:
CL5162XDT1Minimum Order Quantity:
1 UnitPrice:
USD 50000Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
DONGFENG 7000L 4x2 Industrial High Pressure Vacuum Tank Truck
Cleaning suction truck is heritagetrucksolution.COM according to market needs, research and development production of a high-pressure cleaning with suction truck, is a combination of high-pressure cleaning trucks and suction trucks multifunctionality in one of the new sanitation vehicles, high-pressure cleaning function and suction function can be used at the same time. The main function of cleaning and sewage suction truck is to be used for the dredging of the blocked sewer area which cannot be reached by the workers.
Quick Details
Tank Capacity |
7CBM |
Tank Material |
Carbon Steel |
Chassis brand |
DONGFENG LIUZHOU |
Horsepower of Engine |
245hp |
Vacuum Pump Brand |
Italy BP/ Weilong/ Domestic Pump |
Color |
As requirements |
Applications

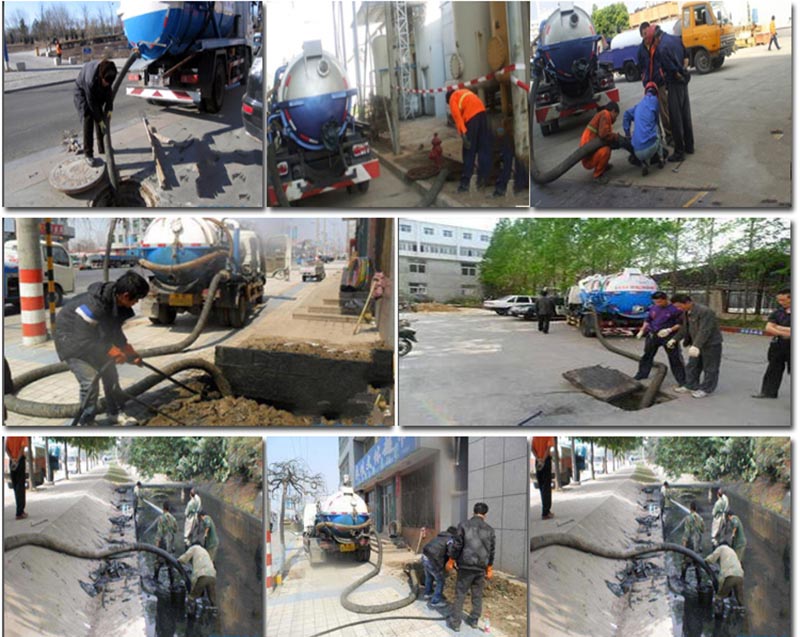

These powerful and efficient vacuum tank truck are designed to vacuum up and recover a wide range of different materials, from liquids, solids, thick sludge , all while leaving the surface below safe and clean.
Vacuum tanker is a tank truck that has a pump and a tank. The pump is designed to pneumatically suck liquids, sludges, slurries, or the like from a location (often underground) into the tank of the truck. The objective is to enable transport of the liquid material via road to another location. Vacuum trucks transport the collected material to a treatment or disposal site, for example a sewage treatment plant.
Competitive Advantages
1, The vacuum pump and hydraulic system are driven by the engine power through the power take-off(PTO).

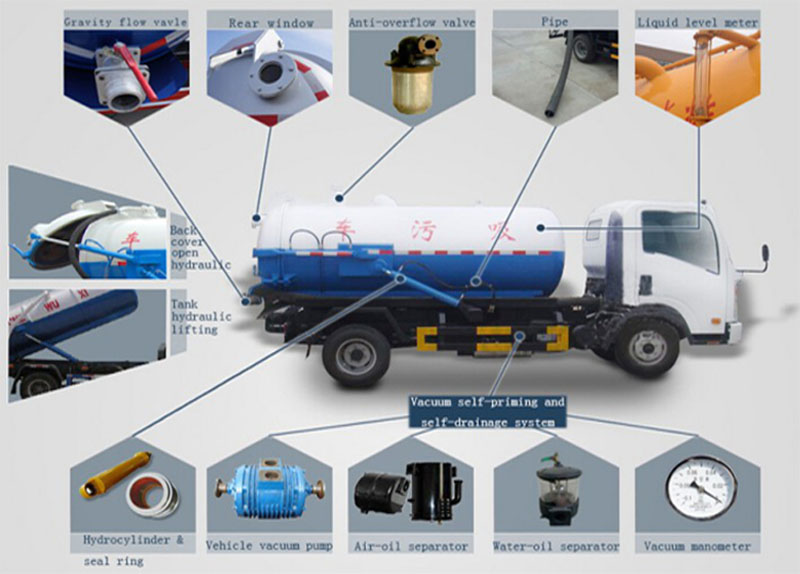

2, The suction truck is equipped with a level inspection window and a self-flowing port, a hand washing device, an anti-overflow valve, a suction pipe of 8 meters, a hydraulic opening of the rear door, and a SK-15 water circulation vacuum pump. The suction truck has a large suction stroke and suction. Besides, the tank has a lifting function.
3. The inside of the tank is made of epoxy resin with a thickness of 120 microns (three-pass process), which not only has anti-corrosion effect, but also has anti-seepage and plugging effects.
4, The outer part of the tank is sprayed with iron red alkyd antirust paint, which has good adhesion and strong anti-rust ability.
5, Italy or Spain vacuum pumps ,Stainless steel, Anti-rust coating inside tank if necessary.
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
Chassis Specification |
||
General |
Chassis Brand |
DONGFENG |
Overall dimension |
8000*2500*3050mm |
|
GVW |
16000kg |
|
Mass in working order |
8800kg |
|
Cab |
Cab Capacity |
2 persons allowed |
Air Conditioner |
Heating or cooling air conditioner |
|
Engine |
Fuel Type |
Diesel |
Engine Brand |
YC6J245-30 |
|
Power |
245HP |
|
Displacement |
5900ml |
|
Emission Standard |
Euro 3 |
|
Chassis |
Drive Type |
4*2 (right hand driving) |
Transmission |
Manual |
|
Wheelbase |
4500 mm |
|
Tire |
11R22.5(6+1) |
|
Max Speed |
95km/h |
|
Electric system |
24v |
|
Upper-Body Specification |
||
Upper body |
Body capacity |
7cbm |
Material |
Carbon Steel |
|
High Pressure Pump |
Italy Pump 16MPa China Pump 24Mpa |
|
Flow Speed |
120L/Min |
|
Hose |
High Pressure hose 60m |
|
Hose reel |
Auto |
|
Suction head |
6m |
|
Nozzles |
A cluster of nozzles included |
|
Standard accessories |
Warning lights,Music alarm,Basic tool kit |
|
Optional |
Back alarm and Camera can be equipped. |
