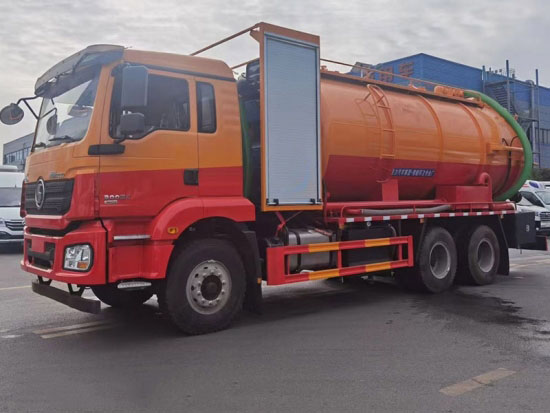

SHACMAN 18000L 10 wheeler Vacuum Sewage Suction Tank Truck
Vacuum suction sewage truck also named septic truck, Vacuum suction truck.Mainly used to suction, transport and discharge the sewage, dirty water, fecal within the sewer, rain water, inspection wells, septic tanks and various channels and excrement or petrochemical plant wastewater.The vacuum pump can self-priming, self-discharge.The sewage suction tank can be hydraulic self-dumping, the rear cover can be opened.Sewage suction truck is high vacuum suction well.
Quick Details
Tank Capacity |
18CBM |
Tank Material |
Carbon Steel |
Chassis brand |
SHACMAN |
Horsepower of Engine |
380hp |
Vacuum Pump Brand |
Italy BP/ Weilong/ Domestic Pump |
Color |
As requirements |
Applications
These powerful and efficient vacuum tank truck are designed to vacuum up and recover a wide range of different materials, from liquids, solids, thick sludge , all while leaving the surface below safe and clean.
Vacuum tanker is a tank truck that has a pump and a tank. The pump is designed to pneumatically suck liquids, sludges, slurries, or the like from a location (often underground) into the tank of the truck. The objective is to enable transport of the liquid material via road to another location. Vacuum trucks transport the collected material to a treatment or disposal site, for example a sewage treatment plant.
Competitive Advantages
1, The vacuum pump and hydraulic system are driven by the engine power through the power take-off(PTO).
2, The suction truck is equipped with a level inspection window and a self-flowing port, a hand washing device, an anti-overflow valve, a suction pipe of 8 meters, a hydraulic opening of the rear door, and a SK-15 water circulation vacuum pump. The suction truck has a large suction stroke and suction. Besides, the tank has a lifting function.
3. The inside of the tank is made of epoxy resin with a thickness of 120 microns (three-pass process), which not only has anti-corrosion effect, but also has anti-seepage and plugging effects.
4, The outer part of the tank is sprayed with iron red alkyd antirust paint, which has good adhesion and strong anti-rust ability.
5, Italy or Spain vacuum pumps ,Stainless steel, Anti-rust coating inside tank if necessary.
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
Chassis Specification |
||
General |
Chassis Brand |
SHACMAN |
Overall dimension |
9100*2500*3250mm |
|
GVW |
25000kg |
|
Mass in working order |
10900kg |
|
Cab |
Cab Capacity |
2 persons allowed |
Air Conditioner |
Heating or cooling air conditioner |
|
Engine |
Fuel Type |
Diesel |
Engine Brand |
WEICAHI | |
Power |
380HP |
|
Displacement |
9726ml |
|
Emission Standard |
Euro 3 |
|
Chassis |
Drive Type |
6*4 (left hand driving) |
Transmission |
Manual |
|
Wheelbase |
4565+1370mm |
|
Tire |
12R22.5(10+1) |
|
Max Speed |
90km/h |
|
Electric system |
24v |
|
Upper-Body Specification |
||
Upper body |
Body capacity |
18cbm |
Material |
Carbon Steel |
|
Suction Head Pipeline |
7m |
|
Vacuum Pump Brand |
Italy BP/Weilong/Domestic |
|
Vacuum Pump Advantage |
High efficient, Vacuum rate 93%, Quick suction and discharge, suction lift 6 m |
|
Hose |
Wire strengthened hose |
|
Standard accessories |
Inlet pipeline,Discharge nozzle,Cabin pneumatic control box,basic tool kit |
|
Optional |
Back alarm and Camera can be equipped. |
|
Standard carbon steel,stainless steel optional. |
||
Standard WEILONG vacuum pump,Italy vacuum pump. |
