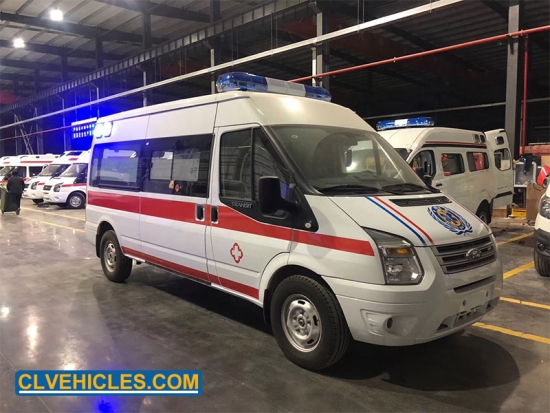

FORD Negative Pressure Isolation ICU Emergency Ambulance

FORD negative pressure ambulance is equipped negative pressure device can form negative pressure in the car to prevent from spreading in the car and provide medical care in the car.


  • Brand:

    heritagetrucksolution.COM
  • Model No.:

    CL5041XJHJ5
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 45,500 FOB Shanghai
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

FORD 2.2T diesel Negative Pressure ICU for COVID-19 patients transport ambulance car

Compared with the "soft" equipment such as masks and protective clothing, the negative pressure ambulance known as the "super large N95" is the first "hard" equipment to realize the supply guarantee. Novel corona virus pneumonia has been delivered to nearly 700 negative ambulances in Hubei province throughout the country, basically meeting the needs of new Hubei and Wuhan's new pneumonia cases.

Quick Details



Size of ambulance
5780×2000×2690
A/C
Include
Chassis brand
FORD
Horsepower
136hp(Euro 5)
Outside
Provide free logo design,both sides doors  pasted with cross mark
Oxygen supply system

One 10-liter oxygen cylinders

One directly connected oxygen cylinder with oxygen pressure reducing valve

Upholstery
ABS composite material, high-duty,anti-microbial
Negative pressure cabin Size
620x420x320mm
Medium efficiency filter Size
450x300x21mm
High efficiency filter Size
450x300x46mm

Applications


Ambulance equipped negative pressure system for the care and transportation of infectious patients,such as SARS, COVID-19.

Compared with ordinary ambulances, the biggest feature of negative pressure ambulances is that they are equipped with negative pressure equipment to achieve "negative pressure isolation" by making the air pressure in the vehicle lower than the external atmospheric pressure. At the same time, on the basis of ensuring the fresh air input, the air in the medical cabin is filtered and sterilized and then discharged out of the vehicle, so as to minimize the probability of cross infection between doctors and patients in the cabin. As the "weapon" of epidemic prevention and control, "standard configuration" of negative pressure ambulance is negative pressure system and negative pressure isolation cabin, which is also the necessary key equipment of negative pressure ambulance.

 Negative Pressure ICU for COVID-19 patients transport ambulance car


Negative pressure system


1. Through the negative pressure overhead air-conditioning independent air conditioner (independent of the cabin air conditioner), the air conditioner draws fresh air from the outside into cold air and enters the negative pressure medical cabin to ensure that the fresh and clean air enters the medical cabin.

2.Using the principle of fluid mechanics, a step pressure is generated from the side of the medical staff to the side of the patient, forming a uniform and continuous directional airflow, and finally sterilized and filtered out of the car, thereby maximizing the protection of the medical staff

3. In the negative pressure chamber, the principle of fluid mechanics is used to form a directional air flow from the clean area (medical staff area) to the source area (patient area), so that the dead angle and vortex of the air flow in the negative pressure chamber are minimized. The air pressure in the negative pressure compartment is -50Pa to -30Pa

4. The gas discharged from the directional flow in the negative pressure chamber should be discharged into the atmosphere after being sterilized by a high-efficiency filter, and must not be recycled into the negative pressure chamber. The filtration rate for aerosols with a particle size of 0.3 microns is greater than 99.95%.

5.The negative pressure system is equipped with an alarm device, which will generate an alarm when it is lower than the set negative pressure value;

6. Ozone generator is used in the negative pressure sterilization device to ensure the complete elimination of the bacteria in the medical cabin. It also has ozone concentration monitoring to prevent the ozone concentration from being too high and causing harm to the human body.

Negative pressure Ambulance


Competitive Advantage


1. The wide space of the medical emergency ambulance in the top of the center axis of the whole line, together with the humanized configuration such as the front and rear stereo air conditioning, creates a more comfortable driving experience for you


2.  2.2T large diesel exhaust, high speed for transportation


3. Engine use German Continental company newest technology


4. Gearbox use German GFT 6-speed, equipped with Multicone synchronizer,the noise is greatly reduced


5. Ambulance equip with negative pressure system to protect medical staff and warranty infection victim transport


6. Ambulance equipped with complete medical equipment with economic price


7. Chassis is American high quality brand FORD TRANSIT


Product Details


Negative Pressure Ambulance

Negative Pressure AmbulanceNegative Pressure Ambulance

Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



Chassis Specification

Truck model

CLW5041XJHJ5

Cab

FORD V348 CABIN

Driving Type

4*2 Left hand driving

Max Speed (km/h)

140

Overall dimension(mm)

5780×2000×2690

Ambulance Van dimension (mm)

3100×1700×1850

GVW(kg)

3700

Mass in working order(kg)

2690

Wheelbase(mm)

3750

Approach/Departure Angel

22/25

Tire

215/75R16LT

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

6-Speed gear box

Suspension

Front

Front Mcpherson independent suspension

Rear

Rear Hotchkiss suspension leaf spring

Engine

Model

DURATORQ4D225H

Fuel Type

Diesel

Type

2.2T In-line four cylinder supercharged cold cylinder direct injection

Exhaust(ml)

2198

Max output power/ rotating speed(hp/rpm)

136/3750

Max Torque/rotating speed(nm/rpm)

350/2100

Braking system

Service Brake

Air brake and dish brake

Park Brake

Spring energy

Eletric system

24v

Upper-Body specification

basic configuration

Medical warehouse air conditioning and heating

Circuits and medical appliances

Alarm and warning system

Long Row Standard Police Lights Or Various popular special-shaped police lights

100 watt siren and handheld control

Power supply system

Original vehicle power supply system

External power supply system

AC circuit protection system

Available for usb / 12v / 220v uninterruptible power supply

1000w Sine wave inverter system

control system

Micro-circuit centralized control system

Cockpit emergency start system

Integrated switch control

 LCD display equipment

Oxygen supply system

two 10-liter oxygen cylinders, special shock-absorbing clamps

2 sets oxygen pressure reducing valves,

humidification bottles

hidden oxygen pipes, international oxygen ports

Ventilation system

Two-way ventilation fan

Disinfection system

Mosaic UV anti-virus lamp

Light system

Medical special led light

 Rear spotlight

Car left and right side lights

Intercom system

Front and rear window intercom, one-way control

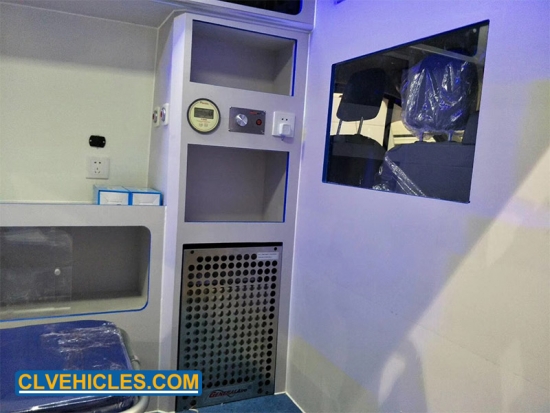

Medical warehouse interior

The interior adopts abs conforming material or overall mold forming process. The surface is smooth, antibacterial, high hardness, and the floor is easy to clean.

partition wall,

push-pull observation window on the partition wall,

pill cabinet behind the partition wall,

fixed oxygen cylinder beside the pill cabinet,

long seat belt and seat belt pre-buried,

Seat system

3 seat long soft seat on the right

Folding reverse independent seat with three-point safety belt

First aid

Automatic loading stretcher,

sliding infusion stand with 2 sets of infusion bottle hooks,

fire extinguisher

Exterior

Black solar film on the left side of the medical warehouse, semi-transparent frosted film on the right and rear sides, cross signs on the left and right doors

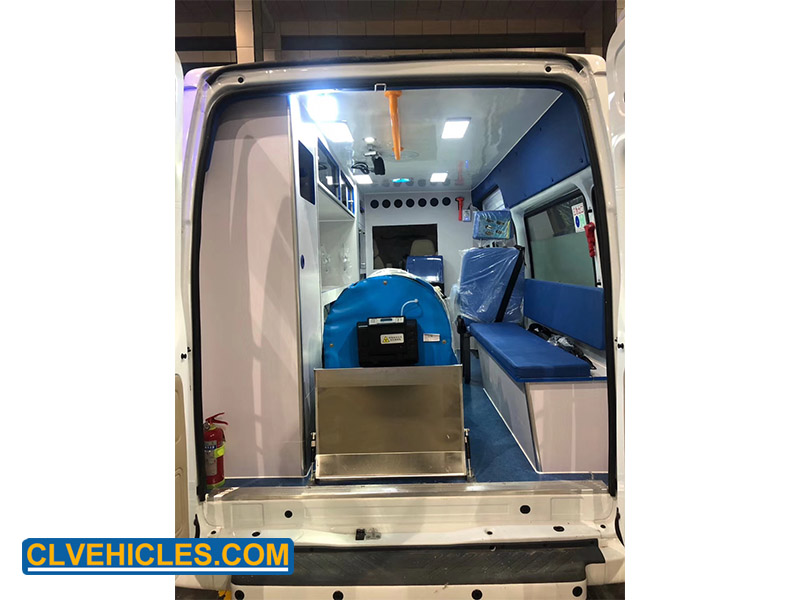

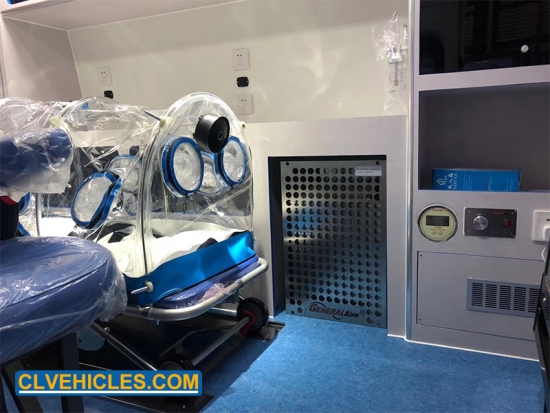

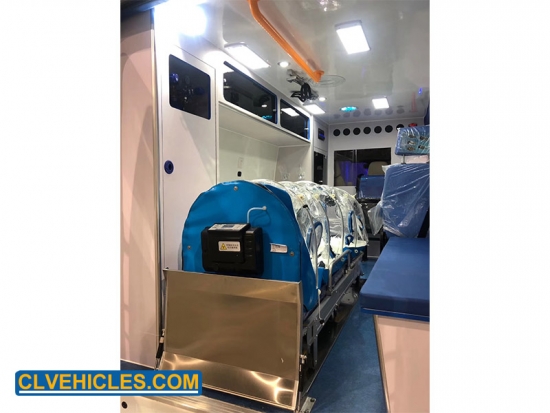

Negative pressure isolation room

Size

1900x680x500mm

Useful

infectious victim isolation and transport

Material

Durable and

Endurance

8h when full electric

Noisy

≤56dB(A)

Ventilation volume

≥75L/min

Other:equip the alarm system when pressure not enough and low power supply





Negative pressure system

Negative pressure cabin Size

620x420x320mm

Medium efficiency filter Size

450x300x21mm

Highefficiency filter Size

450x300x46mm

Working Voltage

DC12V

Working Current

≤20A

Air exhaust rate

≥800m3/h

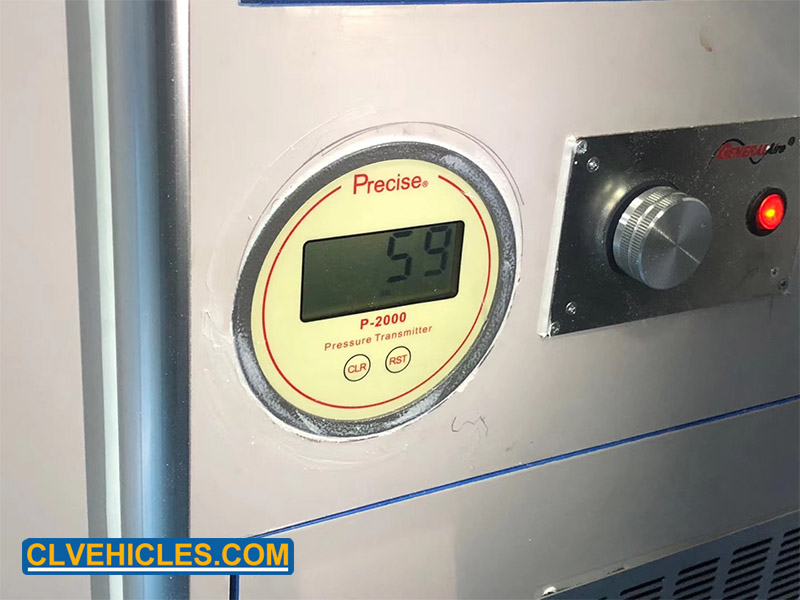

Negative pressure

20-30Pa

Negative pressure Accuracy

1.0Pa

Air circulation ratio

800m3/Cabin volume

Efficient filter

99.99%
