FOTON 4X2 G9 Mobile Patient Rescue Guardianship Ambulance

FOTON G9 ambulance has good driving quality and plenty of power. The space designed reasonable fully equipped with medical equipment.


  • Brand:

    heritagetrucksolution.COM
  • Model No.:

    CL5030XJHB6
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 25,100 FOB Shanghai
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

FOTON G9 ward-type 2.4T petrol ambulance car

FOTON G9 ward-type ambulance is overall van structure, is divided into two separate parts by partition wall, cockpit, and medical tank. The upper part of the partition is equipped with a visual observation window, and the front and rear cabins are equipped with an intercom system. The spacious space of medical tank not only guarantees the patient's safety and comfort, but also gives consideration to the convenience of operation of medical personnel.

Quick Details



Size of ambulance
5380×1920×2480
A/C
Include
Chassis brand
FOTON
Horsepower
136hp(Euro 5)
Outside
Provide free logo design,both sides doors  pasted with cross mark
Oxygen supply system

One 10-liter oxygen cylinders

One directly connected oxygen cylinder with oxygen pressure reducing valve

First aid
Automatic loading stretcher, sliding infusion stand with 2 sets of infusion bottle hooks, fire extinguisher

Applications


Ambulance designed and equipped for the treatment, monitoring and transportation of critically ill patients. Ambulance equipped with first aid resuscitation equipment and essential medicines that can rescue critically ill or injured persons on site or during transportation.

Transfer type: transporter ambulance is the most common ambulance that can be used to transport patients with relatively stable condition to hospital. Only some simple medical treatments such as infusion, oxygen inhalation, hemostasis, bandaging and so on are allowed in transit.

Guardianship type: guardianship ambulance refers to the possession of first aid recovery equipment and necessary drugs, capable of rescuing critically ill and injured people at the scene or in transit.

Ambulance


Competitive Advantage



1. The wide space of the medical emergency ambulance in the top of the center axis of the whole line, together with the humanized configuration such as the front and rear stereo air conditioning, creates a more comfortable driving experience for you


2. 2.4T large petrol exhaust, high speed for transportation


3. Transmission use lightweight cast aluminum shell, reduce the weight of the gearbox, reduce fuel consumption


4. Install satellite positioning and vehicle video surveillance to fully meet the requirements of the new first aid regulations


5. Ambulance equipped with complete medical equipment with economic price

Product Details






Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters


Chassis Specification

Truck model

CLH5030XJHB6

Cab

FOTON G9 CABIN

Driving Type

4*2 Left hand driving

Max Speed (km/h)

145

Overall dimension(mm)

5380×1920×2480

Ambulance Van dimension (mm)

3200×1700×1650

GVW(kg)

3400

Mass in working order(kg)

2160

Wheelbase(mm)

3110

Approach/Departure Angel

16/17

Tire

195R15C

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

5-Speed gear box

Suspension

Front

Front independent suspension

Rear

Rear suspension leaf spring

Engine

Model

4G69S4M(Euro 5)

Fuel Type

Diesel

Type

2.4T In-line four cylinder supercharged cold cylinder direct injection

Exhaust(ml)

2378

Max output power/ rotating speed(hp/rpm)

136/5250

Max Torque/rotating speed(nm/rpm)

200/2500-3500

Braking system

Service Brake

Air brake and dish brake

Park Brake

Spring energy

Electric system

24v

Upper-Body Specification

Basic configuration

Medical warehouse air conditioning and heating

Circuits and medical appliances

Alarm and warning system

Long Row Standard Police Lights Or Various popular special-shaped police lights

100 watt siren and handheld control

Power supply system

Original vehicle power supply system

External power supply system

AC circuit protection system

Available for usb / 12v / 220v uninterruptible power supply

1000w Sine wave inverter system

control system

Micro-circuit centralized control system

Cockpit emergency start system

Integrated switch control

 LCD display equipment

Oxygen supply system

two 10-liter oxygen cylinders, special shock-absorbing clamps

oxygen pressure reducing valves,

humidification bottles

hidden oxygen pipes, international oxygen ports

Ventilation system

Two-way ventilation fan

Disinfection system

Mosaic UV anti-virus lamp

Light system

Medical special led light

 Rear spotlight

Car left and right side lights

Intercom system

Front and rear window intercom, one-way control

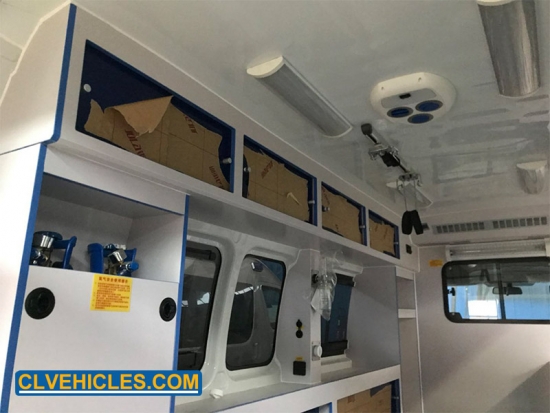

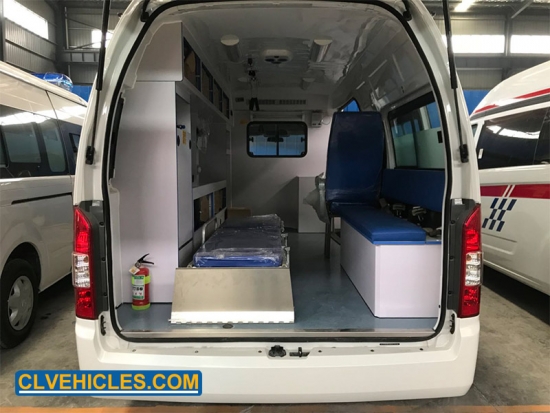

Medical warehouse interior

The interior adopts abs conforming material or overall mold forming process. The surface is smooth, antibacterial, high hardness, and the floor is easy to clean.

partition wall,

push-pull observation window on the partition wall,

pill cabinet behind the partition wall,

fixed oxygen cylinder beside the pill cabinet,

long seat belt and seat belt pre-buried,

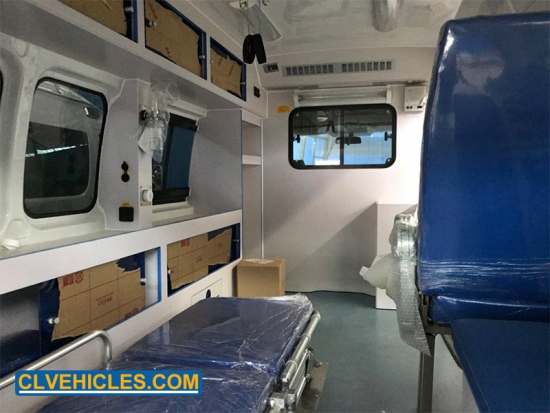

Seat system

3 seat long soft seat on the right

Folding reverse independent seat with three-point safety belt

First aid

Automatic loading stretcher,

sliding infusion stand with 2 sets of infusion bottle hooks,

fire extinguisher

Exterior

Black solar film on the left side of the medical warehouse, semi-transparent frosted film on the right and rear sides, cross signs on the left and right doors
