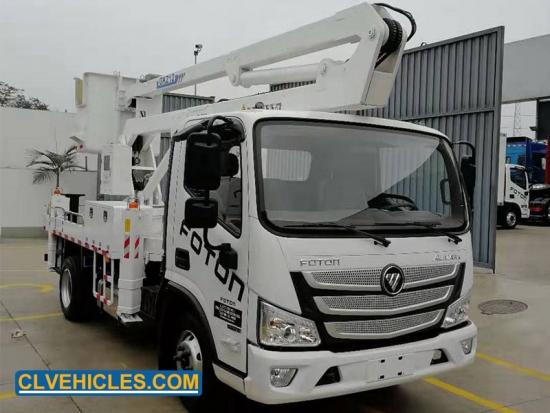

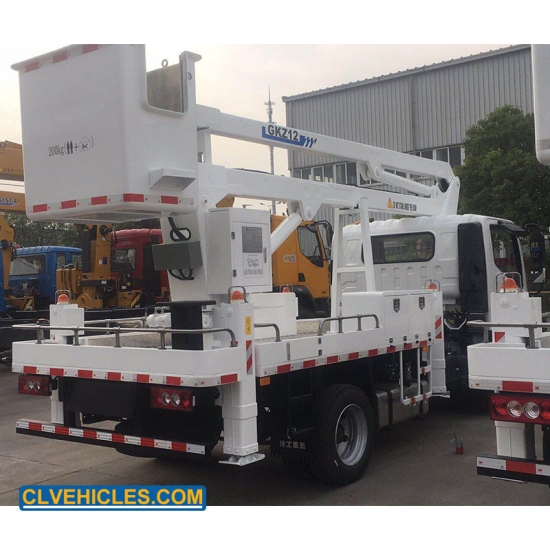

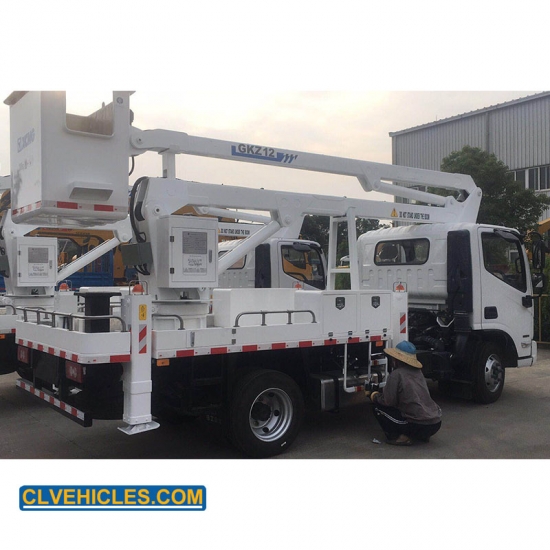

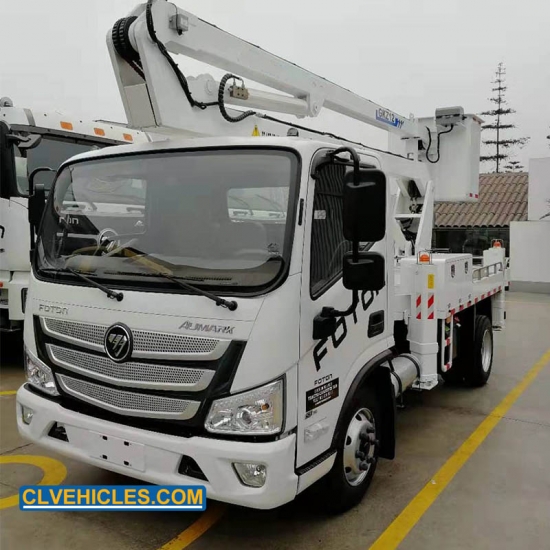

FOTON 6 Wheels 12m Bucket Aerial Work High-altitude Operation Truck
Aerial platform truck superstructure.The rotation system will allow continuous 360-degree rotation, with a safety system to prevent sudden drops in case of failure.Aerial basket is moving system with dual action commands, one at ground level and the other at the level of the basket.Truck equipped with two rotating amber lights. Aerial platform working truck equipped with balance valve ,emergency valve to keep safety when people overhead working.
Quick Details
|
Chassis Brand |
FOTON |
|
Horsepower |
141hp |
|
LHD/RHD |
LHD |
|
Type |
Folding Type |
|
Working Height |
12 meters |
| Color |
As requirements |
Applications
Bucket Truck is mainly used for municipal engineering,municipal works, streetlight repair and maintenance, garden works, hotel decoration, building engineering work, electric power works, factory, large exhibition hall etc. And it is high efficiency and great performance with good safety.
Competitive Advantages
1.It uses SINOTRUK chassis, which has choices for both LHD and RHD. And the cab has advanced design with fully automatic welding manipulator ABB.
2.It is folding type, which has price advantage compared with telescopic type Bucket Truck. The working altitude can reach to 14 meters . And the bucket loading capacity is about 200KG with non-slip body.
3.Front H and rear H legs, good stability, which can be operated at the same time or independently, and adapt to a variety of working conditions.
4.Computer controlled, automatic limit, alarming when in dangerous work, excellent safety performance.
5.Slewing mechanism adopts adjustable type, which is easy to adjust.
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Chassis Specification |
||||
|
Truck model |
CLW5048JGKIS12 |
|||
|
Cab |
Standard cab, with air-conditional and USB connector radio. |
|||
|
Driving Type |
4*2 Left hand driving |
|||
|
Max Speed (km/h) |
95 |
|||
|
Overall dimension (mm) |
Appro. 6400*1980*3100 |
|||
|
GVW (kg) |
Appro. 5800 |
|||
|
Mass in working order( kg) |
Appro. 5485 |
|||
|
Wheelbase (mm) |
3360 |
|||
|
Tire |
8.25R16 |
|||
|
Clutch |
Single-plate dry diaphragm spring clutch |
|||
|
Steering |
Hydraulic steering with power assistance |
|||
|
Gear box |
6-speed |
|||
|
Bridge |
Front axle |
3.6T |
||
|
Rear axle |
6T |
|||
|
Engine |
Model |
F3.8S3141 |
||
|
Fuel Type |
Diesel fuel |
|||
|
Emission Standard |
Europe 3 |
|||
|
Type |
Water-cooled four-stroke, supercharged inter-cooling |
|||
|
Exhaust (ml) |
3800 |
|||
|
Max output power/rotate speed (hp /rpm ) |
141/3400 |
|||
|
Max torque/rotate speed (N.m/rpm) |
220/1700 |
|||
|
BrakingSystem |
Service Brake |
Air brake |
||
|
Park Brake |
Spring energy |
|||
|
Electric system |
24v |
|||
|
Special Function |
||||
|
Working height (m) |
12 |
|||
|
Max working radius (m) |
6 |
|||
|
Boom type |
Two sections folding working boom |
|||
|
Rated loading in the bucket(kg) |
200 |
|||
|
Bucket size (mm) |
1300*1000*1000 |
|||
|
Rotating speed (r/min) |
0-2 |
|||
|
Rotationangle |
360° |
|||
|
Supporting leg |
four sets hydraulic legs |
|||
|
Span of supporting legs |
Horizontal |
3500mm |
||
|
longitudinal |
4000mm |
|||
|
Boomcontrol mode |
1.Bucket control 2.Manual operation |
|||
|
Supporting legs |
Four hydraulic supporting legs with manual operation |
|||
Widely used in municipal, electric power, street lamp, advertising, communication, photography, landscape, shipbuilding, transportation, wharf, airport port, emergency rescue, large industrial and mining enterprises and other industries of the installation and maintenance and climbing operations.
