ISUZU 100P N-series 12 Meters Aerial Work Platform Truck

The front V and rear H-shaped outriggers have good stability and are equipped with a "soft leg" protection function, which can be operated simultaneously or individually to adapt to various working conditions.




  • Brand:

    heritagetrucksolution.COM
  • Model No.:

    CL5040JGKIS12
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 29100
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

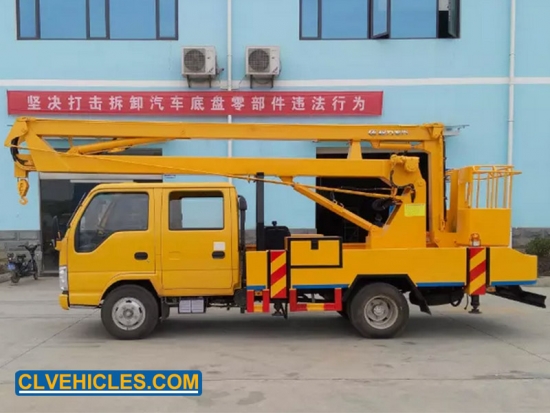

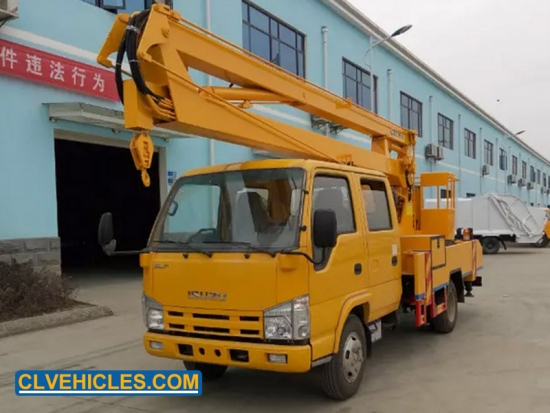

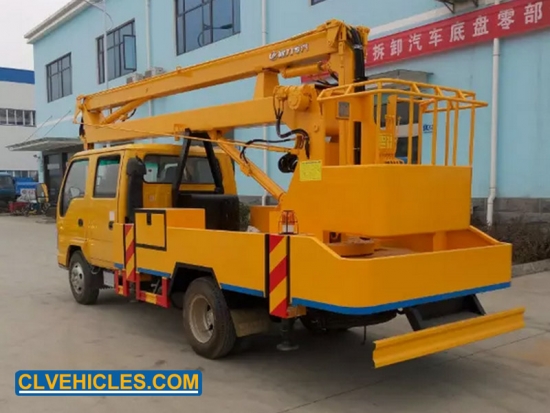

ISUZU 6 Wheels 100P 12 Meters Aerial Work Platform Truck

ISUZU 12 Meters Aerial Work Platform Truck is a folding type Aerial Platform Truck. It has three folding arms and provides temporary access for people or equipment to inaccessible areas of 12 meters height. The steel structure of the whole vehicle is made of high-strength materials, with light weight, high strength, high toughness and high reliability


Quick Details



Chassis Brand

ISUZU

Horsepower

98hp

LHD/RHD

LHD

Type

Folding Type

Working Height

12 meters

Color

As requirements


Applications


Bucket Truck is mainly used for municipal engineering,municipal works, streetlight repair and maintenance, garden works, hotel decoration, building engineering work, electric power works, factory, large exhibition hall etc. And it is high efficiency and great performance with good safety.




Competitive Advantages


1.It uses SINOTRUK chassis, which has choices for both LHD and RHD. And the cab has advanced design with fully automatic welding manipulator ABB.


2.It is folding type, which has price advantage compared with telescopic type Bucket Truck. The working altitude can reach to 14 meters . And the bucket loading capacity is about 200KG with non-slip body.


3.Front H and rear H legs, good stability, which can be operated at the same time or independently, and adapt to a variety of working conditions.


4.Computer controlled, automatic limit, alarming when in dangerous work, excellent safety performance.


5.Slewing mechanism adopts adjustable type, which is easy to adjust.



Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



Chassis Specification

Truck model

CLW5048JGKIS12

Cab

ISUZU100Pdouble rows of seats cab, with air-conditional andUSB connector radio.

Driving Type

4*2 Left hand driving

Max Speed (km/h)

95

Overall dimension (mm)

Appro. 6400*1980*3100

GVW (kg)

Appro. 5800

Mass in working order( kg)

Appro. 5485

Wheelbase (mm)

3360

Tire

700-15

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

MSB 5-speed

Bridge

Front axle

2.5T

Rear axle

4.8T

Engine

Model

4JB1CN

Fuel Type

Diesel fuel

Emission Standard

Europe IV

Type

Water-cooled four-stroke, supercharged inter-cooling

Exhaust (ml)

2771

Max output power/rotate speed (hp /rpm )

98/3400

Max torque/rotate speed (N.m/rpm)

220/1700

BrakingSystem

Service Brake

Oil brake

Park Brake

Spring energy

Electric system

24v

Special Function

Working height (m)

12

Max working radius (m)

6

Boom type

Two sections folding working boom

Rated loading in the bucket(kg)

200

Bucket size (mm)

1300*1000*1000

Rotating speed (r/min)

0-2

Rotationangle

360°

Supporting leg

four sets hydraulic legs

 Span of supporting legs

Horizontal

3500mm

longitudinal

4000mm

Boomcontrol mode

1.Bucket control

2.Manual operation

Supporting legs

Four hydraulic supporting legs with manual operation
