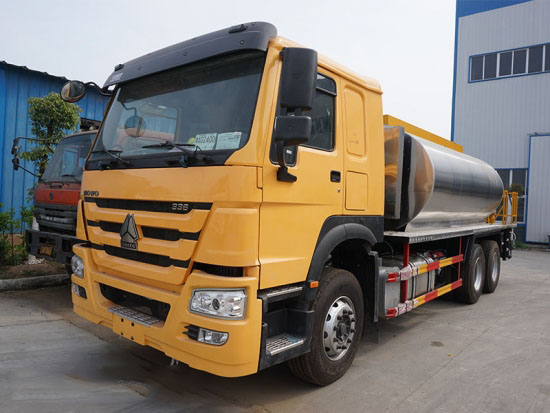

HOWO 15 ton Intelligent Asphalt Distributor Truck

Asphalt distribution truck is an intelligent high technology product, it’s a professionally spraying equipment of emulsified asphalt, diluted asphalt, hot asphalt, heavy traffic asphalt and high viscosity modified asphalt.

  • Brand:

    heritagetrucksolution.COM
  • Model No.:

    CL5252GLQZ5
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 84900
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

HOWO 15 ton Intelligent Asphalt Distributor Truck


The asphalt distribution truck is equipped with an independent auxiliary engine power system to ensure zero start spraying.Asphalt sprayer adopts a three-section folding structure, which achieve double or multiple spraying by moving the spreader up and down, and expand the spread range and avoid obstacles meanwhile moving the spreader left and right.


Quick Details


Chassis Brand

HOWO

Capacity of Asphalt Tank

15000kg

Control Type

Intelligent Control

Spray Width

4.5m

Spray amount 0.25-4L/m2


Applications


Asphalt distribution truck is widely used in highway construction and highway maintenance engineering. It can be used for the different pavements of upper and lower sealing layer, prime coat, waterproof layer, adhesive layer, asphalt surface treatment, bituminous penetration pavement, and fog sealing layer and other construction. It also can be used for transportation of liquid asphalt or other heavy oils.




Competitive Advantages


Full computer control in driving cab, only need one worker

Each nozzle is separately managed and independently controlled

Italy Riello burner indirect heating by heat transfer oils

High viscosity asphalt pump for all kinds of modified asphalt, cutback asphalt and mulsified asphalt


Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters






















Chassis specification

Item

unit

parameter

Truck model



CL5250GLQZ5

Overall dimensions

mm

10790x2480x2480

GVW

kg

Appro×25000

Mass in working order

Appro×13500

Wheel base

mm

4500+1350

Exhaust/hp

ml/hp

9726/140

Max speed

km/h

190

Tire specification

12.00

Engine type

WD615

Traction system

6×2

transmission

8speed with over drive and 1 reverse

Number of axles

2

Electric system

12V

Operation control  system

Electrically hydraulic control

Allowable passengers in cab

2

gear box description

 Mechanical gear box 5 speeds+ one rear

Engine

The truck, diesel engine, water cooled, direct injection,95 horse power











Special function

Specification

(intelligent models)

Asphalt tank Outline Dimension (mm)

4350/2300/1500

Asphalt tank Inner Dimension(mm)

4140/2090/1290

Asphalt tank Total Volume(L)

15000

Insulating layer thickness (mm)

50

Hydraulic pump

CBQ550-L

Proportional valve

EFBG-03-160-HF

Asphalt pump

QGB950

Hydraulic motor for asphalt pump

05-110-BD31

Heating System

Italian burner / Riello

Heat-transfer oil pump

25-25-160

Control System

Intelligent control , Germany STW Model

Generator

6KW gasoline engine generator

Number of nozzle

36

Spray medium

Hot asphalt/ Hot modified asphalt/ Cutback asphalt/ Emulsified asphalt

Spray width(m)

4.5

Spray amount(L/m2)

0.25-3.5L
