Asphalt distribution truck is an intelligent high technology product, it’s a professionally spraying equipment of emulsified asphalt, diluted asphalt, hot asphalt, heavy traffic asphalt and high viscosity modified asphalt.
Brand:
heritagetrucksolution.COMModel No.:
CL5160GLQZ5Minimum Order Quantity:
1 UnitPrice:
USD 67100Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

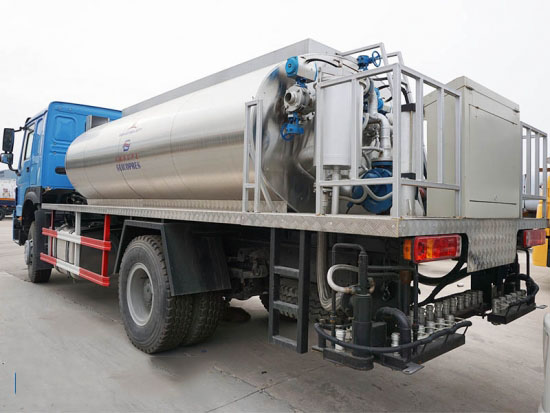

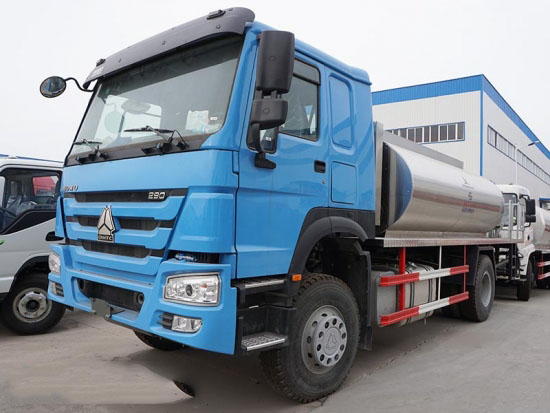

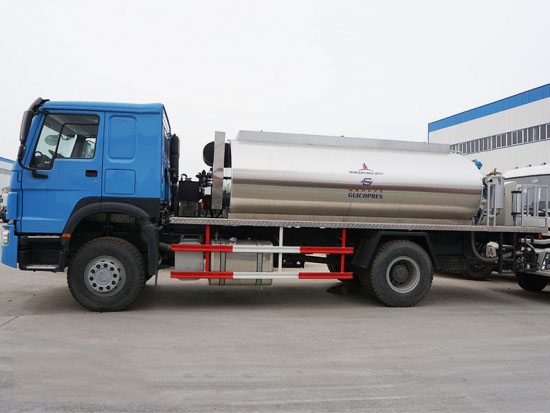

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcHOWO 10 ton Intelligent asphalt distribution truck

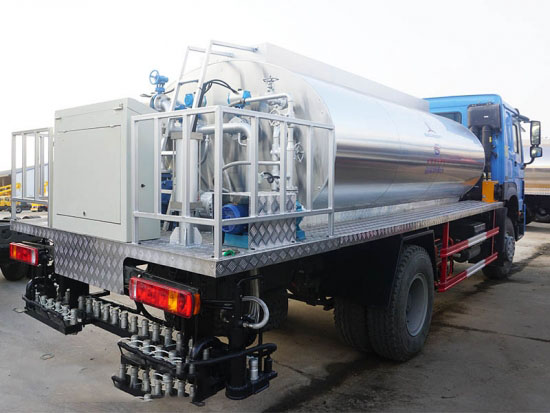

The asphalt distribution truck is equipped with an independent auxiliary engine power system to ensure zero start spraying.Asphalt sprayer adopts a three-section folding structure, which achieve double or multiple spraying by moving the spreader up and down, and expand the spread range and avoid obstacles meanwhile moving the spreader left and right.
Quick Details
|
Chassis Brand |
HOWO |
|
Capacity of Asphalt Tank |
10000kg |
|
Control Type |
Intelligent Control |
|
Spray Width |
4.5m |
| Spray amount | 0.25-4L/m2 |

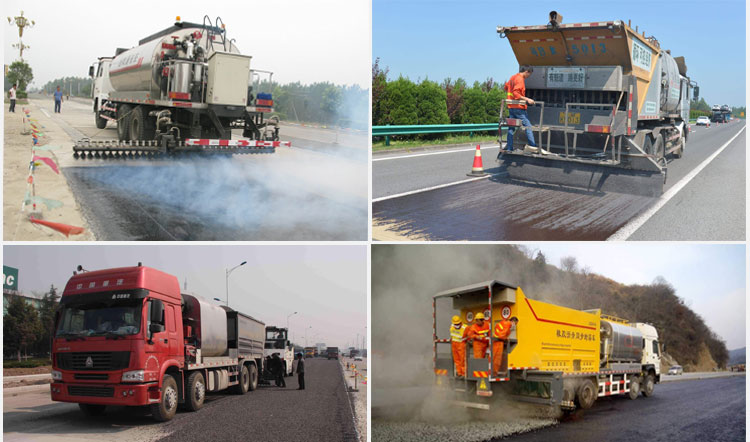

Applications
Asphalt distribution truck is widely used in highway construction and highway maintenance engineering. It can be used for the different pavements of upper and lower sealing layer, prime coat, waterproof layer, adhesive layer, asphalt surface treatment, bituminous penetration pavement, and fog sealing layer and other construction. It also can be used for transportation of liquid asphalt or other heavy oils.
|
|
|
|

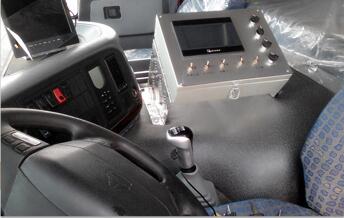

Full computer control in driving cab, only need one worker |

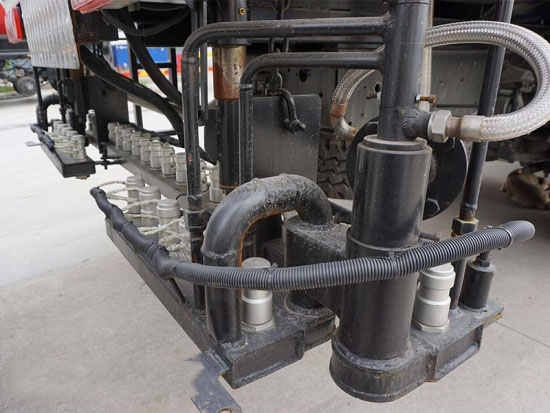

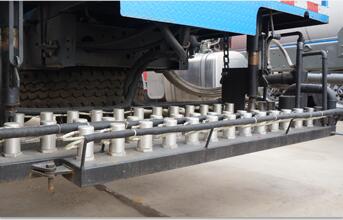

Each nozzle is separately managed and independently controlled |
|
|
|
|

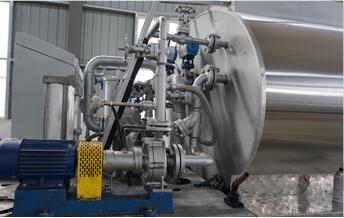

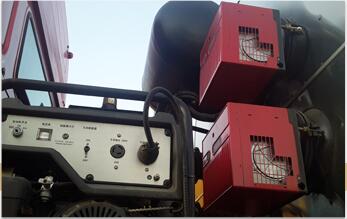

Italy Riello burner indirect heating by heat transfer oils |

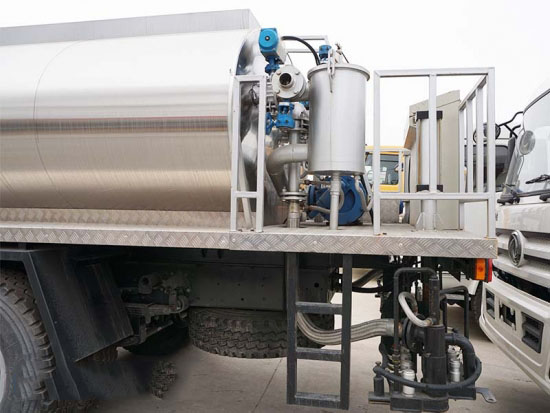

High viscosity asphalt pump for all kinds of modified asphalt, cutback asphalt and mulsified asphalt |

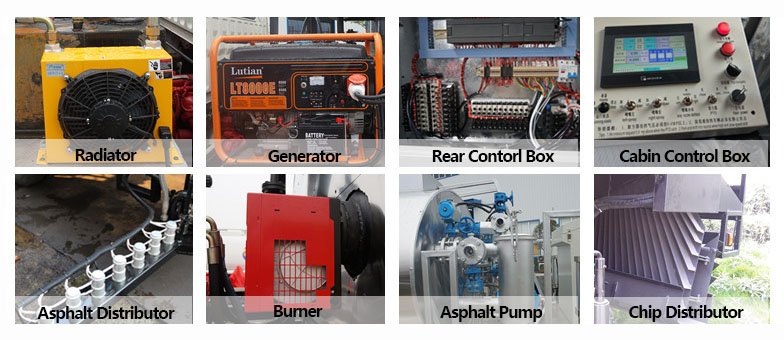

Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Chassis specification |
Item |
unit |
parameter |
||
|
Truck model |
|
CLW5160GLQZ5 |
|||
|
Overall dimensions |
mm |
8790x2480x2480 |
|||
|
GVW |
kg |
Appro×16000 |
|||
|
Mass in working order |
Appro×9200 |
||||
|
Wheel base |
mm |
4500 |
|||
|
Exhaust/hp |
ml/hp |
9726/140 |
|||
|
Max speed |
km/h |
190 |
|||
|
Tire specification |
12.00 |
Engine type |
WD615 |
||
|
Traction system |
4×2 |
transmission |
8speed with over drive and 1 reverse |
||
|
Number of axles |
2 |
Electric system |
12V |
||
|
Operation control system |
Electrically hydraulic control |
Allowable passengers in cab |
2 |
||
|
gear box description |
Mechanical gear box 5 speeds+ one rear |
||||
|
Engine |
The truck, diesel engine, water cooled, direct injection,95 horse power |
||||
|
Special function Specification (intelligent models) |
Asphalt tank Outline Dimension (mm) |
4350/2300/1500 |
|||
|
Asphalt tank Inner Dimension(mm) |
4140/2090/1290 |
||||
|
Asphalt tank Total Volume(L) |
10000 |
||||
|
Insulating layer thickness (mm) |
50 |
||||
|
Hydraulic pump |
CBQ550-L |
||||
|
Proportional valve |
EFBG-03-160-HF |
||||
|
Asphalt pump |
QGB950 |
||||
|
Hydraulic motor for asphalt pump |
05-110-BD31 |
||||
|
Heating System |
Italian burner / Riello |
||||
|
Heat-transfer oil pump |
25-25-160 |
||||
|
Control System |
Intelligent control , Germany STW Model |
||||
|
Generator |
6KW gasoline engine generator |
||||
|
Number of nozzle |
36 |
||||
|
Spray medium |
Hot asphalt/ Hot modified asphalt/ Cutback asphalt/ Emulsified asphalt |
||||
|
Spray width(m) |
4.5 |
||||
|
Spray amount(L/m2) |
0.25-3.5L |
||||
Asphalt distribution truck is an intelligent high technology product, it’s a professionally spraying equipment of emulsified asphalt, diluted asphalt, hot asphalt, heavy traffic asphalt and high viscosity modified asphalt.
Fuel tank truck is mainly used for all kinds of oil derivatives (gasoline, diesel oil, crude oil, lubricating oil and coal tar oil) transportation and storage. The truck has a variety of refuel or oil transport function according to different purpose and use of the environment.

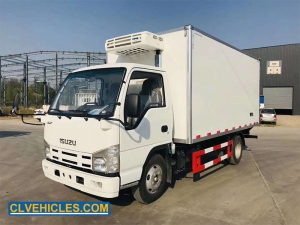

The refrigerated truck is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, insulation box, refrigeration unit and temperature recorder, etc.
The dynamic compaction equipment is an upgraded machine based on our crawler crane through exchanging the working unit.
High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.

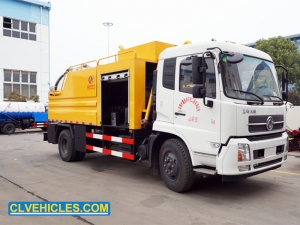

Super jet vac can be able to clear the sewer blockage area that cannot be reached by manpower,then suck the sewage water away.That means cleaning and removing sewage at one time.
