Heavy Duty Tri Axle 40Ton Removable Dump Semi Trailer

High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.

  • Brand:

    heritagetrucksolution.COM
  • Model No.:

    CL9400Z
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 24900
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

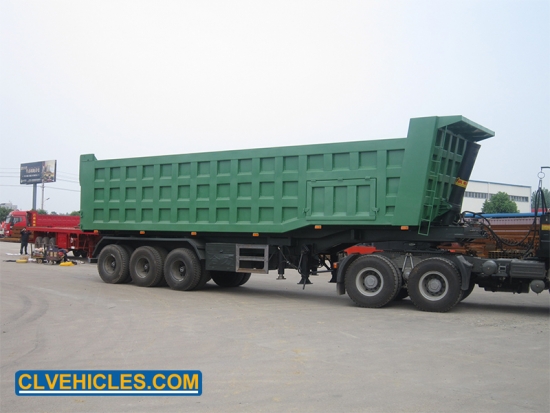

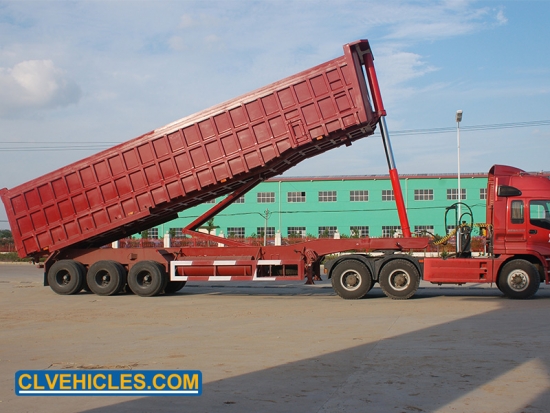

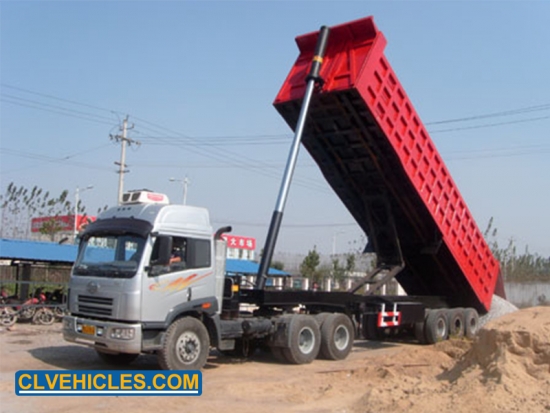

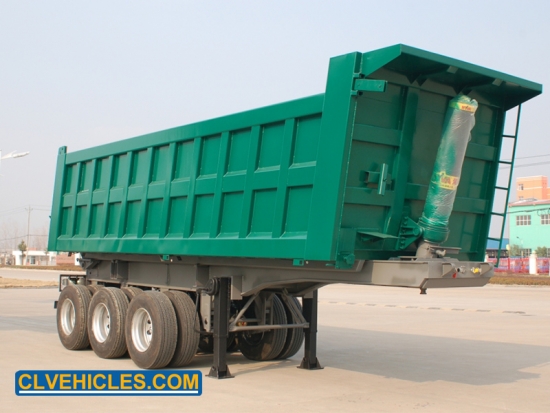

Heavy Duty Tri Axle 40Ton Removable Dump Semi Trailer


Dump trailer is hot selling products in our company apply to the transport loose cargo light, soft, with a low center of gravity and light weight, the quality of the utilization factor, carrying capacity and other characteristics


Quick Details



Semi-trailer type Tipper semi-trailer
Length 9200mm
Loading capacity 40000kg

Axle

FUWA


Applications


Dump semi trailer is used to transport of bulk cargo, coal, ore and build materials. One type belong to heavy duty dump trailer, undertake the transport of large mining and engineering task, usually matched with excavator. The other type belong to light and ordinary dump trailer, mainly undertakes the transport of sand, soil, coal and other loose goods, usually matched with wheel loader.


heritagetrucksolution.COM Semi-trailer


Competitive Advantages

1>High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.

2>The most skilled workers make welding of this flatbed trailer more frequent and strong.

3>Two pieces spare tire carriers, water tank, fuel tank etc, are optional accessories which build modern transportation.

4>We have standard side wall semi trailer which is with 3 axles and 50 tons loading capacity and 600mm height side wall. Meanwhile, we can have your trailer customized with options.



Product Details


 Semi-trailer


Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters


Product

Carbon steel dumpSemi trailer

Loading capacity

40T

Size

9200x2740x3600mm









Chassis (I beam)



Top flange plate

Material and thickness

Q345B  14mm

Bottom flange plate

Material and thickness

Q345B  16mm



     Middle flange plate

Material

Q345B

Thickness

10mm

Height

500mm



Side beam height

Type

          U steel

          Bending parts

Height





Box



        Thickness

4mm

        Height

                   1600mm

        Material

                   Q345B



Floor

        Material

                   Carbon steel Q345B

        Thickness

                   6mm

        Floor type

                   Plate









Running mechanism



















Running mechanism







       Cylinder

        HYVA  196-7300



Axle

Brand

Fuwa

   Type

13  Ton

   Number

3pcs

Rim

Type

9.00

   Number

13pcs



Tire

   Brand

Trianglebrand

   Type

12R22.5

   Number

13pcs

Suspension

Mechaniacal suspension



Spring leaf

Leaf width

90mm

Leaf thickness

16mm

Layer/set

10 Layer

King pin

   Type

Bolts type

Diameter

2  or 3.5 inch



Brake system

Air tank

45L air tanks

Brake chamber

6 double spring brake chamber

    ABS

Without



Landing gear

Brand

FUWA

Type

28T two speed





Accessories







Spare tire carrier

           2sets

Light

           LED light

Voltage

           24v

Receptacle

7 ways(7wire harness)and quick change type

Tool box

One piece

Paiting

Polyurethane paint&anti-rust primer&sand blasting

Tools for trailer

Head wrech ;spare wheel crank ; onefire extinguisher; Operation Manual
