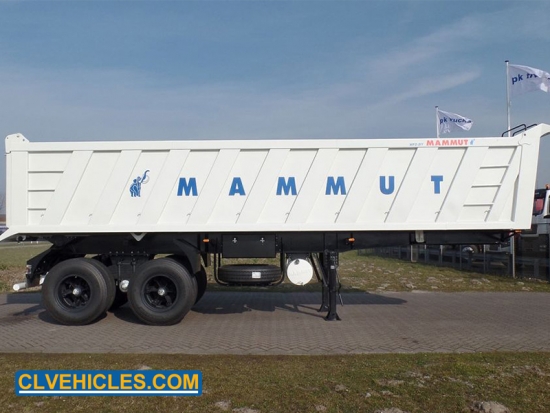

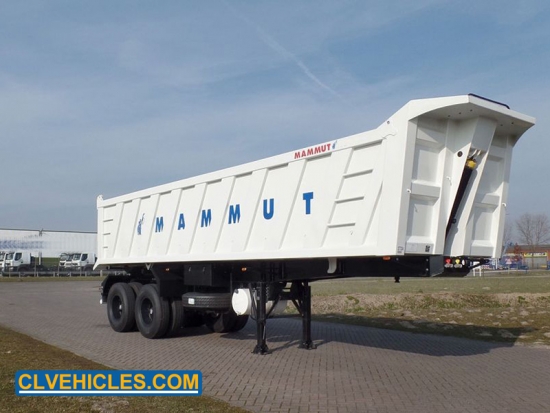

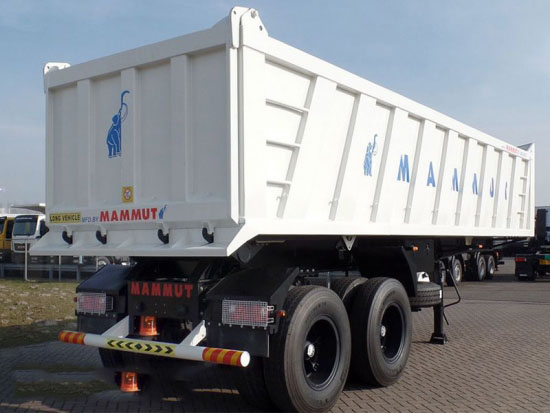

Heavy Duty Tri Axle 40Ton Removable Dump Semi Trailer
High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
Dump trailer has a simple structure, convenient disassembly and maintenance, and reduced maintenance costs
Brand:
heritagetrucksolution.COMModel No.:
CL9400Z6Minimum Order Quantity:
1 UnitPrice:
USD 19000Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcHydraulic cylinder 2 axles 40T Transport Tipper End Dump Semi Truck Trailer
The self-unloading semi-trailer, also known as the dump truck and engineering vehicle, consists of an automobile chassis, a hydraulic lifting mechanism, a suction device and a cargo compartment.
Quick Details
| Semi-trailer type | Tipper semi-trailer |
| Length | 8500mm |
| Loading capacity | 40000kg |
|
Axle |
FUWA |
Applications
Dump semi trailer is used to transport of bulk cargo, coal, ore and build materials. One type belong to heavy duty dump trailer, undertake the transport of large mining and engineering task, usually matched with excavator. The other type belong to light and ordinary dump trailer, mainly undertakes the transport of sand, soil, coal and other loose goods, usually matched with wheel loader.
1>High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.
2>The most skilled workers make welding of this flatbed trailer more frequent and strong.
3>Two pieces spare tire carriers, water tank, fuel tank etc, are optional accessories which build modern transportation.
4>We have standard side wall semi trailer which is with 3 axles and 50 tons loading capacity and 600mm height side wall. Meanwhile, we can have your trailer customized with options.
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
DIMENSIONS |
|||||||
|
Tare weight |
7800kg |
Payload |
50000 kg |
||||
|
Overall dimension(mm) |
8500*2500*3300 |
||||||
|
Chassis |
Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 12mm,width140mm;Middle Flange 6mm;bottom flange14mm,width 140mm |
||||||
|
Axle |
Number |
2 |
Brand |
Fuwa |
Capacity |
13T |
|
|
Suspension |
Mechanical suspension |
||||||
|
Leaf spring |
Leaf spring |
||||||
|
Floor |
Steel sheet 4mm thickness. 4mm |
||||||
|
Tire |
12.00R20 |
||||||
|
Wheel rim |
8.5 |
||||||
|
Kingpin |
2’’ bolt-in king pin 50 |
||||||
|
Landing gear |
28ton, manual operating ,heavy duty landing gear |
||||||
|
Dump box |
8100*2300*1500mm U-Type |
||||||
|
Vehicular applications |
Cargo transport& self-unloading |
||||||
|
Hydro cylinder |
Front oil cylinder |
||||||
|
Painting |
Complete chassis sand blasting to clean rust , 1coat of anticorrosive prime,2coats of final paint |
||||||
|
Accessories |
One standard tool box |
||||||
|
Air-charging system |
2〞main hole.2〞check valve .1.5〞safe valve.0.4Mpa.gauge |
||||||
High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.
Dump box dimensions and U-shape, box thickness, hydraulic cylinder and optional accessories are all customized by different cargo needs which build modern transportation.
Self-discharging semi-trailer is suitable for the transportation of loose bulk goods such as coal, ore and building materials.
Dump trailer adopts the rollover and the back-turning self-unloading mode, which can effectively transport the bulk goods in bulk
Dump trailer use high-strength international steel, light weight, guarantees deformation resistance (no permanent deformation), and shock resistance.

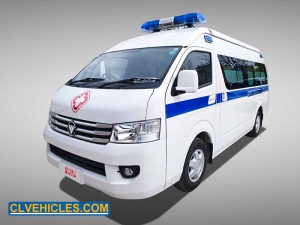

FOTON G9 ambulance install a medical cabinet on the front of medical cabinet，which can put fist aid box and other equipment, and a doctor folding chair.
