ISUZU 4x2 LHD 8M Telescopic Type Boom Lift Bucket Truck is used to provide temporary access for people or equipment to inaccessible areas, usually at height.
Brand:
heritagetrucksolution.COMModel No.:
CLW5050JGKIS8TMinimum Order Quantity:
1 UnitPrice:
USD 38000Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
ISUZU 100P 8m Insulated Hydraulic Aerial Cage Truck
ISUZU 6 Wheels LHD 8M Telescopic Type Boom Bucket Truck Equipment is a Aerial Platform Truck. It has three telescopic arms and supports people to work in 8 meters high and the arm shaft is compact,flexible and it needs small operating range, supports to work in narrow places. Four H type hydraulic supporting legs are used for the platform and have large span and good stability, which can be stretch out and draw back both independent.
Quick Details
Chassis Brand |
ISUZU |
Horsepower |
98hp |
LHD/RHD |
LHD |
Type |
Telescopic Type |
Working Height |
8 meters |
Color |
As requirements |
Applications
ISUZU 6 Wheels LHD 8M Telescopic Type Boom Bucket Truck is mainly used for municipal engineering, municipal works, streetlight repair and maintenance, garden works, hotel decoration, building engineering work, electric power works, factory, large exhibition hall etc. And it is high efficiency and great performance with good safety.
Competitive Advantages
1. It uses Japan ISUZU single row cabin chassis, the cab has advanced design with fully automatic welding manipulator ABB.
2. It is telescopic type, which supports to work in narrow places compared with folding types. The working altitude can reach to 8 meters . And the bucket loading capacity is about 200KG with non-slip body.
3. Front H and rear H legs, good stability, which can be operated at the same time or independently, and adapt to a variety of working conditions.
4. Manual controlled, automatic limit, alarming when in dangerous work, excellent safety performance.
5. Slewing mechanism adopts adjustable type, which is easy to adjust.

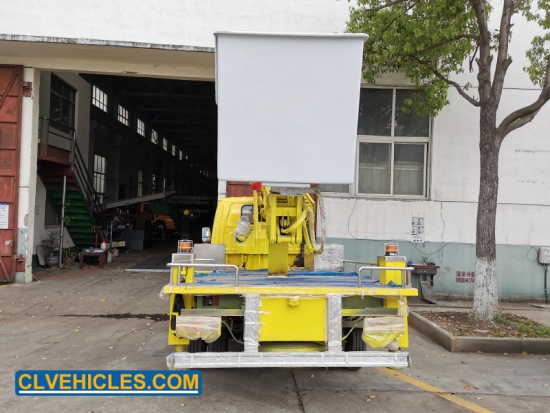

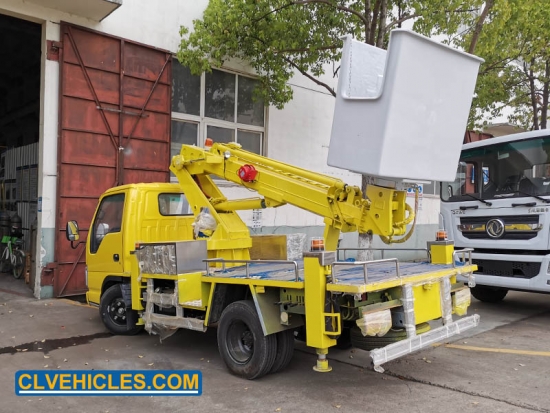

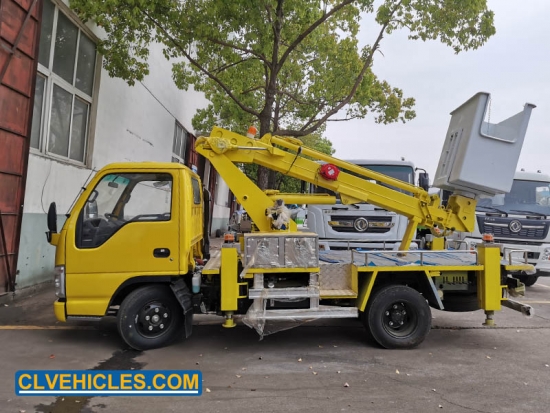

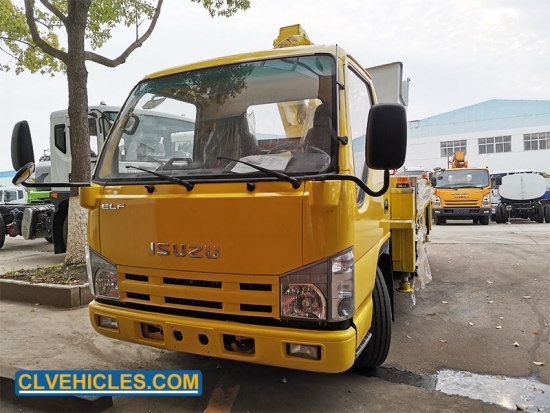

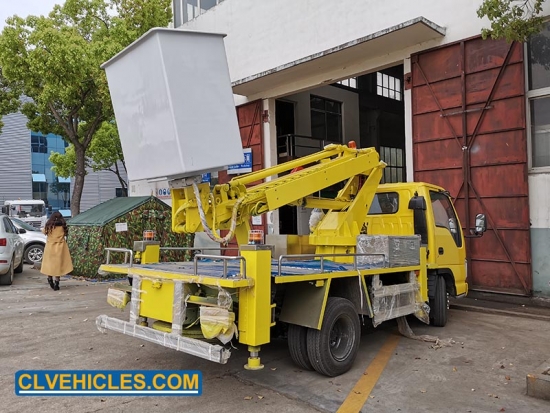

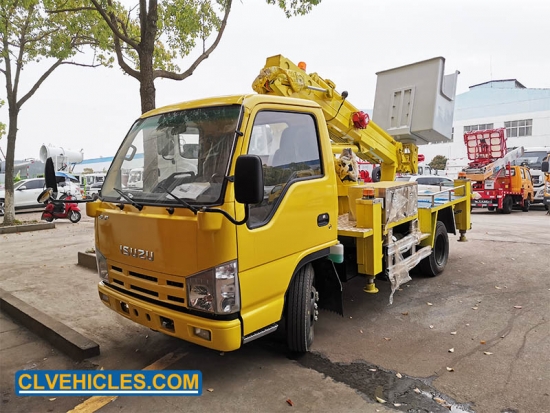

Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck According to your request, choose good chassis and refit it to truck.
Upper Body design function parts.
Customization
Spare Parts on trucks as tank and box. |
|
Product Parameters
Chassis Specification |
||||
Truck model |
CLW5050JGKIS18T |
|||
Cab |
ISUZU 100P single row seat cab |
|||
Driving Type |
4*2 Left hand driving |
|||
Max Speed (km/h) |
90 |
|||
Overall dimension (mm) |
7350*2080*2920 |
|||
GVW (kg) |
Appro. 5555 |
|||
Mass in working order( kg) |
Appro. 5335 |
|||
Wheelbase (mm) |
3360 |
|||
F/R track base (mm) |
1504/1425 |
|||
F/R overhang(mm) |
1065/2125 |
|||
Approach/Departure Angel |
27/15 |
|||
Tire |
7.00-16 |
|||
Clutch |
Single-plate dry diaphragm spring clutch |
|||
Steering |
Hydraulic steering with power assistance |
|||
Gear box |
MSB 5-speed |
|||
Bridge |
Front axle |
2.5T |
||
Rear axle |
4.8T |
|||
Engine |
Model |
4JB1CN |
||
Fuel Type |
Diesel fuel |
|||
Emission Standard |
Europe 4 |
|||
Type |
Water-cooled four-stroke, supercharged inter-cooling |
|||
Exhaust (ml) |
2771 |
|||
Max output power/rotate speed (hp /rpm ) |
98/3400 |
|||
Max torque/rotate speed (N.m/rpm) |
220/1700 |
|||
BrakingSystem |
Service Brake |
Oil brake |
||
Park Brake |
Spring energy |
|||
Electric system |
24v |
|||
Special Function |
||||
Working height (m) |
8 |
|||
Max working radius (m) |
6 |
|||
Boom type |
Two sections telescopic boom |
|||
Rated loading in the bucket(kg) |
200 |
|||
Bucket size (mm) |
1000*650*1200 |
|||
Rotating speed (r/min) |
0-2 |
|||
Rotation Angle |
360° |
|||
Supporting leg |
foursetshydraulic legs |
|||
Span of supporting legs |
Horizontal |
3500mm |
||
longitudinal |
4000mm |
|||
Boom Control mode |
1.Bucket control 2.Manual operation |
|||
Supporting leg Control mode |
Manual operation |
|||
Working Condition: |
1.Altitude: 0-4500m 2.Temperature: -350C~+450C 3.Relative humidity: 80% 4.Wind force: ≤8 degree |
