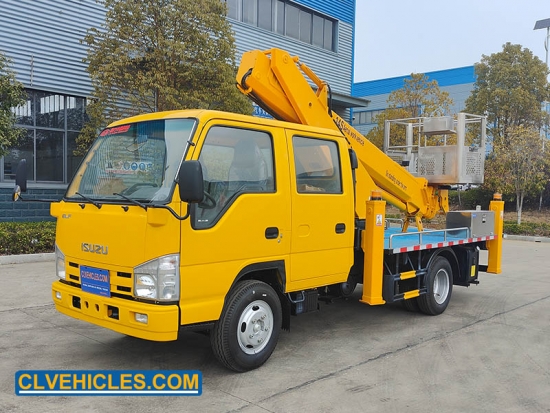

ISUZU 100P 18m Insulated Telescopic Type Aerial Platfrom Truck
ISUZU 4x2 LHD 18M Double row cabin Telescopic Type Boom Lift Bucket Truck is used to provide temporary access for people or equipment to inaccessible areas, usually at height.
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
A telescopic boom aerial work platform, commonly referred to as a telescopic boom lift or a telescopic crane truck, is a highly versatile mobile elevating work platform (MEWP) designed for a variety of aerial tasks at heights.
Brand:
heritagetrucksolution.COMModel No.:
CLW5040JGKIS1Minimum Order Quantity:
1 UnitPrice:
USD 33000Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc

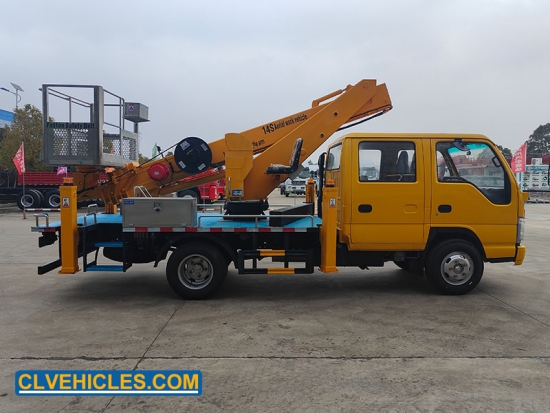

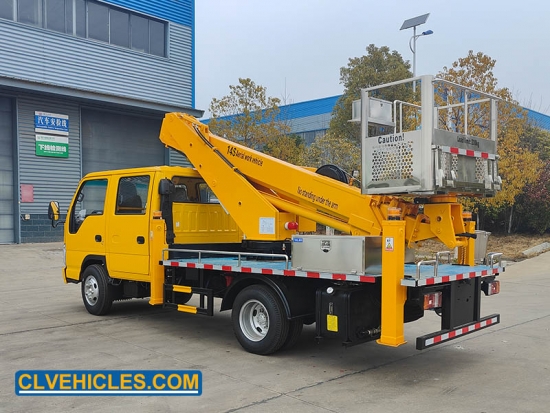

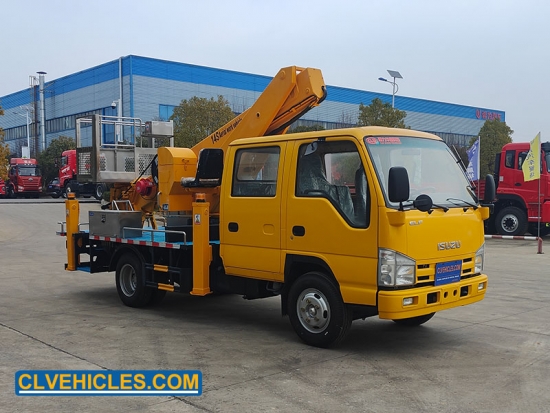

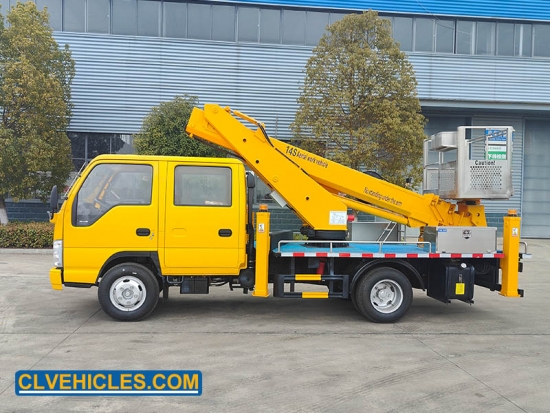

ISUZU 100P 14m Telescopic Arm Hydraulic Aerial Cage Truck

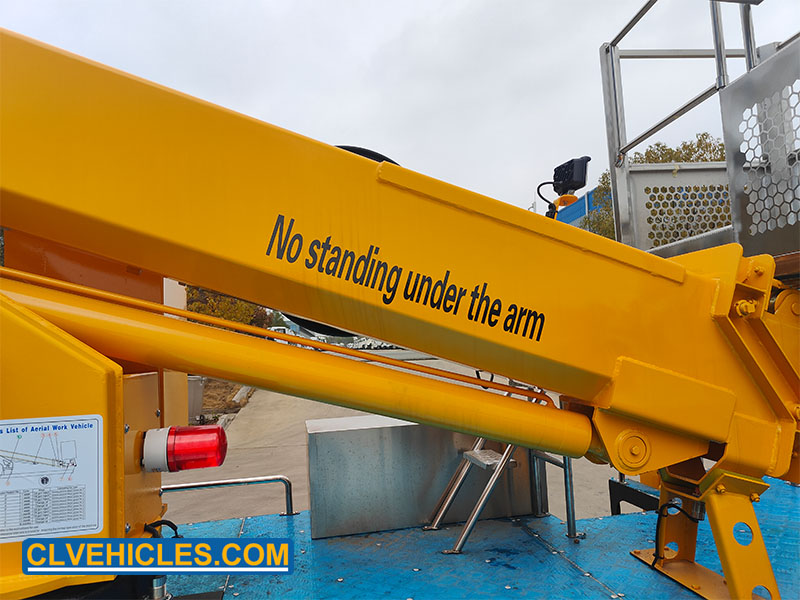

Telescoping Boom Arm: The key feature of this vehicle is its extendable boom arm, which consists of multiple nested sections that telescope out hydraulically. This allows the platform or basket to reach great heights and also to extend horizontally, providing extensive outreach capabilities and precise positioning.
Quick Details
|
Chassis Brand |
ISUZU |
|
Horsepower |
98hp |
|
LHD/RHD |
LHD |
|
Type |
Telescopic Type |
|
Working Height |
14 meters |
| Color |
As requirements |
Applications
ISUZU 6 Wheels LHD 8M Telescopic Type Boom Bucket Truck is mainly used for municipal engineering, municipal works, streetlight repair and maintenance, garden works, hotel decoration, building engineering work, electric power works, factory, large exhibition hall etc. And it is high efficiency and great performance with good safety.
Competitive Advantages
1. It uses Japan ISUZU single row cabin chassis, the cab has advanced design with fully automatic welding manipulator ABB.

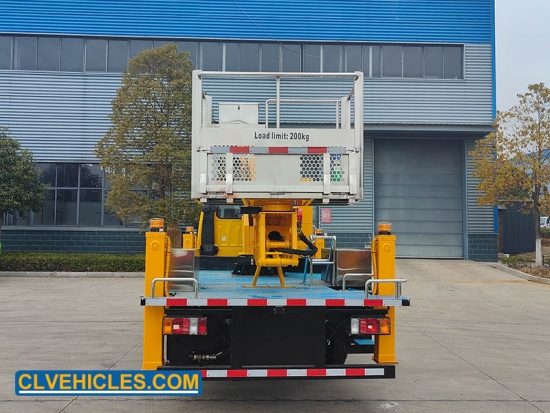

2. It is telescopic type, which supports to work in narrow places compared with folding types. The working altitude can reach to 14 meters . And the bucket loading capacity is about 200KG with non-slip body.
3. Front H and rear H legs, good stability, which can be operated at the same time or independently, and adapt to a variety of working conditions.

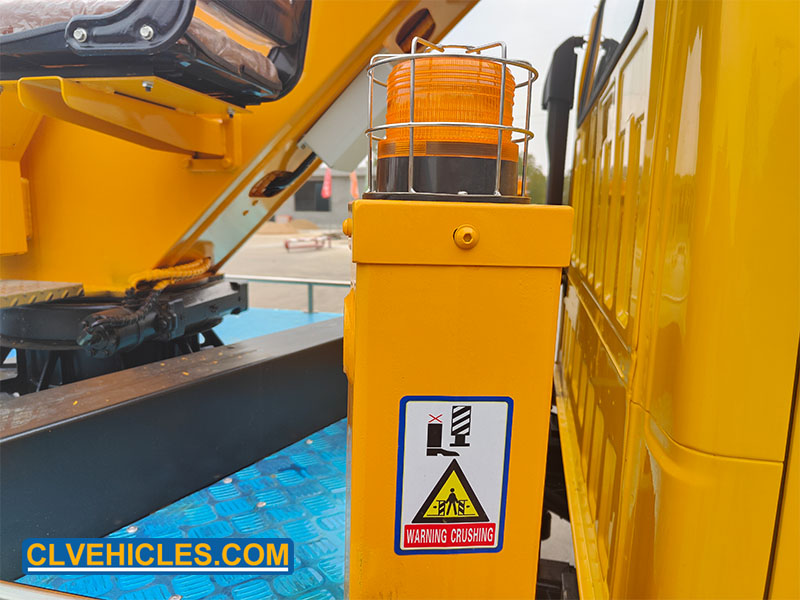

4. Manual controlled, automatic limit, alarming when in dangerous work, excellent safety performance.

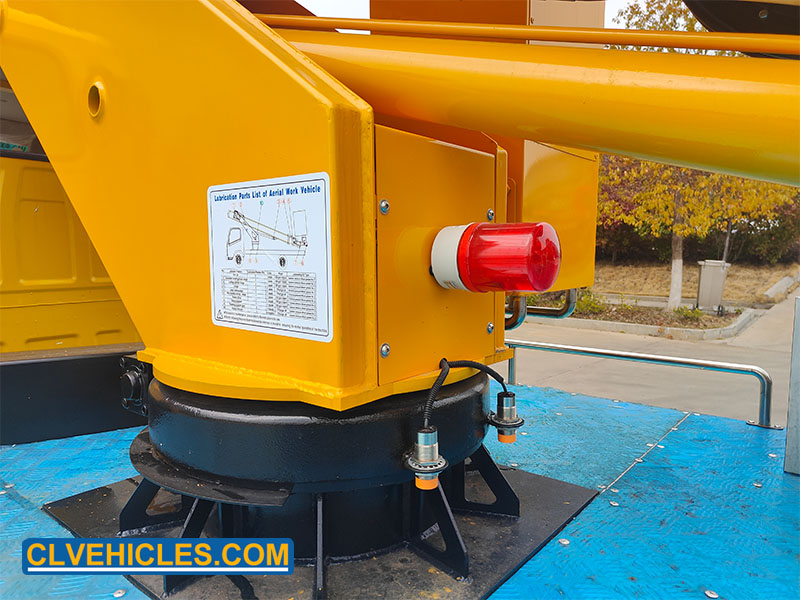

5. Slewing mechanism adopts adjustable type, which is easy to adjust.
Product Details

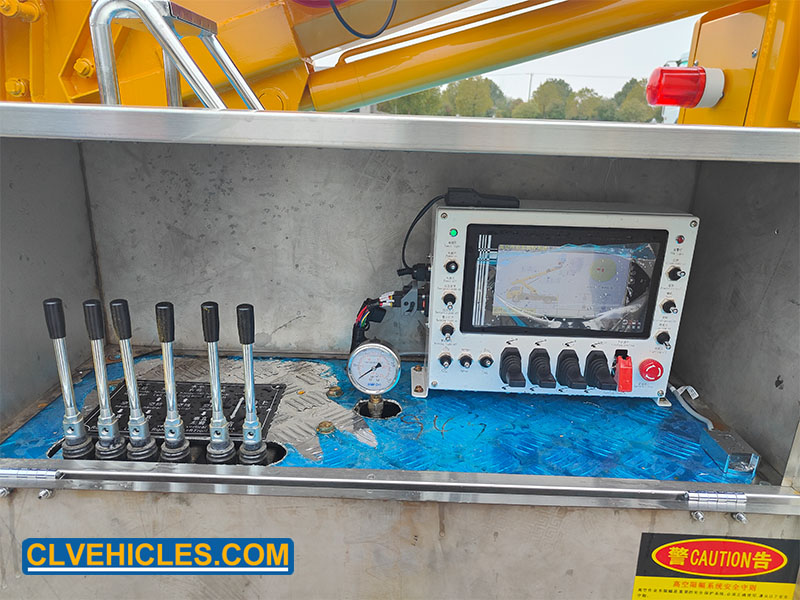

Platform Controls: The work platform usually contains controls that allow the operator to independently maneuver the boom and the platform while working at height. This ensures safe and controlled operation even when fully extended.
Durability and Power: Built with robust materials and powered by reliable diesel, electric, or hybrid engines, these machines ensure longevity and performance in varying outdoor conditions.
Stability Systems: Equipped with advanced stabilization mechanisms, the vehicle can level itself on uneven ground and remain stable during operation. Safety features include outriggers that extend to enhance stability, overload sensors, and automatic safety systems that prevent operation beyond safe limits.
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Chassis Specification |
||||
|
Truck model |
CLW5050JGKIS18T |
|||
|
Cab |
ISUZU 100P single row seat cab |
|||
|
Driving Type |
4*2 Left hand driving |
|||
|
Max Speed (km/h) |
90 |
|||
|
Overall dimension (mm) |
7350*2080*2920 |
|||
|
GVW (kg) |
Appro. 5555 |
|||
|
Mass in working order( kg) |
Appro. 5050 |
|||
|
Wheelbase (mm) |
3360 |
|||
|
F/R track base (mm) |
1504/1425 |
|||
|
F/R overhang(mm) |
1065/2125 |
|||
|
Approach/Departure Angel |
27/15 |
|||
|
Tire |
7.00-16 |
|||
|
Clutch |
Single-plate dry diaphragm spring clutch |
|||
|
Steering |
Hydraulic steering with power assistance |
|||
|
Gear box |
MSB 5-speed |
|||
|
Bridge |
Front axle |
2.5T |
||
|
Rear axle |
4.8T |
|||
|
Engine |
Model |
4JB1CN |
||
|
Fuel Type |
Diesel fuel |
|||
|
Emission Standard |
Europe 4 |
|||
|
Type |
Water-cooled four-stroke, supercharged inter-cooling |
|||
|
Exhaust (ml) |
2771 |
|||
|
Max output power/rotate speed (hp /rpm ) |
98/3400 |
|||
|
Max torque/rotate speed (N.m/rpm) |
220/1700 |
|||
|
BrakingSystem |
Service Brake |
Oil brake |
||
|
Park Brake |
Spring energy |
|||
|
Electric system |
24v |
|||
|
Special Function |
||||
|
Working height (m) |
14 |
|||
|
Max working radius (m) |
8 |
|||
|
Boom type |
Three sections telescopic boom |
|||
|
Rated loading in the bucket(kg) |
200 |
|||
|
Bucket size (mm) |
1000*650*1200 |
|||
|
Rotating speed (r/min) |
0-2 |
|||
|
Rotation Angle |
360° |
|||
|
Supporting leg |
foursetshydraulic legs |
|||
|
Span of supporting legs |
Horizontal |
4000mm |
||
|
longitudinal |
4000mm |
|||
|
Boom Control mode |
1.Bucket control 2.Manual operation |
|||
|
Supporting leg Control mode |
Manual operation |
|||
|
Working Condition: |
1.Altitude: 0-4500m 2.Temperature: -350C~+450C 3.Relative humidity: 80% 4.Wind force: ≤8 degree |
|||

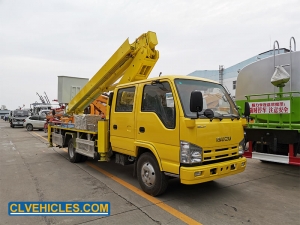

ISUZU 4x2 LHD 18M Double row cabin Telescopic Type Boom Lift Bucket Truck is used to provide temporary access for people or equipment to inaccessible areas, usually at height.
